Bosch Clic Quick Change Template Guide
|
Bosch Clic Quick Change Template Guide
|
|
Select Product Options Here
| Template Guide: |
|
Detailed Description

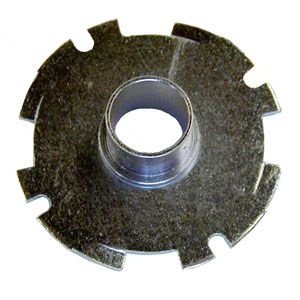

Bosch Clic Quick Change Template Guide
Bosch's “Clic” quick-connect template guides mount in compatible routers quickly and without tools. Bits should be at least 1/16" smaller than the inside diameter (ID) of the guide.
Compatible Bosch Router Models
- 1613
- 1613EVS
- 1614
- 1614EVS
- 1617 - with RA1126 adapter
- 1617EVS - with RA1126 adapter
- 1618 - with RA1126 adapter
- 1618EVS - with RA1126 adapter
- 1619EVS - with RA1126 adapter
- MR23A Series - with RA1126 adapter
- Colt Palm Router - with PR011 Plunge Base or PR009 Sub-base
| Template Guide |
Outside
Diameter (OD) |
Inside
Diameter (ID) |
Length
Protrusion below sub-base |
Notes |
RA1103 |
5/16" |
17/64" |
9/64" |
|
RA1105 |
7/16" |
3/8" |
9/64" |
|
RA1107 |
7/16" |
3/8" |
5/16" |
Short guide for use with Leigh
and other dovetail jigs. |
RA1109 |
1/2" |
13/32" |
7/16" |
|
RA1111 |
5/8" |
17/32" |
3/16" |
Short guide for use with Leigh
and other dovetail jigs. |
RA1113 |
5/8" |
17/32" |
1/2" |
|
RA1115 |
3/4" |
21/32" |
3/16" |
|
RA1117 |
13/16" |
5/8" |
31/64" |
|
RA1119 |
1" |
25/32" |
31/64" |
|
RA1121 |
1-3/8" |
1-19/64" |
7/16" |
Primarily used when routing for
hinges with 5/8" radius corners. |
Product Warnings
 WARNING FOR RESIDENTS OF CALIFORNIA!
This product may expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Please read our Proposition 65 warning.
For more information, see www.P65Warnings.ca.gov.
|
