Starrett Pro-Site Miter Protractor

From $35.00
Shipping calculated at checkout.
Protractor

Satisfaction Guarantee

If for any reason you are not satisfied with any stock item purchased from Highland Woodworking, return it to us within 60 days of receipt (30 days for Festool tools) and we will promptly replace it or refund the purchase price of that item, according to your preference.

Click for more information.

Shipping & Delivery

Orders are processed soon after receipt and are usually shipped within 2 business days via FedEx ground or US Mail, depending on location and weight.

We do not ship combustible materials by air.

If we are out of stock on an item, we will either back order or cancel that item according to any special instructions entered with your order or our ability to source the product.

Visit our complete Shipping Information Page for more detailed information.

California Customers - Prop 65 Warning

This product may expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, see www.P65Warnings.ca.gov.

Did you find an error on this page?

We have made every effort to ensure our product pages are accurate and fully functioning. However, even we may miss something! If you see an error, please email us at feedback@highlandwoodworking.com. Include a link to the page, or the SKU number of the product, and short description of what’s wrong and we will address it. Thank you!

Cutting miters accurately is always a challenge. Each time you measure a wall angle and calculate a saw setting, there's potential for error. Starrett's Pro-Site Miter Protractors take the angle calculations out of cutting inside and outside miters, angled butt joints and crown molding. They'll help you create perfect joints every time.

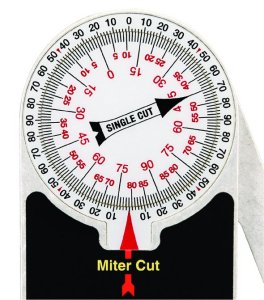

Closeup of Starrett 505-series Dial
Starrett 505-series Dial
Basic 505-Series Protractors

All three models of the basic 505-series protractors are functionally the same. For cutting a simple miter or angle joint, the saw settings are directly on the tool - use the inside scale & outside arrow for miters and the outside scale & inside arrow for single cuts. If you're cutting crown molding flat on the table of a sliding compound miter saw, measure the angle and use the provided guide chart to set the bevel and miter angles.

What are the differences between the 505-series models then?

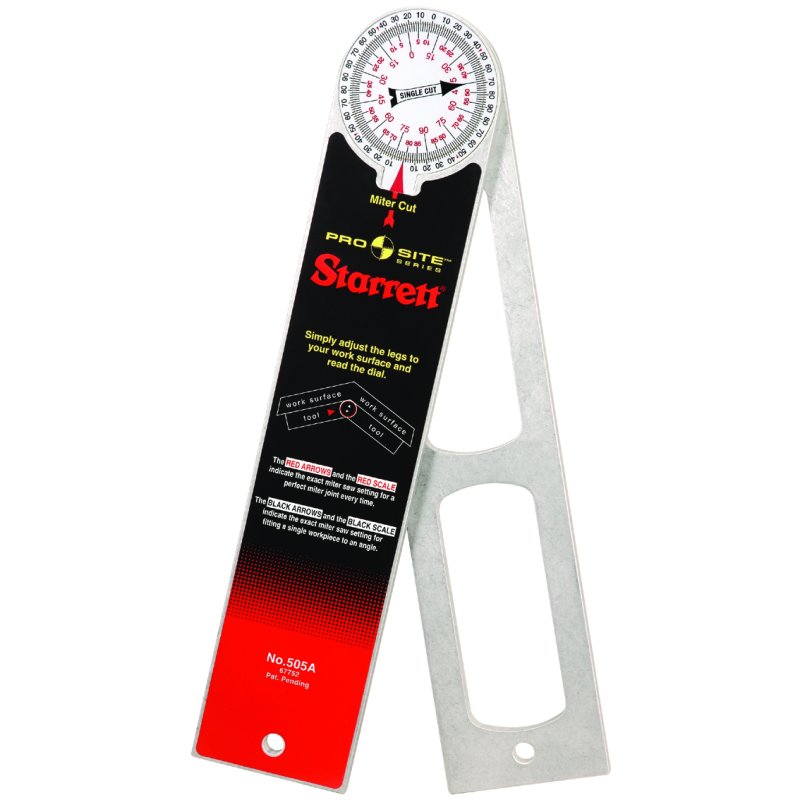

  • The 505A-12 is a hefty 12" long by 2-1/2" wide by 1/4" thick chunk of aluminum (each leg). It will stand up to the rigors of just about any jobsite. It's made in the USA.

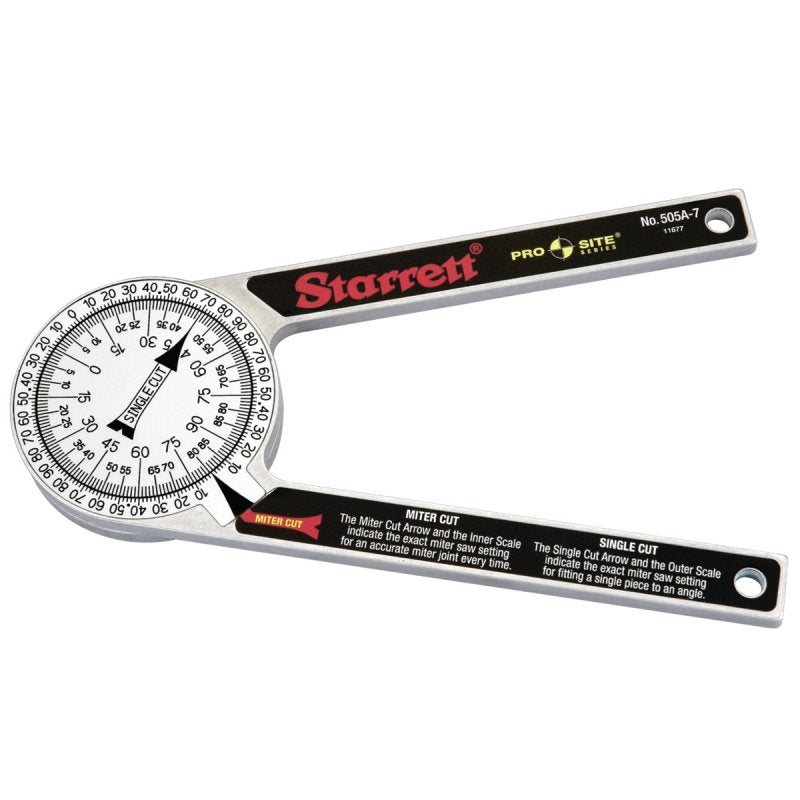

  • The 505A-7 is also aluminum, but it's only 7" long. It's just as tough as its bigger brother, but it's small enough to fit in your apron pocket. It's made in the USA.
  • The 505P-7 is plastic version of the 505A-7. It fits nicely in your pocket, but probably won't stand up to the tough environment of a jobsite. It's perfect for the home woodworker or DIY home improver. It's made in China.

See the video below for a demonstration of this protractor.

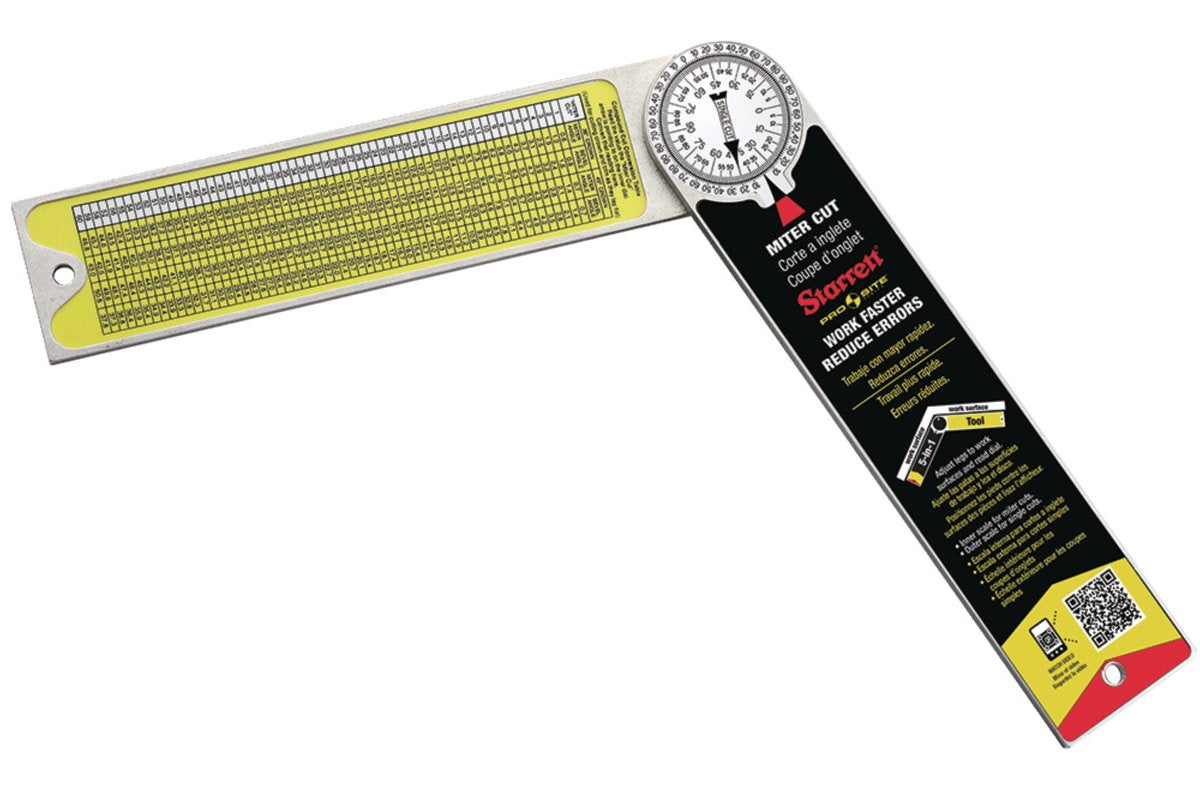

CP505A-12 5-in-1 Protractor

The CP505A-12 is an improved version of the basic 505A-12. Made from aluminum in the USA, it's also 12" long. It does all of the same things that the 505A-12 does, but has added these features.

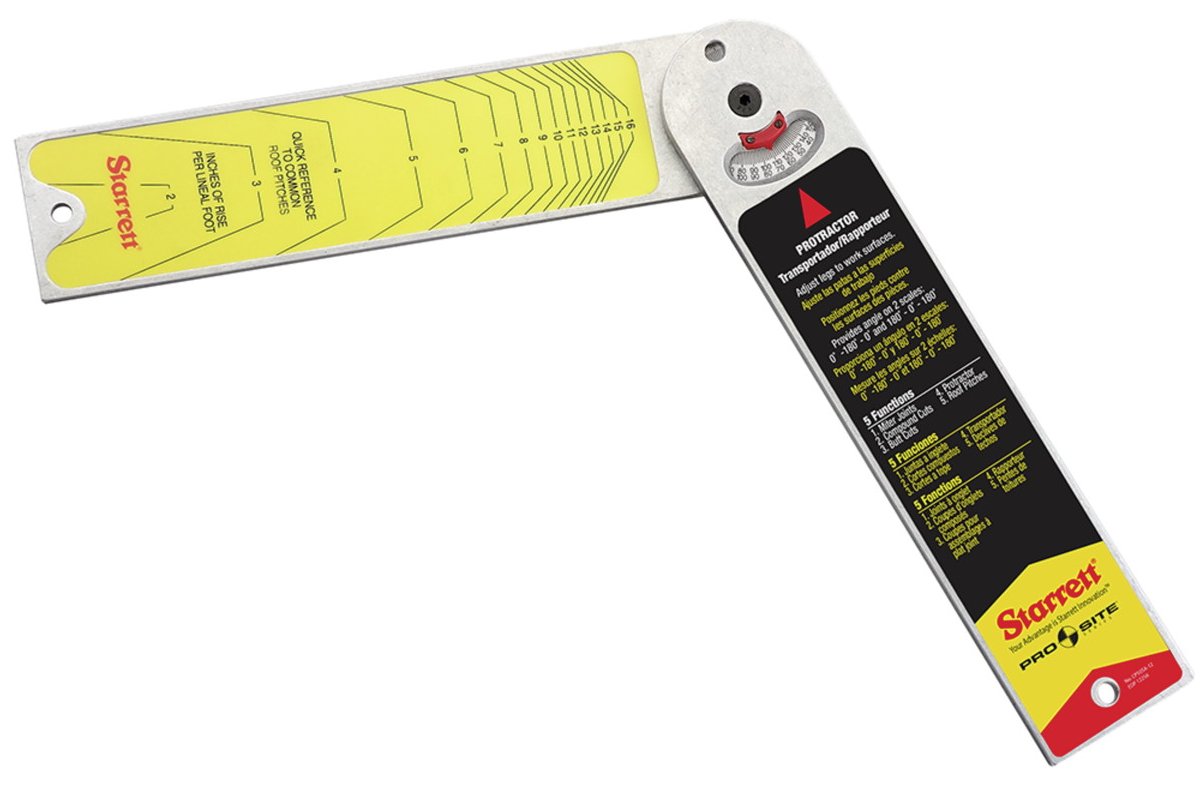

  • The back has an additional protractor that reads 0°-180°-0° & 180°-0°-180°.
  • The crown molding chart is mounted on the inside leg of the protractor so you can never misplace it.
  • The inside of the other leg also includes a quick reference guide for setting standard roof pitches.

Additional Information

Starrett Crown Molding Guide for the 505A-12, 505A-7 & 505P-7

Starrett Crown Molding Guide for the CP505A-12
