Magswitch MagJig

Magswitch MagJig Magnetic Workhold Clamp

Magswitch MagJigs use an ingenious rare earth magnetic device to tenaciously attach themselves to any cast iron or steel machine surface. In the off position, the polarity of two stacked magnets oppose each other allowing the device to be moved to any position. Rotate the switch to the on position, and the magnets align and activate to stick themselves to your tabletop.

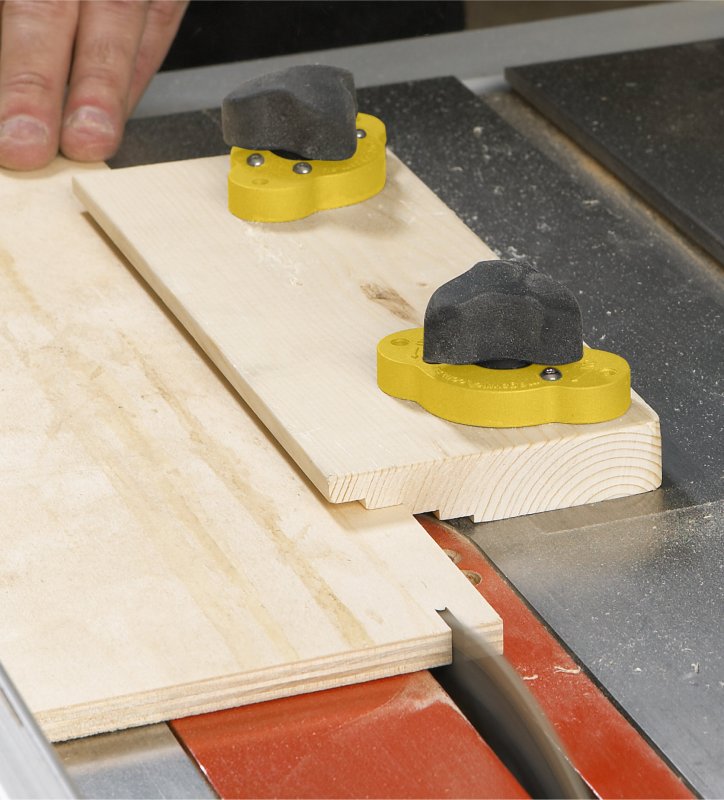

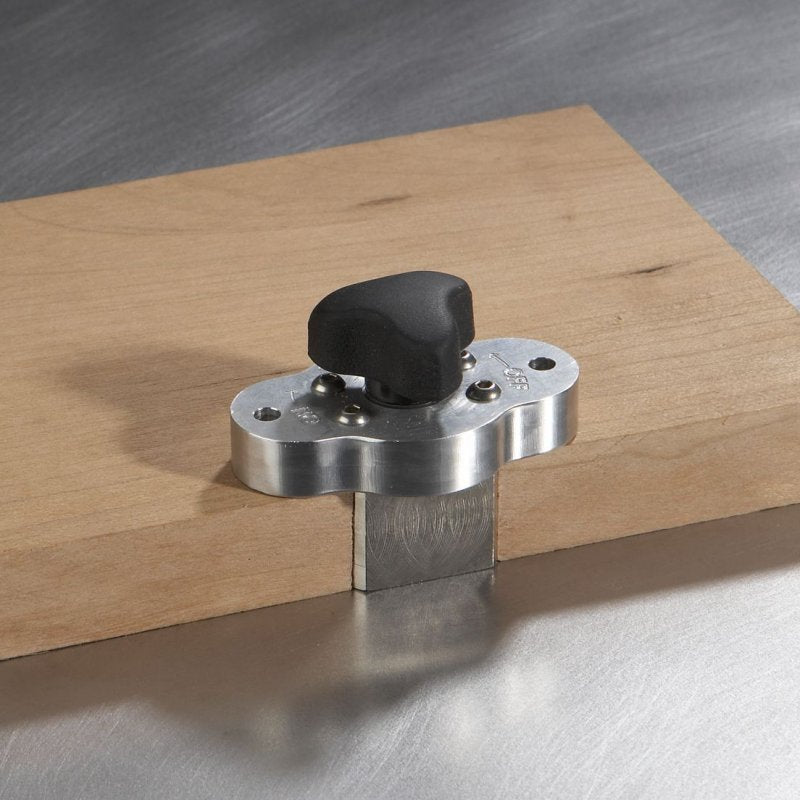

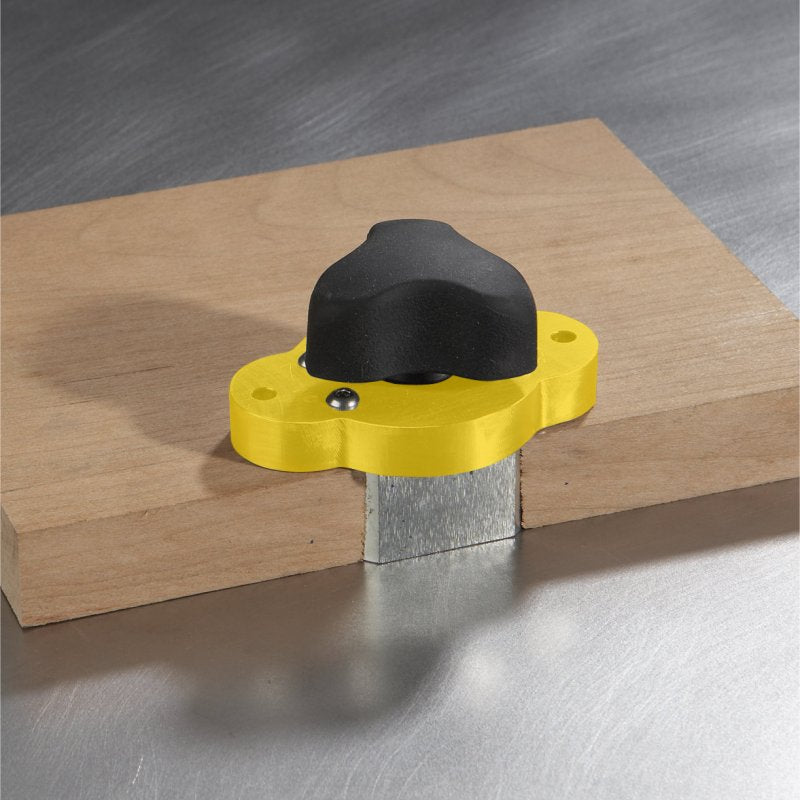

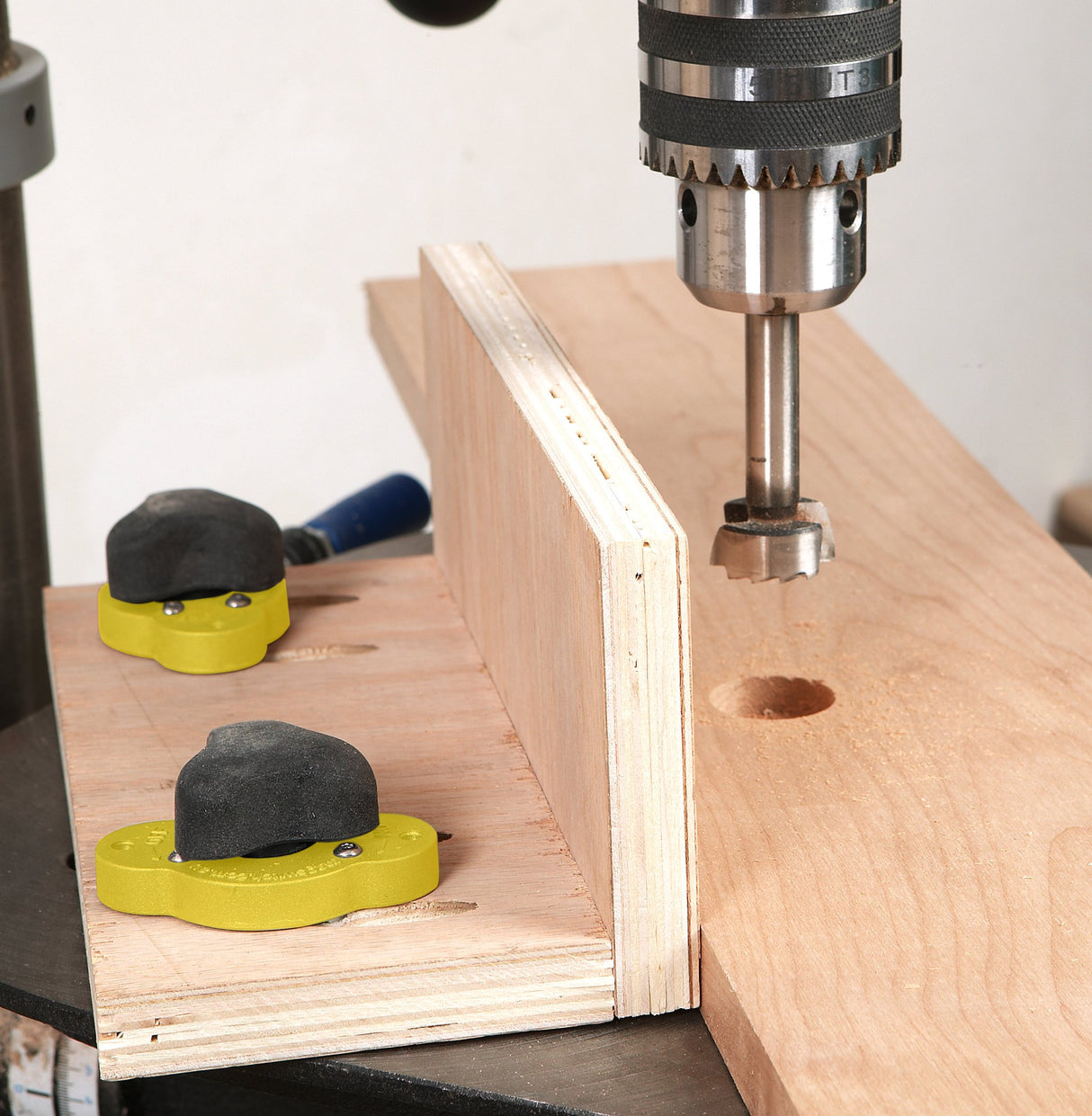

MagJigs can be used with the Magswitch Workholding System Universal Base or to hold shop-made jigs. When making a shop made jig, just drill a hole (see the specs below for the mounting hole size), drop the MagJig in place and secure it with screws.

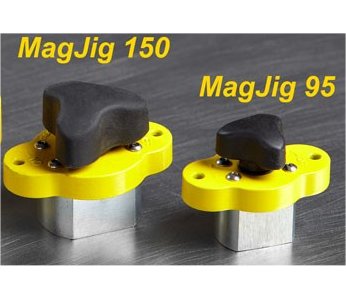

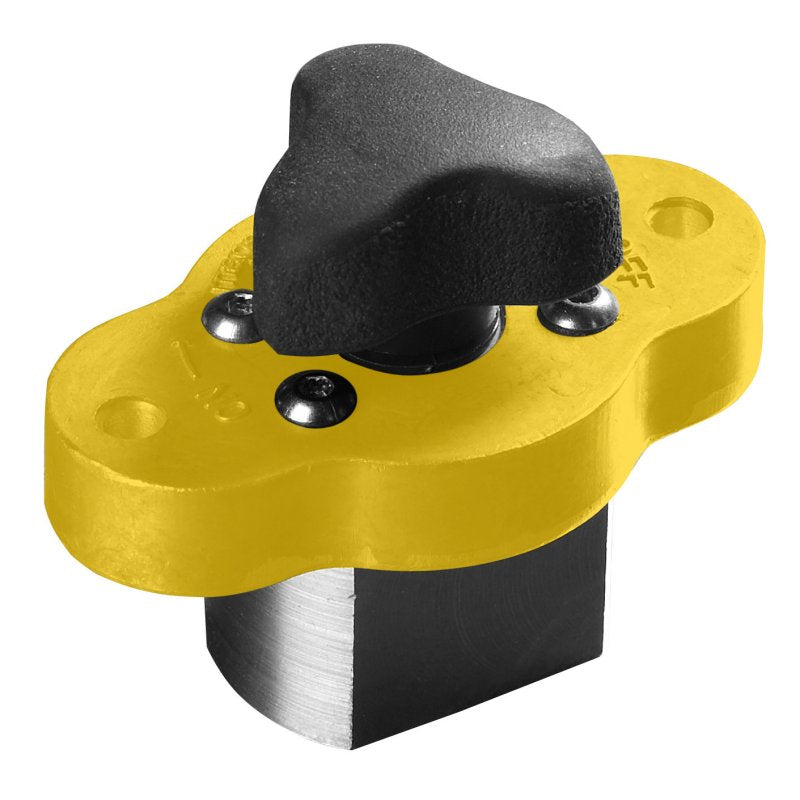

MagJig 95 Specifications

• Breakway Force — 95 lbs (43kg)
• Mounting Hole 30mm
• Mounting Thickness
• Overall Height 1.8" (45mm)

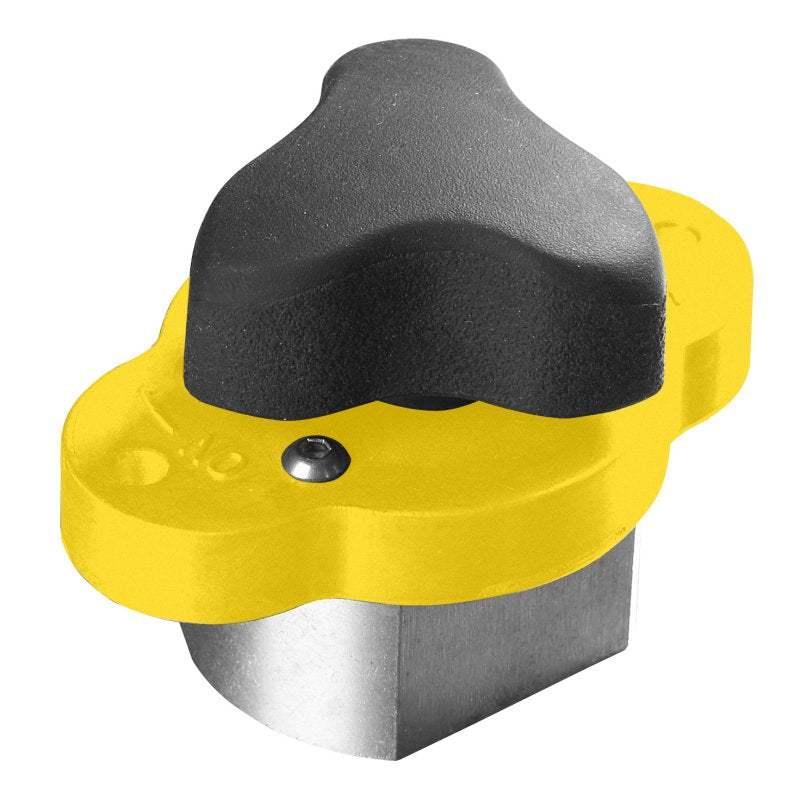

MagJig 150 Specifications

• Breakway Force — 150 lbs (68kg)
• Mounting Hole 40mm
• Mounting Thickness
• Overall Height 2.1" (52mm)

In the video below, the MagJigs are described using their old names. The 20mm MagJig is now called the MagJig 95. The 30mm MagJig is now called the MagJig 150.
