Benchcrafted Moxon Vise Hardware

Benchcrafted Moxon Vise Hardware

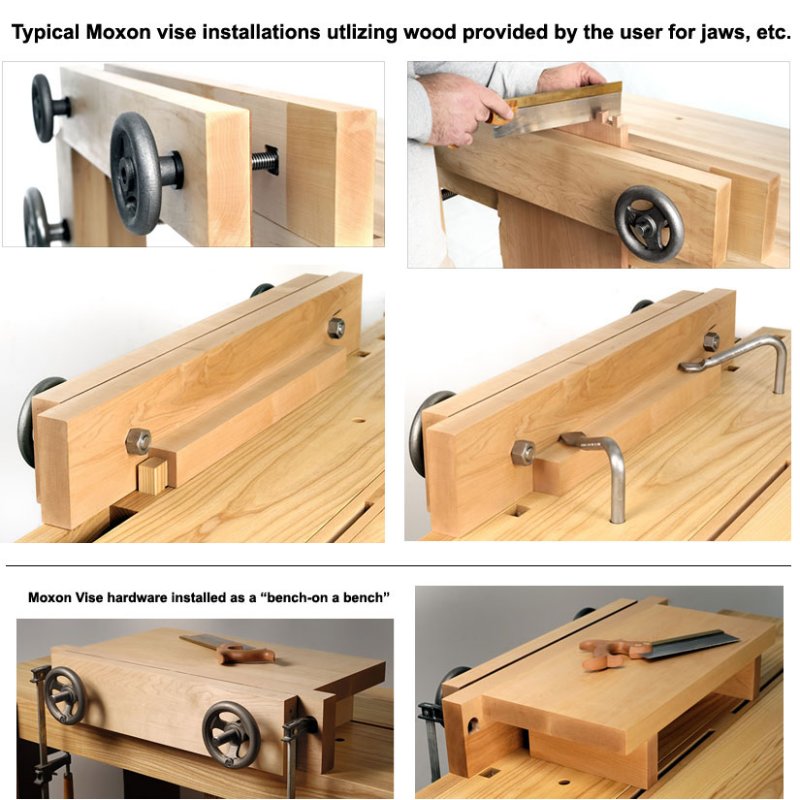

The Benchcrafted Moxon vise is designed to clamp to any workbench as a way of holding workpieces at the ideal height for sawing dovetails and other joints in the end of a workpiece. We offer the Benchcrafted hardware with which you can build your own Moxon vise by adding the vise jaws and means of attachment to your bench from wood that you provide.

The Benchcrafted Moxon vise uses the same precision rolled acme screws as Benchcrafted's famous Tail Vise and Glide Leg Vise. As on those vises, the mass of the cast iron hand wheels combined with the bench screws' polished acme threads allow the hand wheels to spin freely, drawing the jaws together effortlessly for rapid, easy adjustment. The hardware is manufactured entirely in the USA.

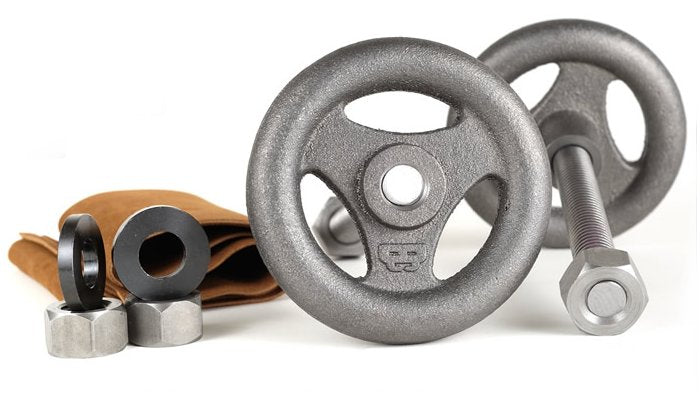

The Benchcrafted hardware consists of two 5" cast iron hand wheels tapped for 3/4" x 8 tpi, two 8" precision rolled carbon steel acme screws, four 3/4" x 8 tpi nuts, and a piece of crubber (rubberized cork) to mount on the inside of the movable jaw for an absolutely firm grip.

Kit Contents

• Two Cast Iron Handwheels
• Two 8" carbon steel acme-threaded screws
• Four 3/4" x 8 tpi nuts
• One piece of crubber (rubberized cork)
• Please Note: Instructions are NOT included, but can be downloaded below.

Additional Information

Complete illustrated instructions for building your own Moxon vise.

To learn more, read Jeffrey Fleisher's Tool Review on the Benchcrafted Moxon Vise Hardware.
