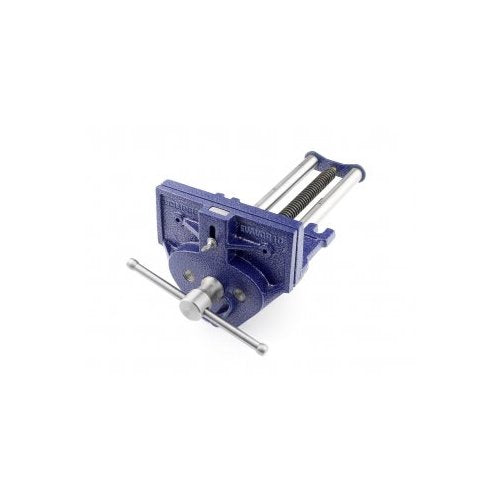

Eclipse Quick Release Bench Vise

From $136.50
Shipping calculated at checkout.
Size

Satisfaction Guarantee

If for any reason you are not satisfied with any stock item purchased from Highland Woodworking, return it to us within 60 days of receipt (30 days for Festool tools) and we will promptly replace it or refund the purchase price of that item, according to your preference.

Click for more information.

Shipping & Delivery

Orders are processed soon after receipt and are usually shipped within 2 business days via FedEx ground or US Mail, depending on location and weight.

We do not ship combustible materials by air.

If we are out of stock on an item, we will either back order or cancel that item according to any special instructions entered with your order or our ability to source the product.

Visit our complete Shipping Information Page for more detailed information.

California Customers - Prop 65 Warning

This product may expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, see www.P65Warnings.ca.gov.

Did you find an error on this page?

We have made every effort to ensure our product pages are accurate and fully functioning. However, even we may miss something! If you see an error, please email us at feedback@highlandwoodworking.com. Include a link to the page, or the SKU number of the product, and short description of what’s wrong and we will address it. Thank you!

This vise works smoothly and powerfully. Chrome-plated solid steel guide rods are fitted precisely into the castings, sliding easily with no racking or binding. The vise jaws toe in markedly at the top, guaranteeing positive hold no matter how forcefully the screw is tightened.

Hefty vise jaws have screw holes that make it easy to mount wooden jaw liners up to 3" wider than the cast iron jaws. An adjustable plastic dog is housed in the outer jaw. A chrome-plated steel drop handle lets you apply all the pressure your work can handle.

Specifications

7 inch Quick Release Vise
  • Jaw Width: 183mm (7-3/16")
  • Jaw Height: 3"
  • Maximum Opening: 206mm (8")
  • Handle Length: 7-1/2"
  • Weight: 9kg (19.95 lbs)
  • Underbench Depth: 11-1/2" 1
  • Underbench Width: 7-1/8" 2
  • Underbench Height: 3-5/8" 3
  • Minimum Bench Thickness: 2-3/8" 4
9 inch Quick Release Vise
  • Jaw Width: 232mm (9-1/8")
  • Jaw Height: 4-1/16"
  • Maximum Opening: 260mm (10-3/16")
  • Handle Length: 9-1/2"
  • Weight: 15.5 kg (34 lbs)
  • Underbench Depth: 16" 1
  • Underbench Width: 8-5/8" 2
  • Underbench Height: 4-1/4" 3
  • Minimum Bench Thickness: 3-1/2" 4
10-1/2 inch Quick Release Vise
  • Jaw Width: 270mm (10-1/2")
  • Jaw Height: 4-1/16"
  • Maximum Opening: 386mm (15-13/16")
  • Handle Length: 10"
  • Weight: 17kg (34.5 lbs)
  • Underbench Depth: 21" 1
  • Underbench Width: 10-3/8" 2
  • Underbench Height: 4" 3
  • Minimum Bench Thickness: 3-1/2" 4

Metric measurements are precise manufacturer's specifications. Inch measurements are approximate.

1 — Underbench Depth is the front-to-back clearance required under the bench for the vise mechanism. (Measured from the front edge of the bench.)

2 — Underbench Width is the left-to-right clearance required under the bench for the vise mechanism.

3 — Underbench Height is the top-to-bottom clearance required under the bench for the vise mechanism. (Measured from the bottom edge of the bench.)

4 — Minimum Bench Thickness is the minimum benchtop thickness required for the top edge of the vise to be even with the work surface of the bench. If your bench is not this thick, you can add material to the bottom of the bench.

Additional Information

Bench Vise Mounting Instructions
