Leigh Isoloc Templates

From $199.99
Shipping calculated at checkout.
Leigh Jig
Pattern

Satisfaction Guarantee

If for any reason you are not satisfied with any stock item purchased from Highland Woodworking, return it to us within 60 days of receipt (30 days for Festool tools) and we will promptly replace it or refund the purchase price of that item, according to your preference.

Click for more information.

Shipping & Delivery

Orders are processed soon after receipt and are usually shipped within 2 business days via FedEx ground or US Mail, depending on location and weight.

We do not ship combustible materials by air.

If we are out of stock on an item, we will either back order or cancel that item according to any special instructions entered with your order or our ability to source the product.

Visit our complete Shipping Information Page for more detailed information.

California Customers - Prop 65 Warning

This product may expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, see www.P65Warnings.ca.gov.

Did you find an error on this page?

We have made every effort to ensure our product pages are accurate and fully functioning. However, even we may miss something! If you see an error, please email us at feedback@highlandwoodworking.com. Include a link to the page, or the SKU number of the product, and short description of what’s wrong and we will address it. Thank you!

Leigh Industries' Isoloc Templates are accessory joint cutting templates for Leigh's Dovetail jigs. There are a total of 6 joint designs, with all of the designs being amazingly easy to cut. If you've ever cut half-blind dovetails on a fixed jig, you've already done more complicated work than Isoloc templates will require. The precision-machined aluminum templates fit on Leigh dovetail jigs, with no modification required. All you'll need is a 5/16" straight router bit. Leigh recommends rigid, clean-cutting solid carbide up-cut spiral bits.

Template Guide

The template guide used with Isoloc's is provided with the templates, and it's one of the system's strong points. It's Leigh's Variable Guidebush System, which allows built-in fine tuning of joint tightness. The turret of the nominal 1/2" template guide is milled to a 5-degree taper, so rotating the threaded turret within its mounting flange can increase or decrease its effective size in increments of less than .001", allowing quick and easy tuning to fit any bit. VGS template guides fit any standard Porter-Cable, Black & Decker or DeWalt style router base, and can be fitted to other routers using the Leigh adapters listed separately.

Joint Patterns

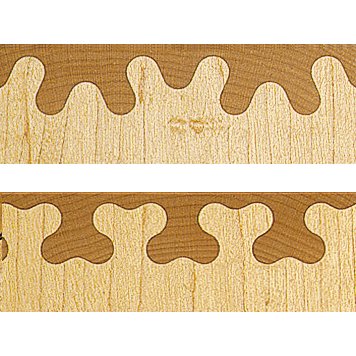

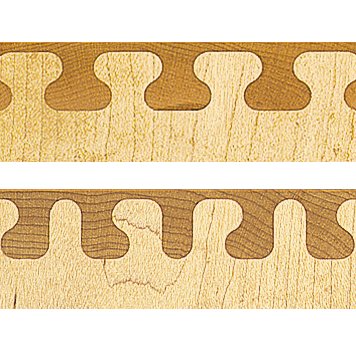

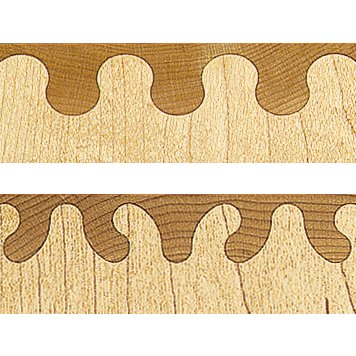

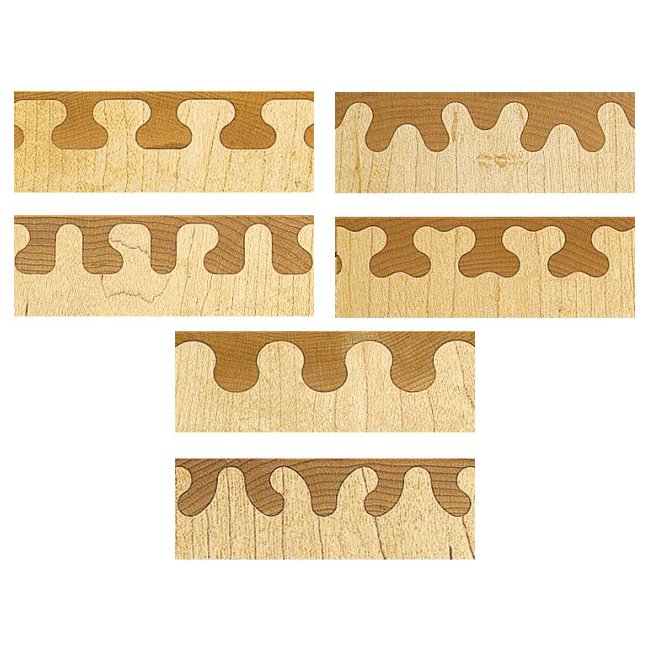

Each Isoloc template offers two joint patterns. All six patterns can be used for half-blind or through joints, and each can also (with 1/4" & 3/8" bits instead of the usual 5/16" bit) cut joints with a 1/16" inlay of contrasting wood. Stock capacities are from 3/4" to 1-1/2" thickness on the socket or "pin" piece and up to 1" thick on the "tail" piece. Maximum workpiece width varies from the standard jig width slightly depending on the shape of each template.

  • Key and Clover patterns are about 1/4" narrower than standard.
  • Ellipse pattern is about 3/4" narrower than standard.
  • Mirror Key pattern is about 1-1/4" narrower than standard.
  • Bear's Ears and Wave patterns are about 1-3/4" narrower than standard.

Each template comes with a 5-piece VGS template guide system and fully illustrated manual which is a model of clarity.


Leigh Jig Pattern HW # Leigh #
D3, D4 and D4R Key and Mirror Key - A 105340 I1A-24
D3, D4 and D4R Clover and Bear's Ears - B 105341 I1B-24
D3, D4 and D4R Ellipse and Wave - C 105342 I1C-24
D3, D4 and D4R All Three
Patterns		 Set of 3 105348 I1-3pack
Super 18 Clover and Bear's Ears - B 105711 I18B
Super 24 Key and Mirror Key - A 105712 I24A
Super 24 Clover and Bear's Ears - B 105713 I24B
D1600 Key and Mirror Key - A 105469 I1600A
D1600 Ellipse and Wave - C 105468 I1600C
