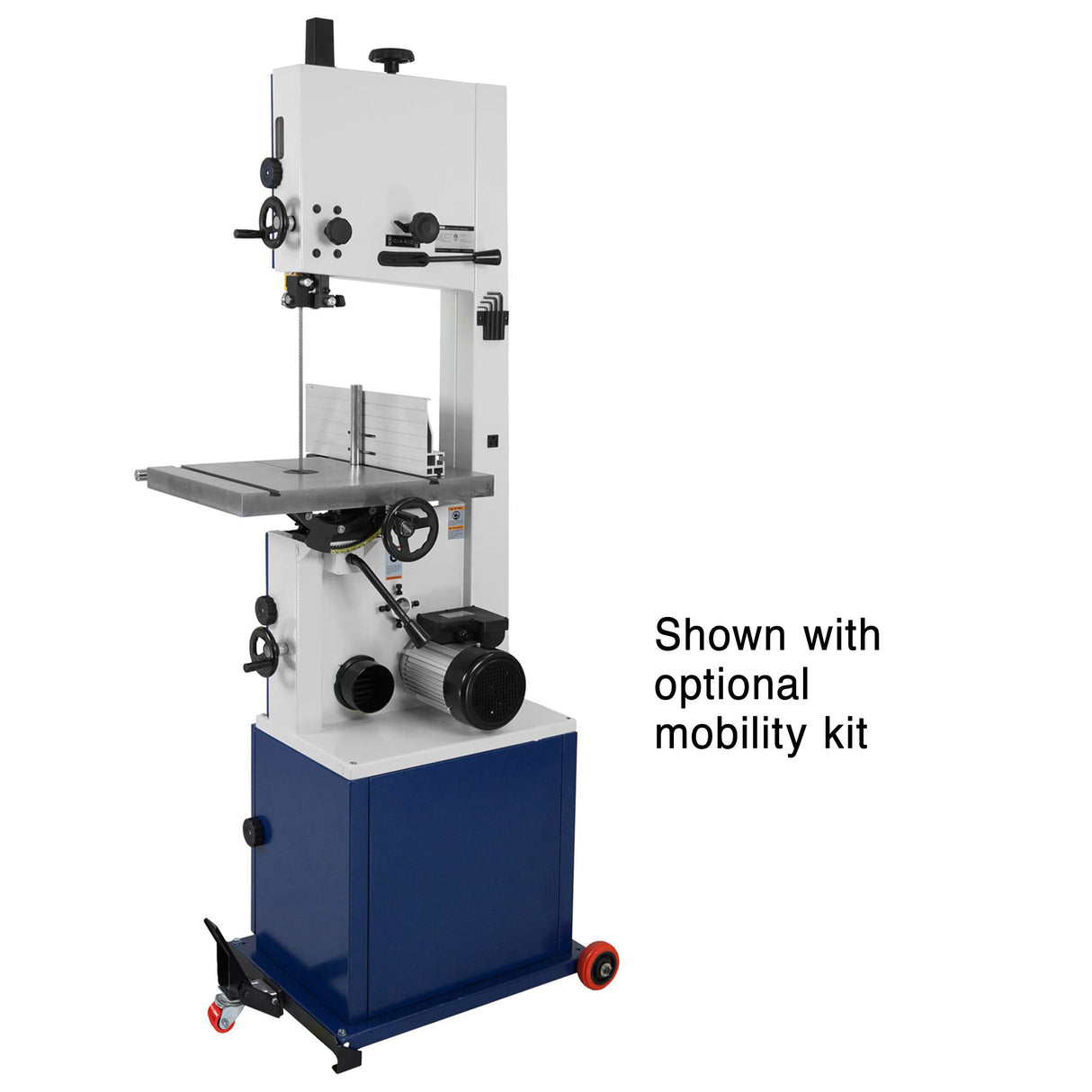

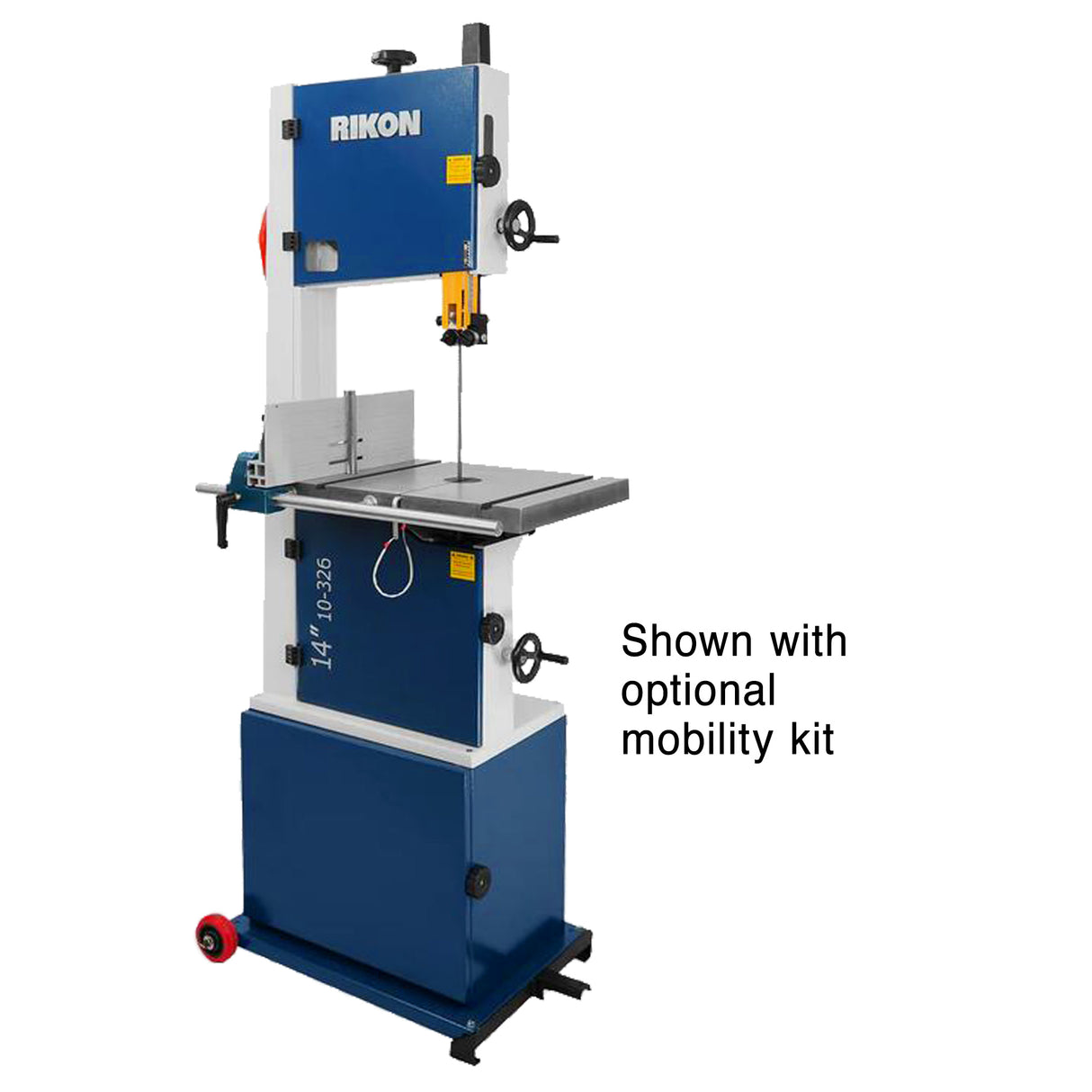

Rikon 14 inch Deluxe Bandsaw 10-326

Rikon 14 inch Deluxe Bandsaw 10-326
A great bandsaw for woodworking!

The Rikon 14" Deluxe Bandsaw is a great choice for all kinds of woodworkers. Furniture makers will like the large 13" resawing capacity and cutting accuracy. Woodturners will like the stability the large table provides when roughing bowl blanks. You can even cut non-ferrous metals on low speed.

Powered by a 1-3/4 HP 115/230 volt motor, this unit comes ready to plug into a 115 volt outlet. An extremely sturdy steel frame maintains accuracy. Large 1-3/8″ diameter side bearings provide guiding stability to the blade for greater cutting accuracy and reduce friction for longer blade life. A Quick-release lever quickly lowers the upper wheel, reducing blade tension for quick blade changes. It also lets you release blade tension at the end of each day's use, easing stress to the blade and the bandsaw's components. The large cast iron table tilts for beveled cuts and includes a heavy rip fence with integral inch scale and resawing pivot guide.

Standout Features for the Model 10-326

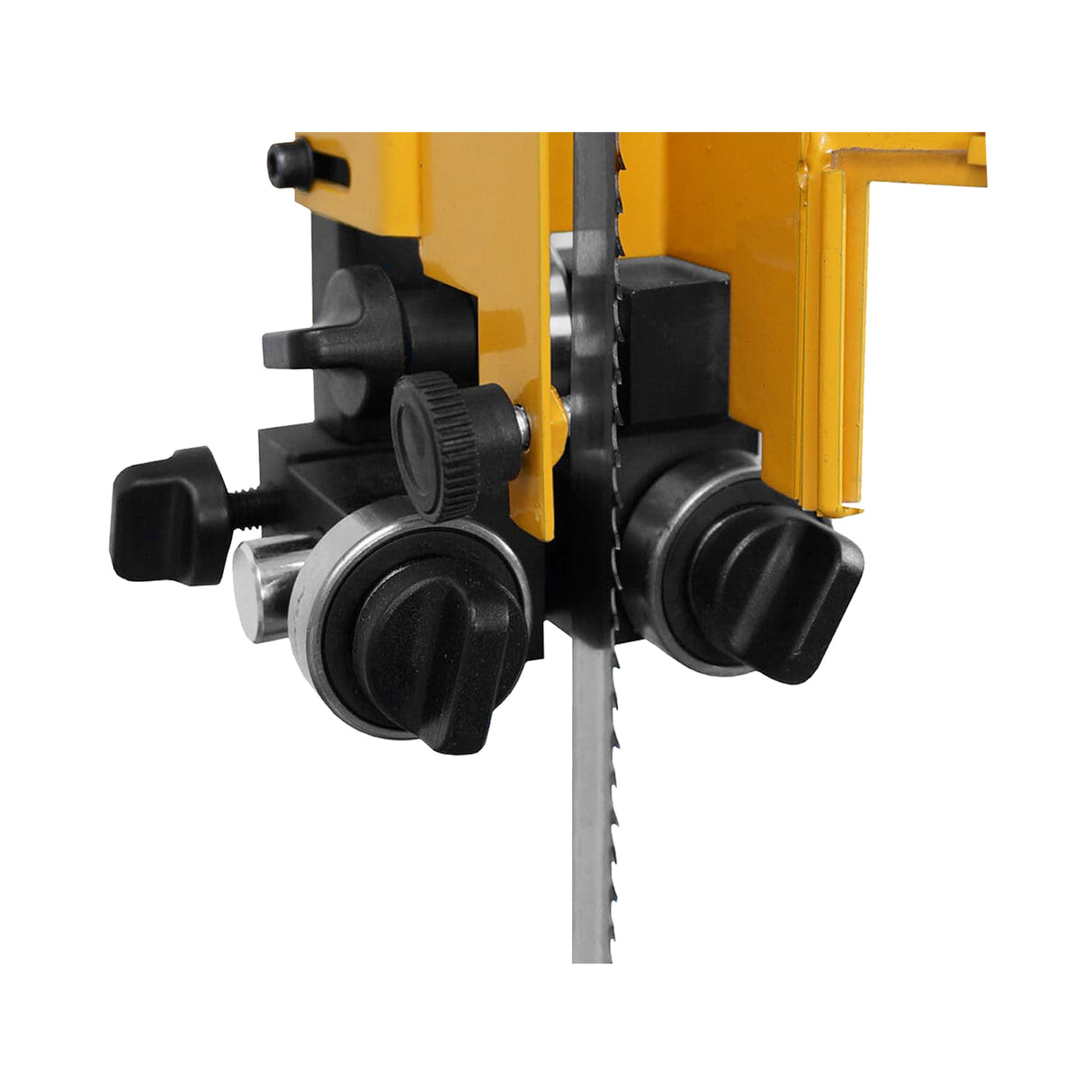

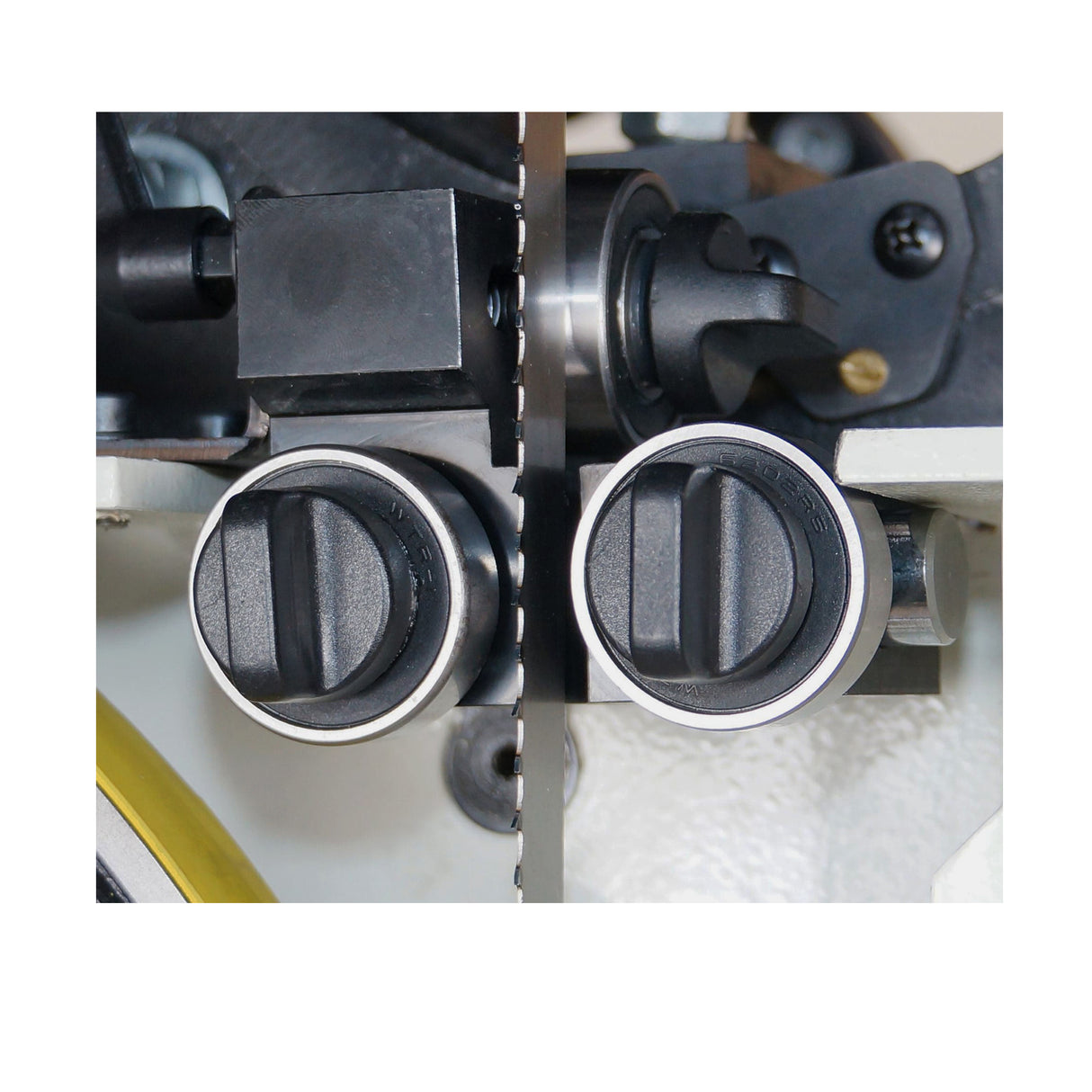

• Spring-loaded, tool-less blade guides

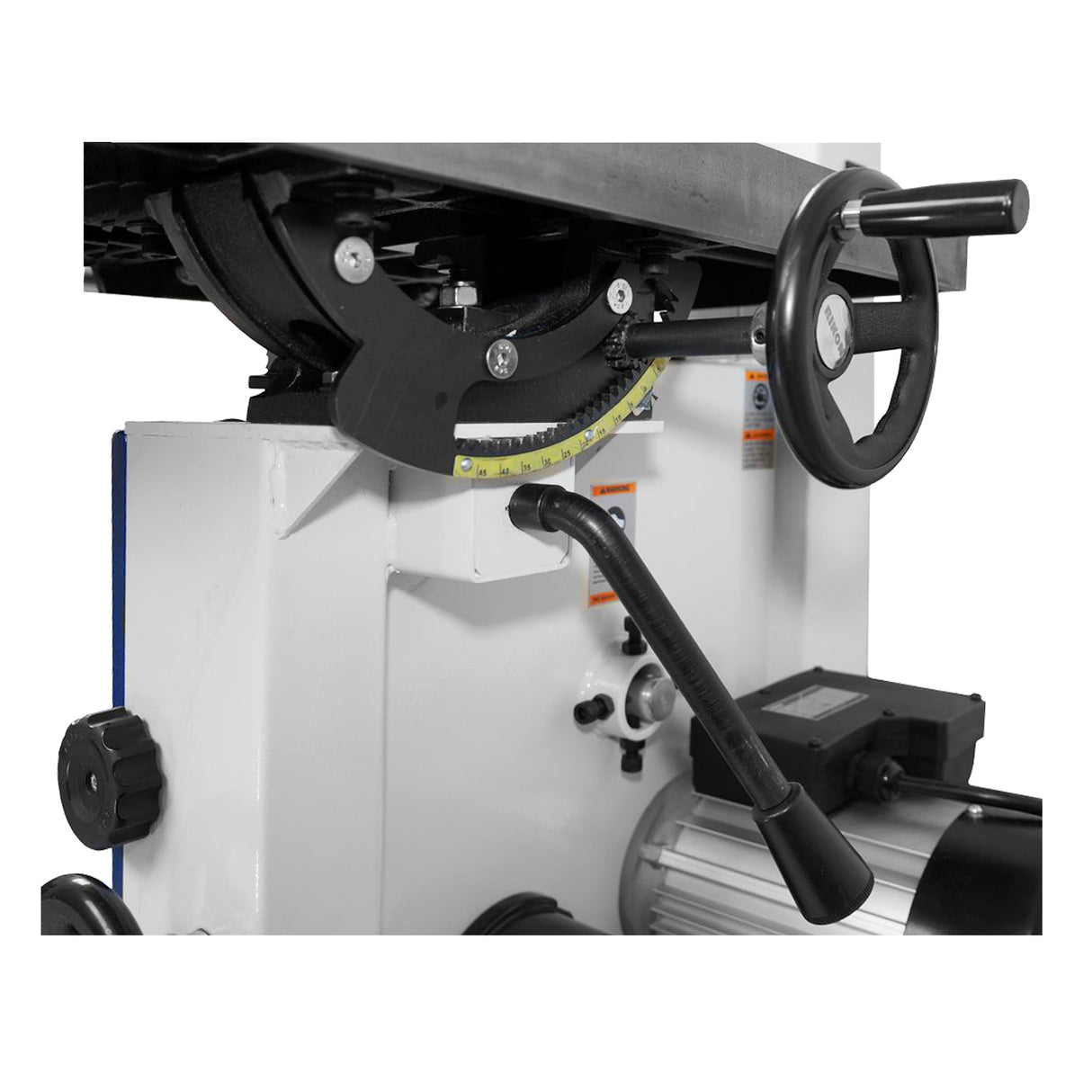

• Quick-lock table trunnion

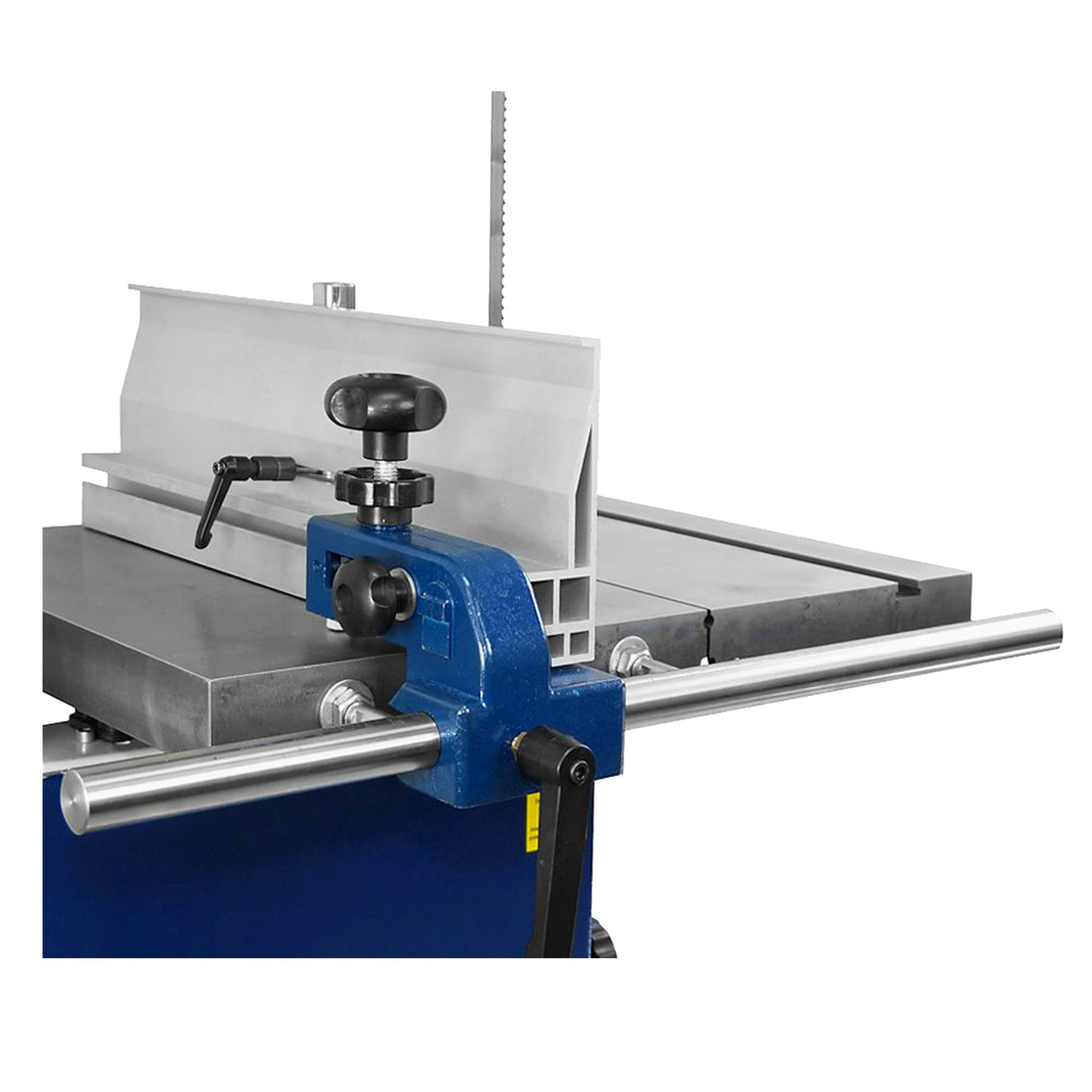

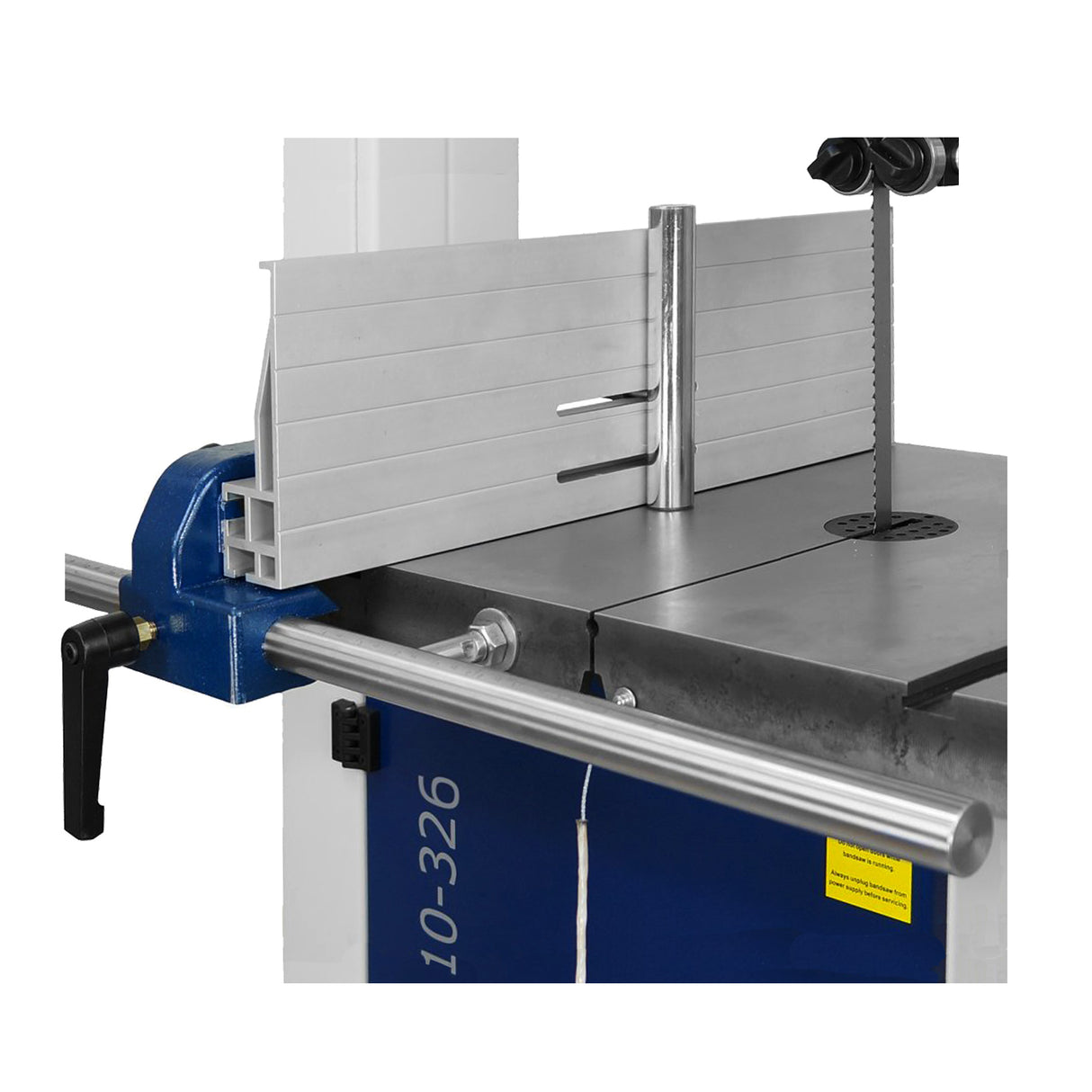

• Quick-adjust fence system with 6" tall rip fence

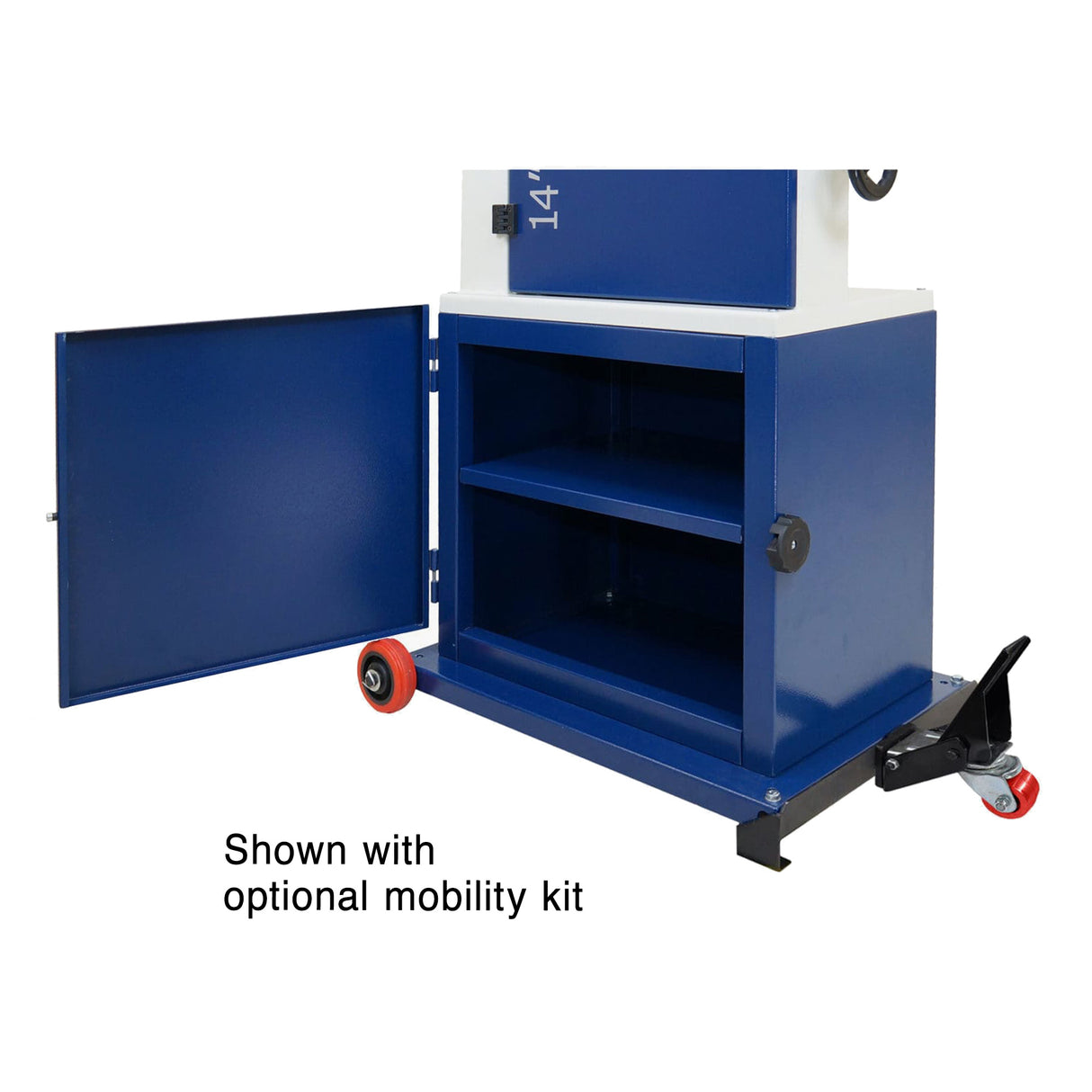

• Cabinet stand with door gives an ample 18″ x 14″ x 15-1/2″ storage area w/ fixed shelf
• 40-3/4″ floor to table height lets you work comfortably

Specifications

• Motor: 1-3/4 HP TEFC; 115/230v; 14/7a
• Cutting Capacity: 13-5/8" Wide x 13" High
• Cast Iron Table: 21-1/2" wide by 15-3/4" deep
• Table tilt: up to 45° right or 7° left
• Dust port: 4"
• Cast Iron Wheels: 14" diameter
• Blade Length: 111"
• Blade Width: 3/16" - 3/4"
• Comes with 5/8" 4tpi blade installed
• Cutting Speeds: 1445 / 2950 fpm
• Overalll size: 33-3/4" wide x 25" deep x 76" high
• Weight: 256 lbs
• Footprint: 24" wide x 17-1/2" deep
• FIVE-YEAR manufacturer's warranty.

Additional Information

Rikon 14" Deluxe Bandsaw User Manual - Model 10-326

Rikon 14" Deluxe Bandsaw Product Sheet - Model 10-326
