SawStop Contractor Saw CNS


SawStop CNS 10 in. Contractor Tablesaw
SawStop CNS 10 in. Contractor TablesawSawStop Contractor Saw CNSSawStop CNS 10" Contractor TablesawSawStop CNS 10" Contractor Tablesaw
SawStop Contractor Saw CNS

Price : Starting at $1,999.00

This item has a $300 shipping surcharge.

Select Product Options Here







Detailed Description

SawStop 10 inch Contractor Saw

The SawStop tablesaw's unique brake design detects hand or finger contact with the sawblade, instantly stopping and retracting the blade helping to avoid serious injury. The SawStop table saw's 1.75 HP motor comes ready to operate at 110V, 15A. It can be reconfigured to 220V, 7.5A (additional parts required - not included).

Fences

The SawStop Professional Cabinet Saw is available with three fence options - Premium Fence, T-Glide 2 fence or the T-Glide Advance Fence. The premium Fence is available in a 30" capacity. Both T-Glide fences are available in 36" or 52" capacities.

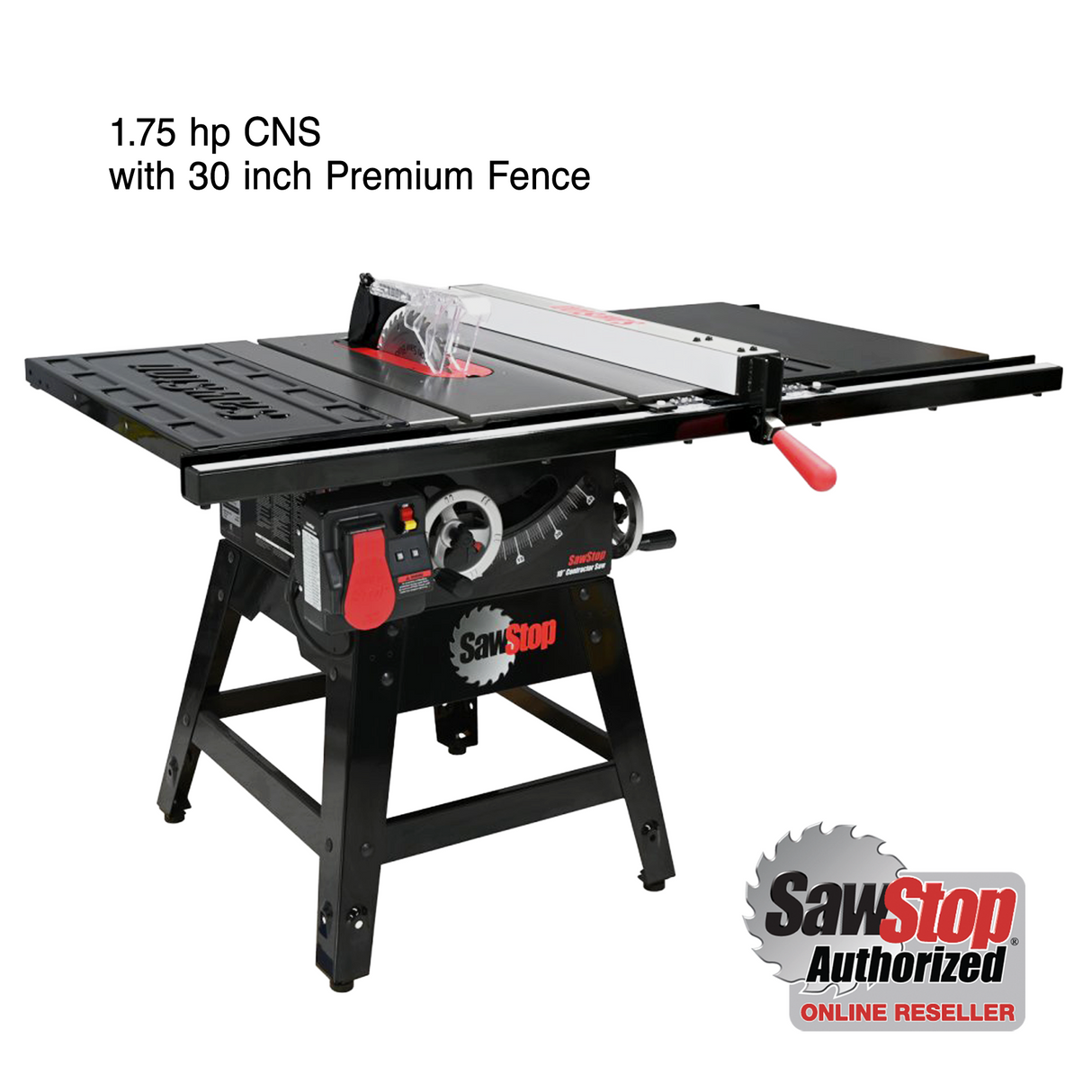

  • The 30" Premium Fence 30" Premium Fence System provides smooth operation, precision measurement and sure lockdown without deflection. It's similar in design to the T-Glide fences, but the steel tubes are smaller.

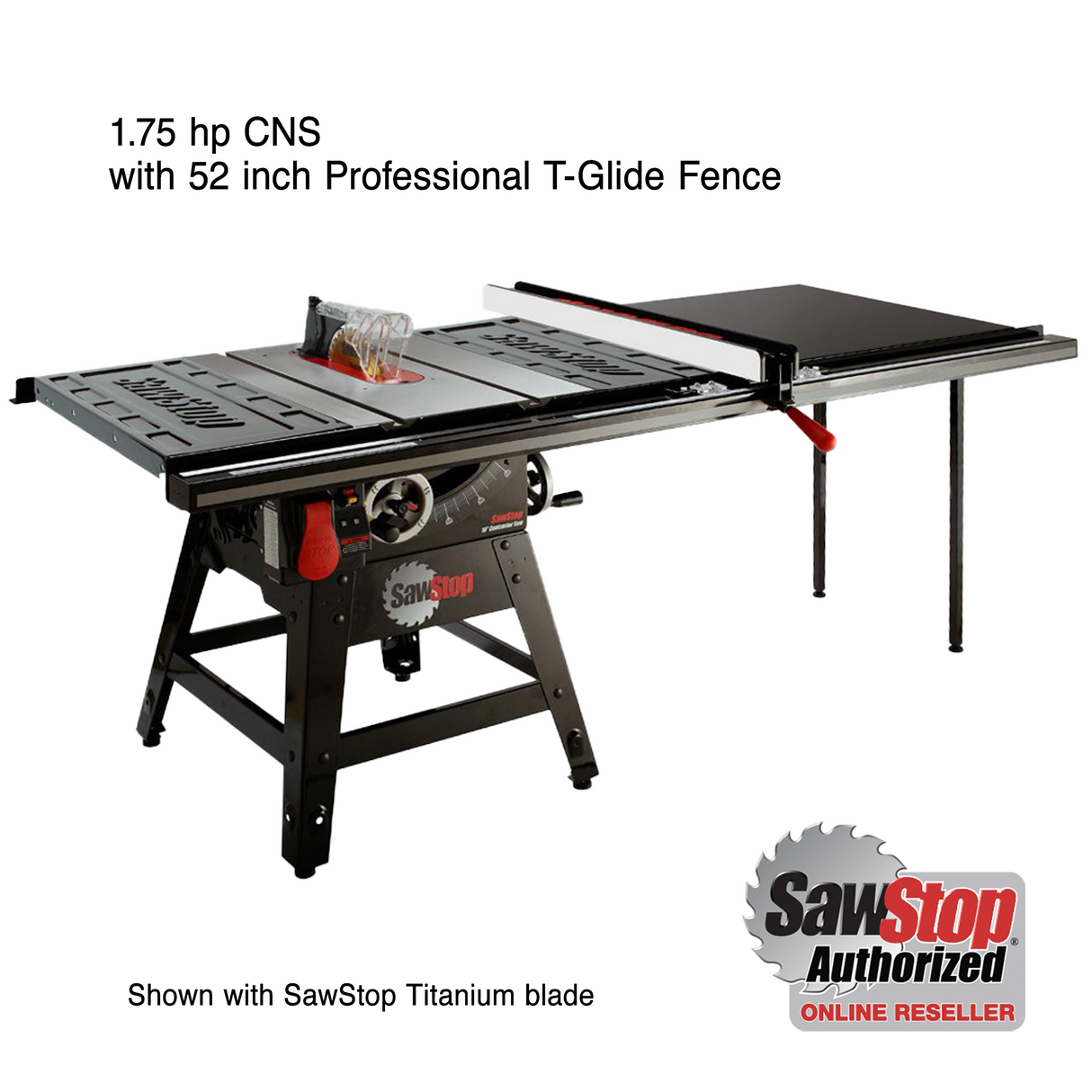

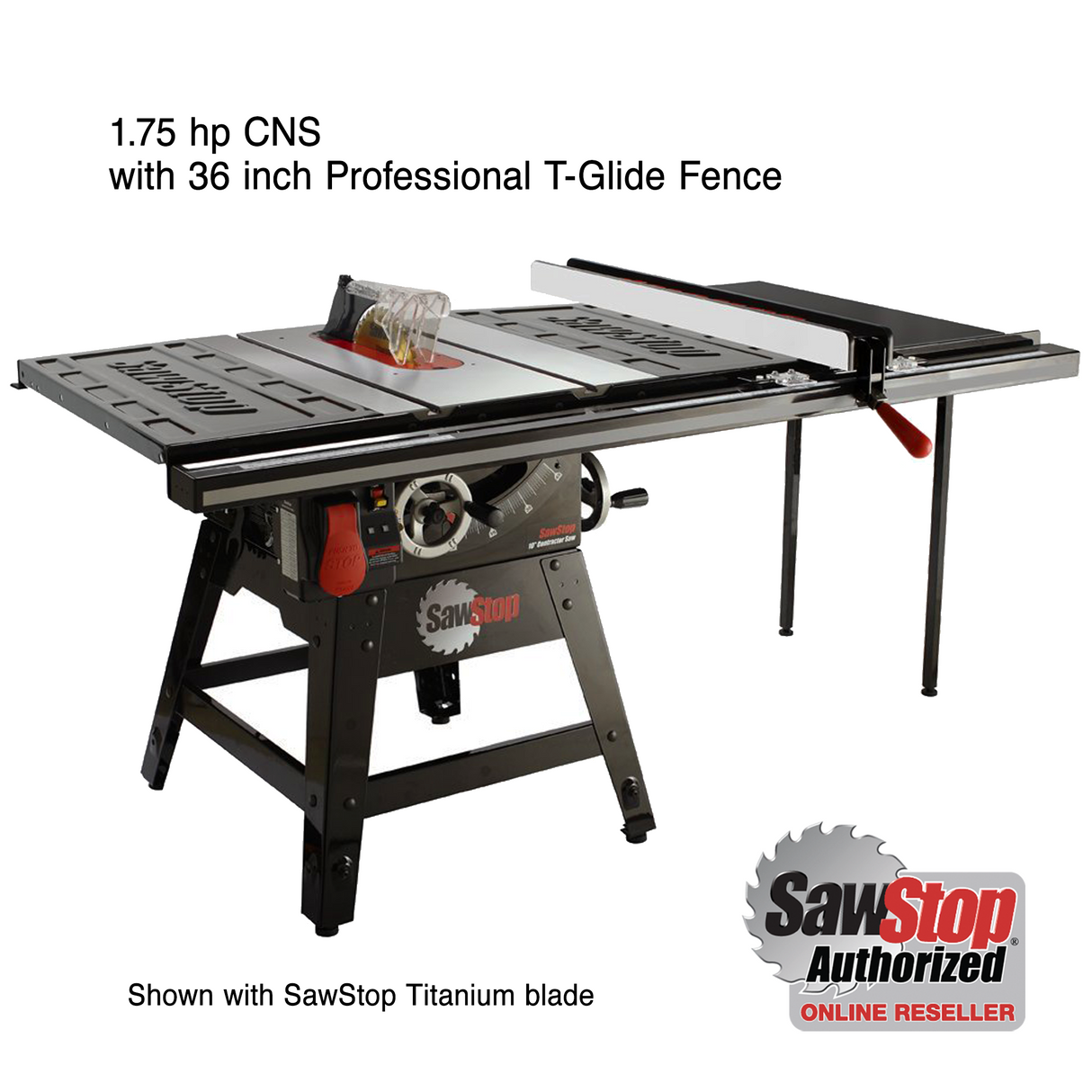

  • The T-Glide 2 fence is the common tee lock fence deisgn based on the venerable Beisemeyer fence. It has melamine-coated MDF fence faces on both sides of the rectangular tube.

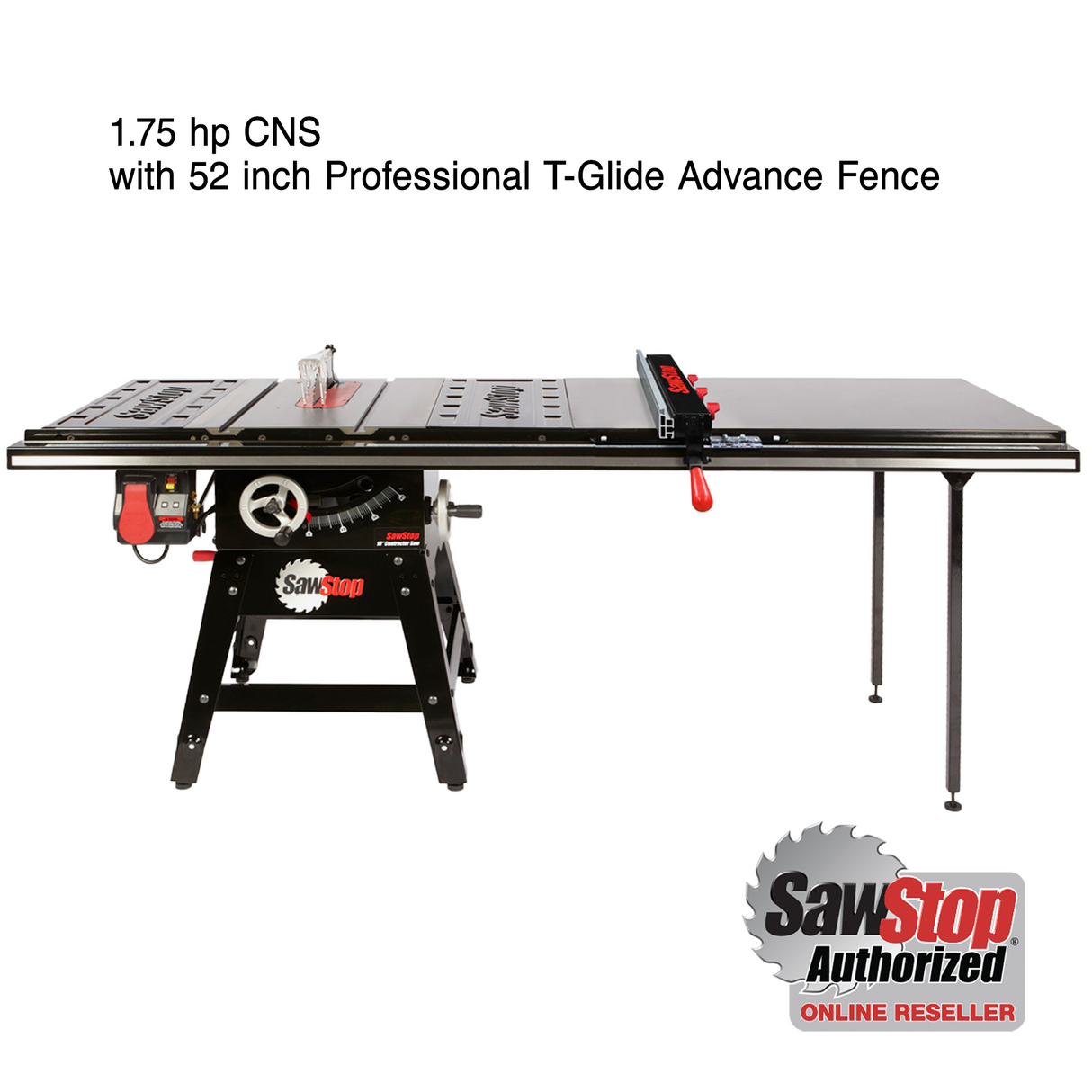

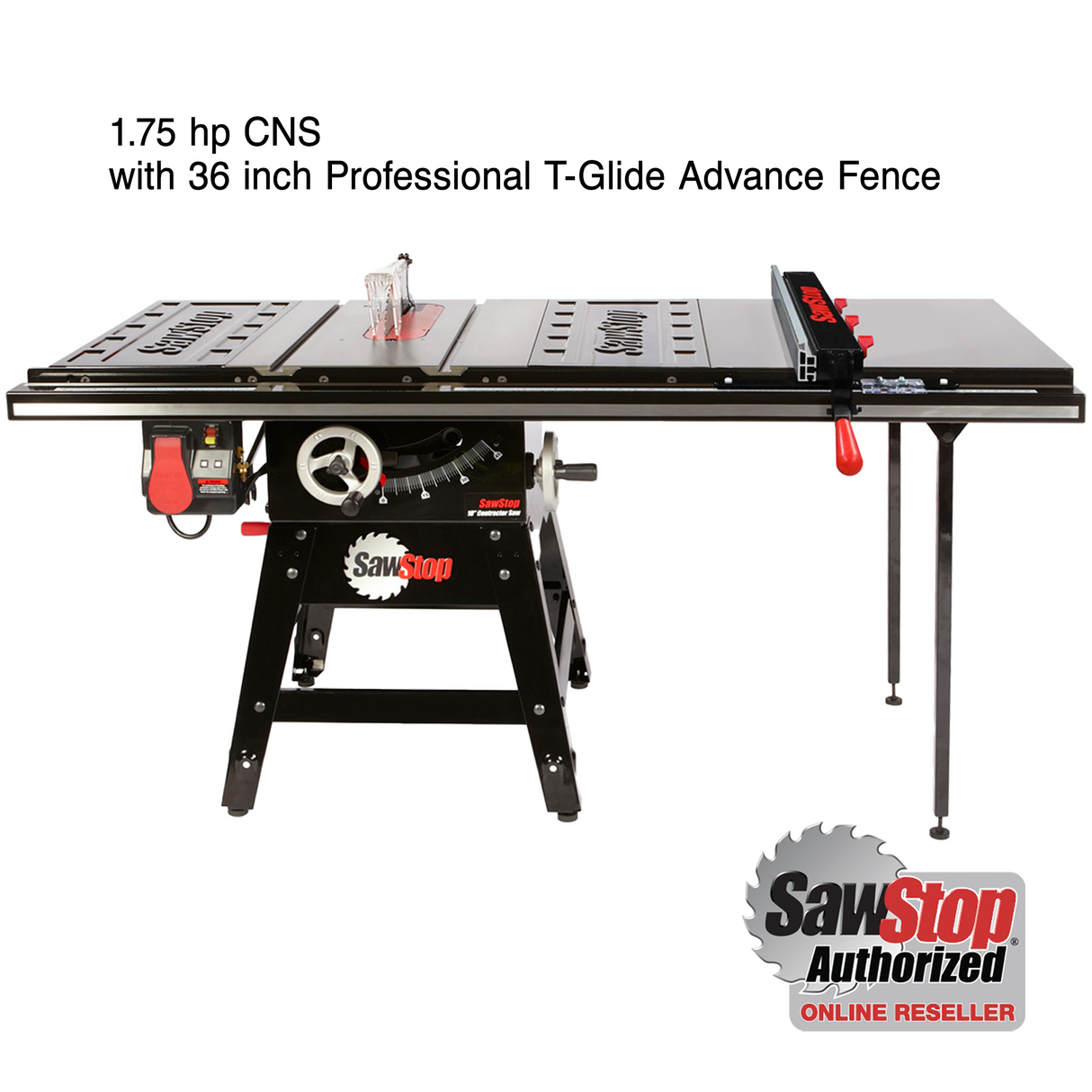

  • The T-Glide Advance Fence is an upgrade to the T-Glide 2. The fence has a single hi-low aluminum fence face, which can be positioned on either side of the fence and in a veritcal or horizontal position. It also has a dovetail slot for mounting featherboards, jigs of sacrifical fences. It adds twin rollers to the back of the fence so it glides smoothly along the table.
Includes
Specifications
  • Cast iron table - 20" W x 27" D
  • Motor - CNS175: 1.75 HP, 120v, 14 A
  • Extension wings - 12" x 27"
  • Blade diameter - 10"
  • Arbor - 5/8"
  • Dust port - 4"
  • Blade tilt - Left
  • Max cut depth at 0º: 3-1/8"
  • Max cut depth at 45º: 2-1/4"
  • Dado diameter - 8"
    (requires dado brake cartridge & insert)
  • Dado max. width - 29/32"
  • Weight (saw only) - 225 lbs
  • Assembled Saw
    • 30" Prem. Fence - 61-3/4" x 40" x 34-3/4"; 256lbs
    • 36" Fence - 69-1/8" x 40" x 34-3/4"; 310lbs
    • 52" Fence - 69-1/8" x 40" x 34-3/4"; 335lbs



Additional Information

Using a SawStop with a dado? See our Advice on selecting dados for SawStop saws.

Warranty

SawStop warrants to the original retail purchaser of a new contractor saw that the saw will be free from defects in material and workmanship for TWO YEARS from the date of purchase (must be registered with SawStop). See the SawStop website for details.

Product Videos

SawStop Contractor Saw Product Tour

SawStop: The Gestalt Experience

SawStop, the SawStop blade logo, and the configurations of SawStop products are either registered trademarks or trademarks of SawStop, LLC and are used with permission.

Due to SawStop policy, Highland Woodworking cannot ship SawStop products outside the U.S. Any SawStop order that we ship requires a U.S. shipping address.

Product Warnings

WARNING FOR RESIDENTS OF CALIFORNIA!

This product may expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Please read our Proposition 65 warning.
For more information, see www.P65Warnings.ca.gov.
