JSS-120A60 JobSite Saw Specifications
| Motor Configuration |
120 VAC 60 Hz
1.5HP Universal Motor |
| Amperage |
15A |
| Weight (saw only) |
84 lbs |
| Weight (with cart) |
113 lbs |
| Blade Diameter |
10" |
| Dado Diameter |
8" |
Max. depth of cut
with blade at 0° |
3-1/8" |
Max. depth of cut
with blade at 45° |
2-1/8" |
Maximum rip right
of blade - extended |
25-1/2" |
Saw Dimensions
(stowed on end,
with cart) |
45" x 26-1/2" x 29" |
Table Dimensions
(extended) |
43-5/16"x 24-5/8" |
Dust Collection
Port Diameter |
2-9/16" OD, 2-1/4" ID
(fits most common ~2-1/2" shop vacuum hoses) |

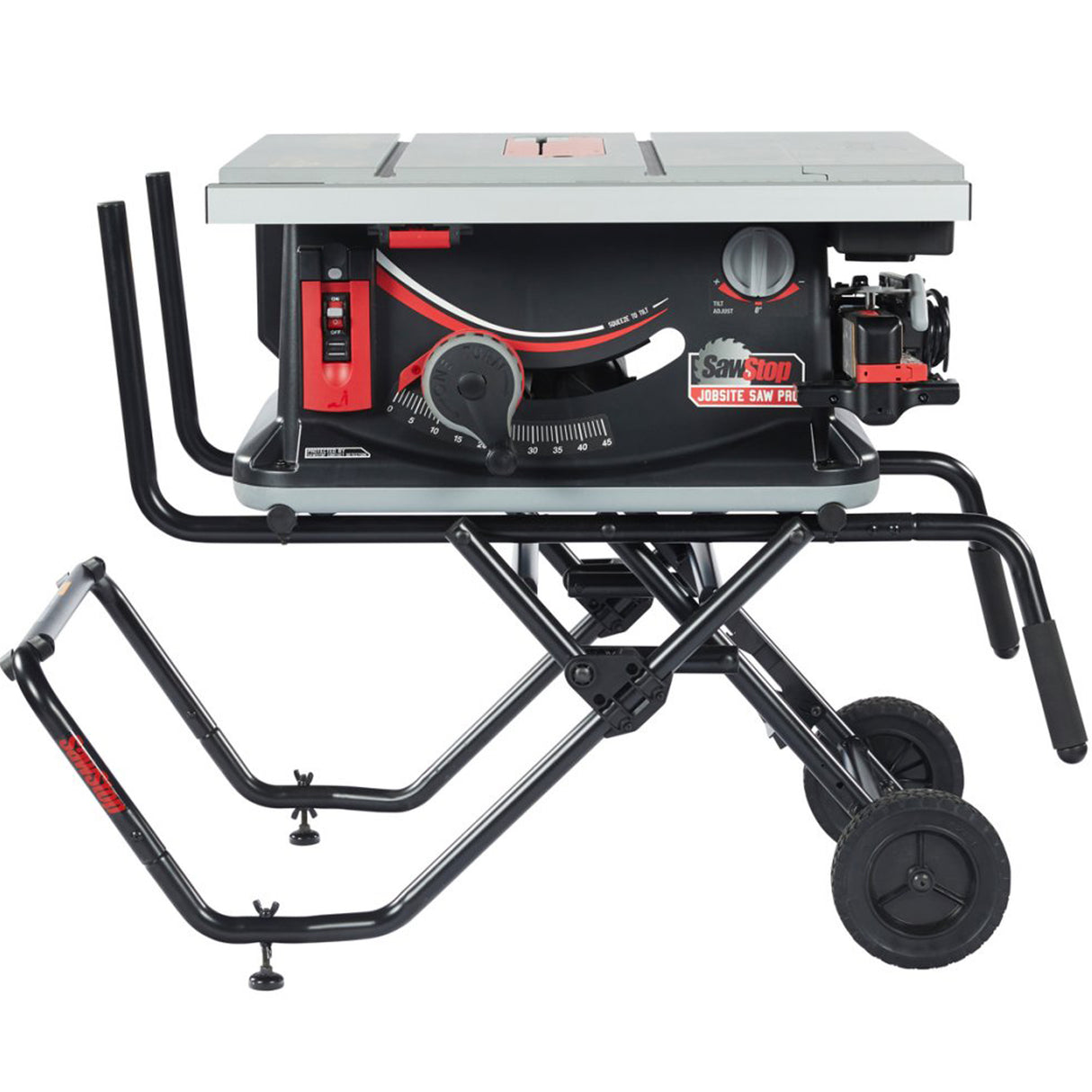

SawStop 10 inch JobSite PRO Table Saw
See the video demo below.
SawStop is well known for both the stellar quality of the machines they build as well as the exclusive SawStop safety features.
Now add to this list "extreme portability." The new compact SawStop Jobsite Saw makes it easy to take SawStop's quality,
safety and other unique features with you to any location.
Beyond the peace of mind that SawStop's patented blade brake system provides, stopping in 5 milliseconds upon
contact with skin, the new Jobsite Saw brings with it more new features that make accurate work quicker and more reliable than ever.
This Jobsite Saw Pro model has a table that is two inches deeper than the original Jobsite saw model for improved stock support,

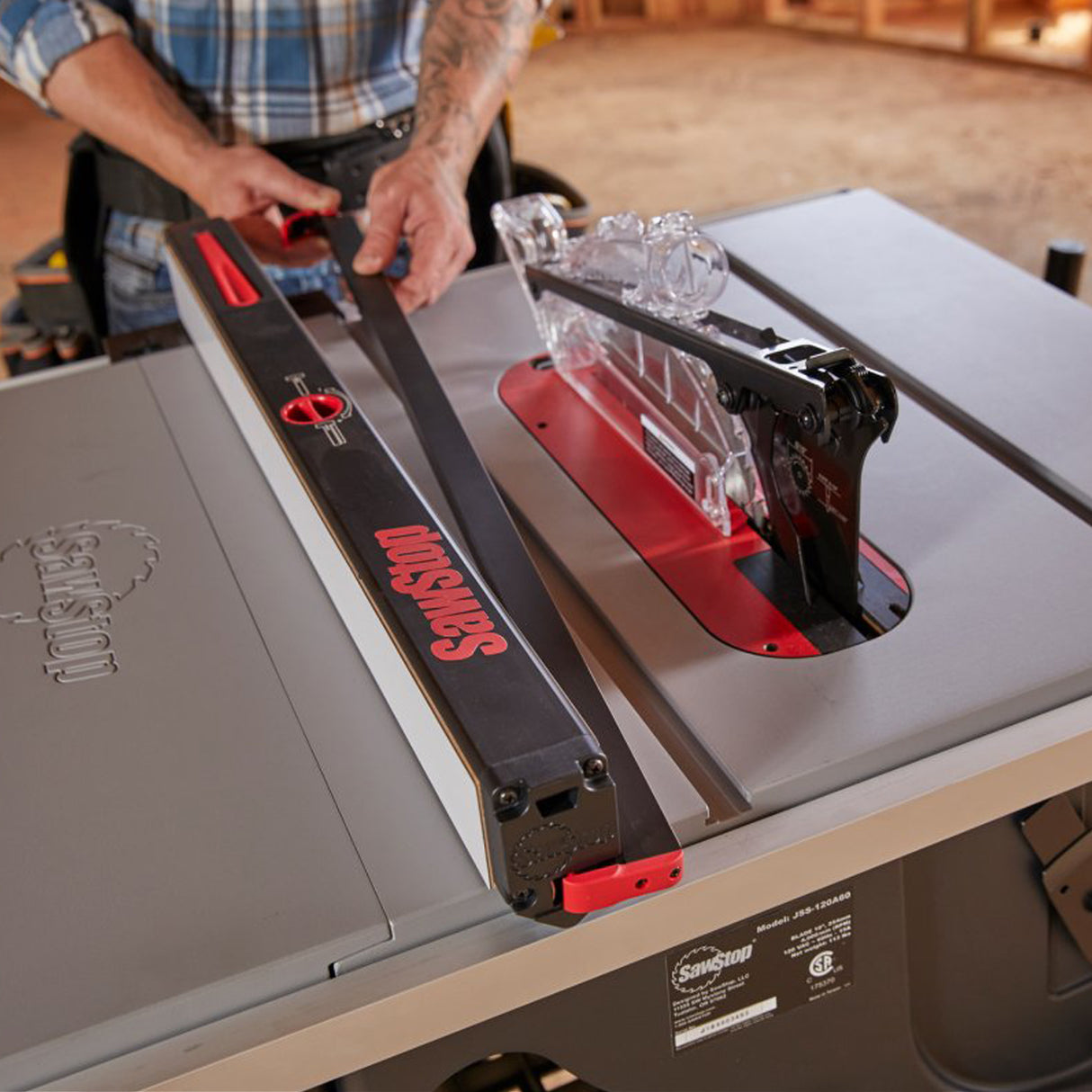

comes standard with a blade guard that allows a direct hook up to a shop vac and includes an innovative high-low T-style fence with
Ergolock for better stock control and improved safety when cutting with the fence positioned close to the blade.

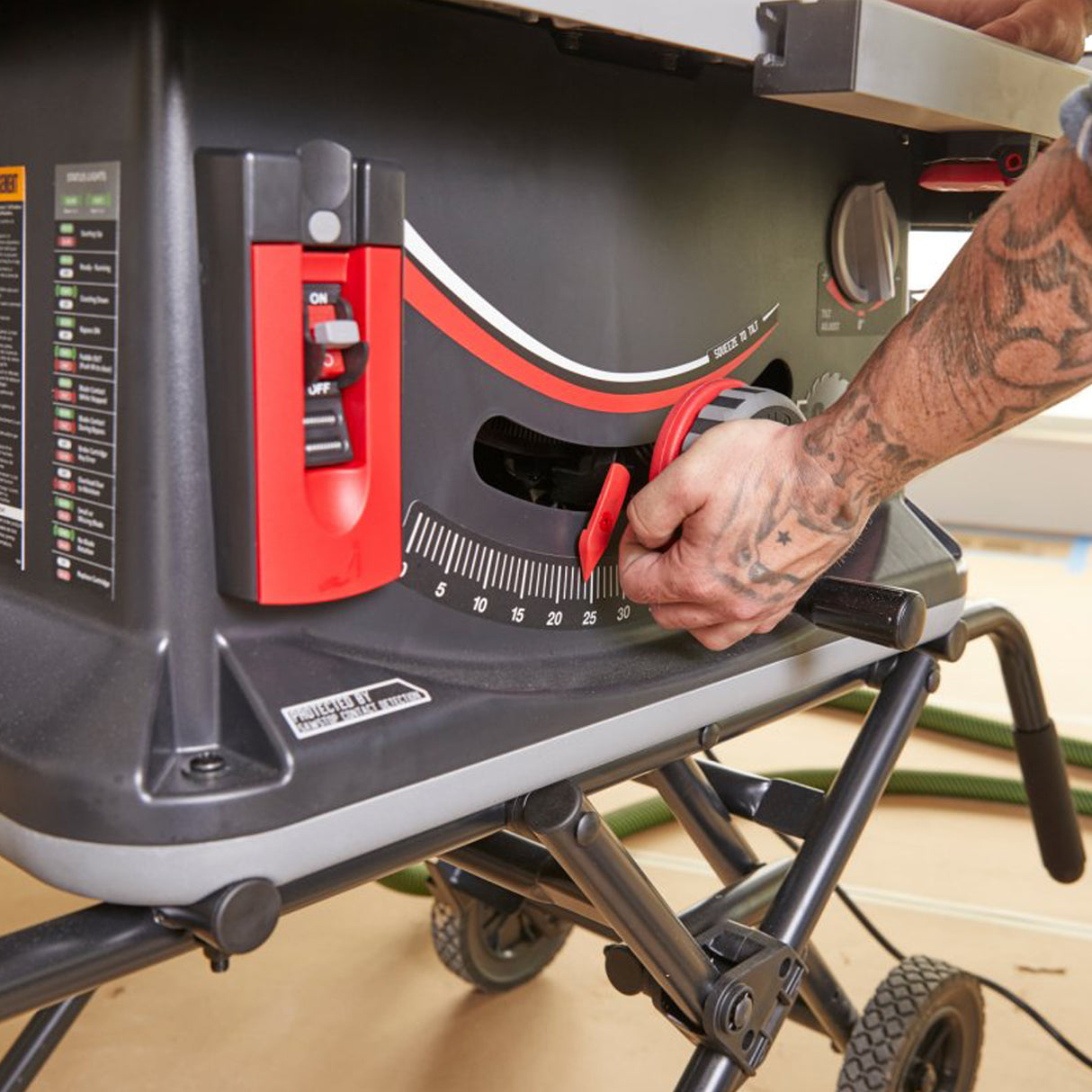

While some jobsite saws require over 25 turns to
fully raise or lower the blade, the SawStop Pro Saw does it in just one turn of the handwheel. Just as easily, the blade
can be tilted instantly to any angle in 1 degree increments, and infinitely fine tuned beyond that.

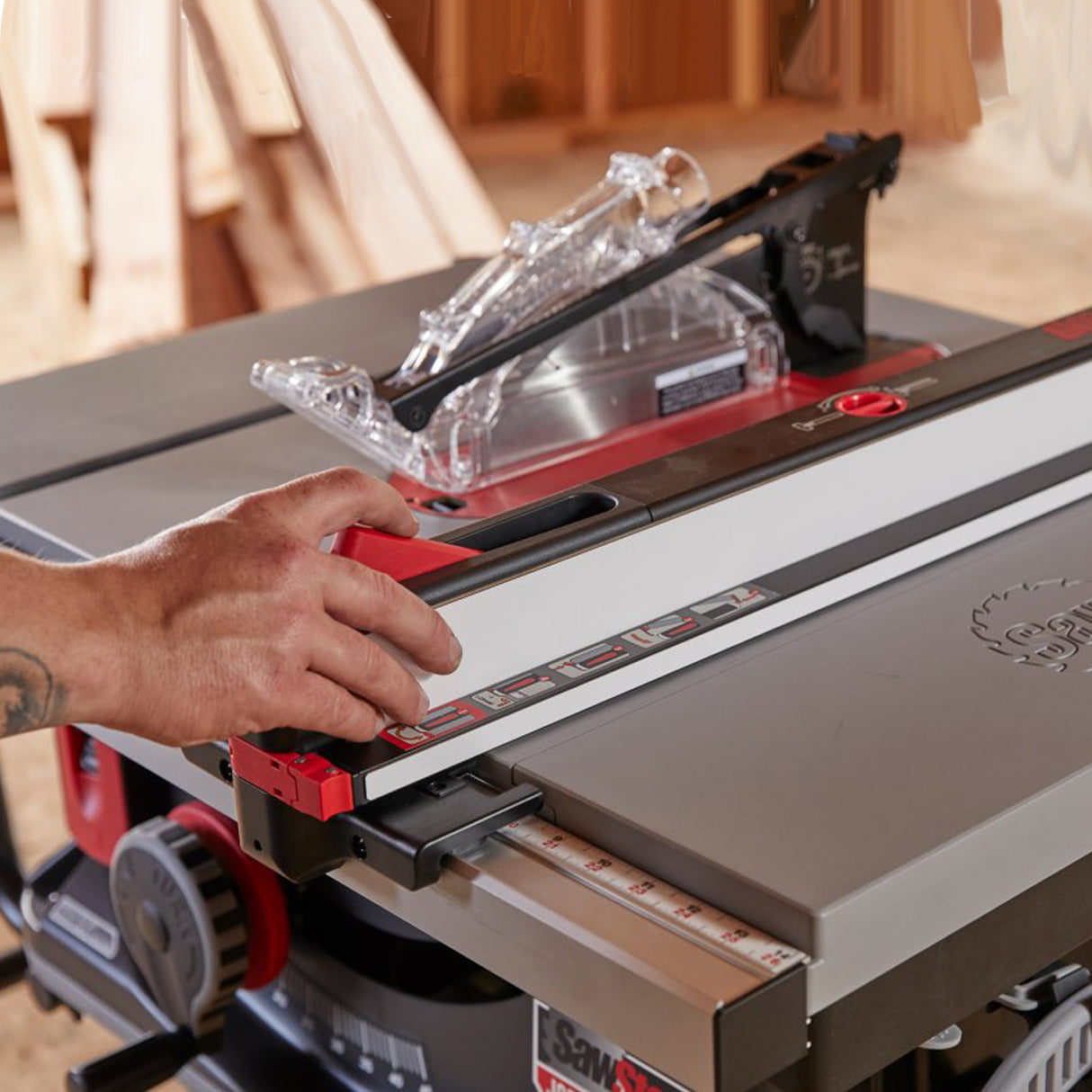

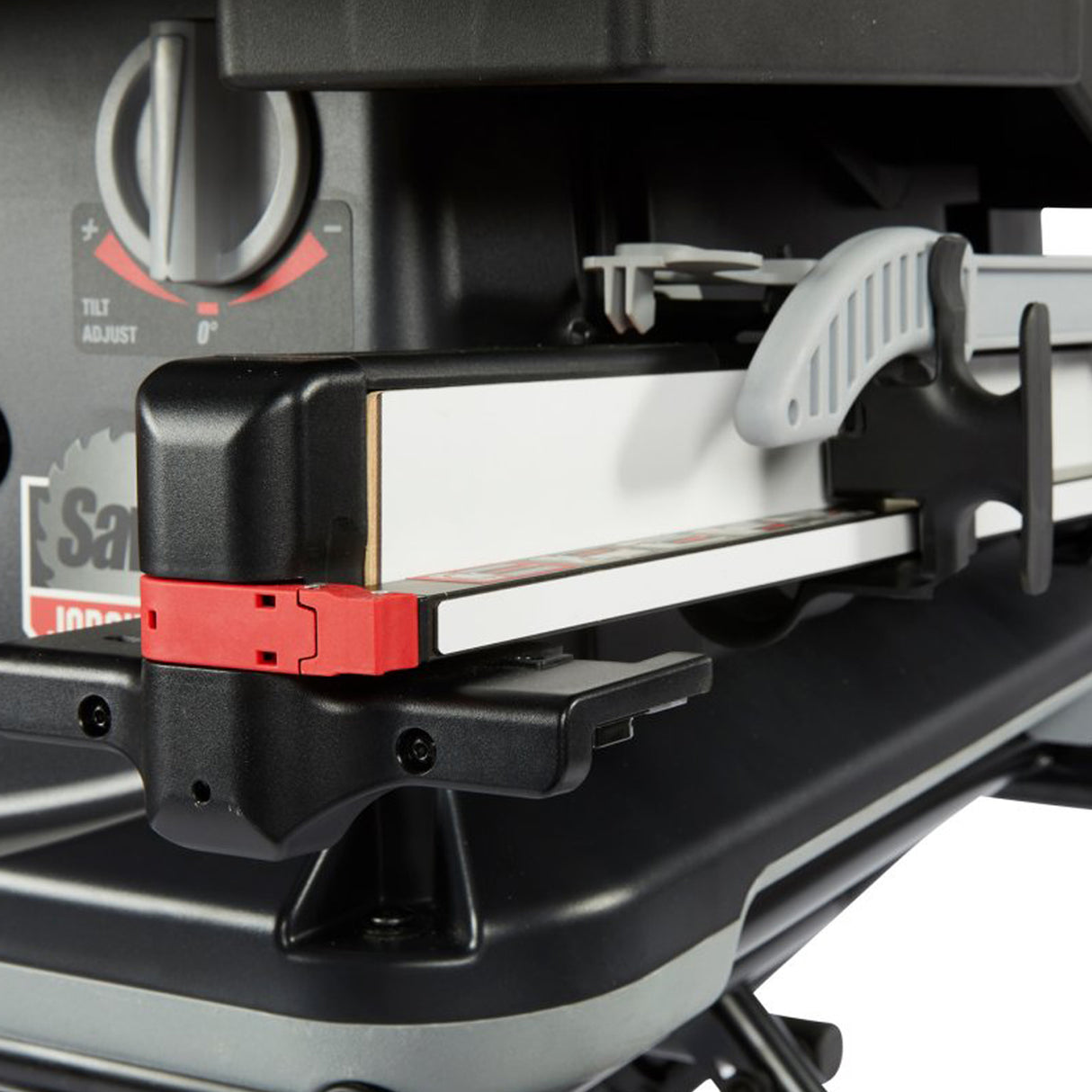

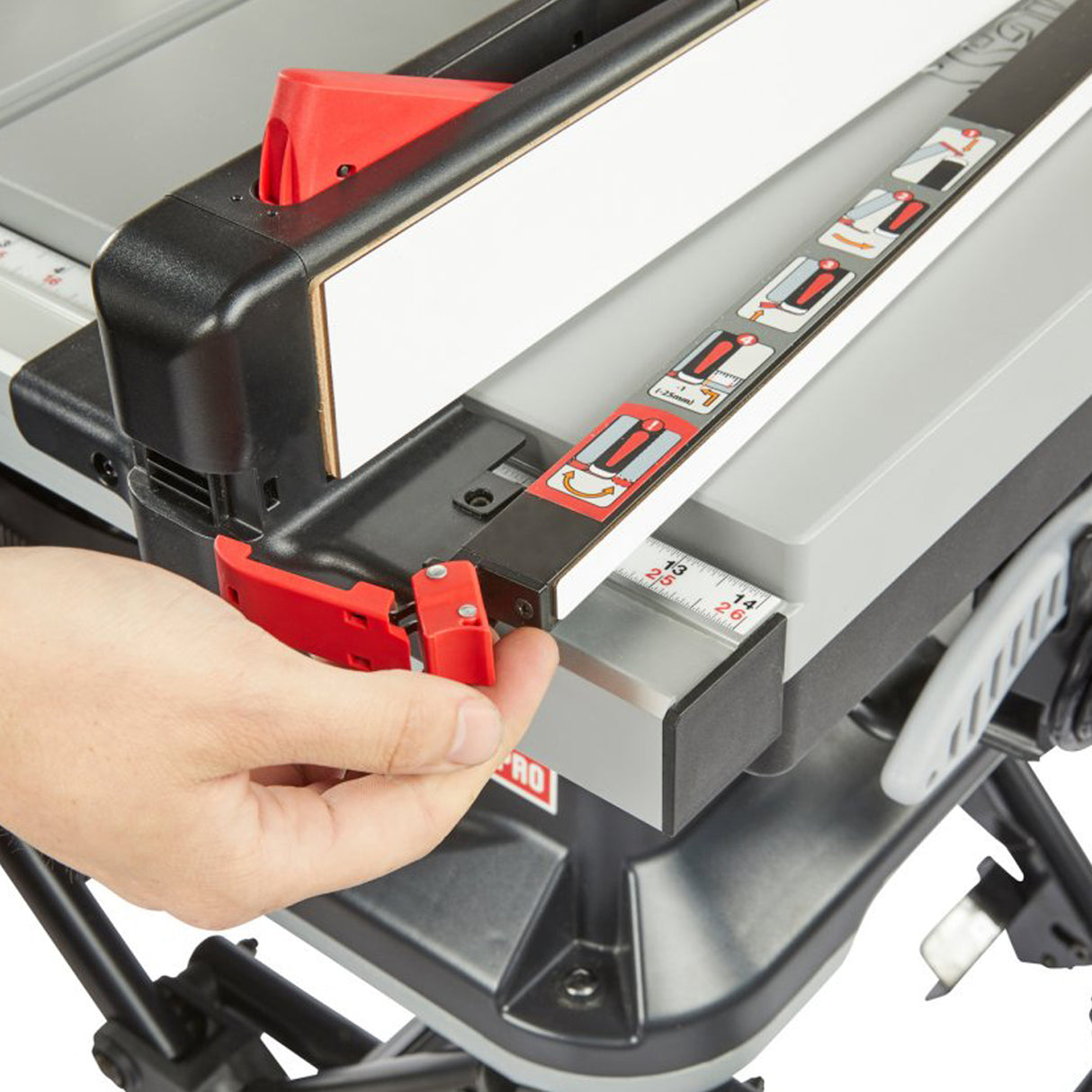

The robust T-Glide fence slides smoothly and locks securely with the innovative ErgoLock. A handy OnDemand Shelf can be
extended when needed for additional support.

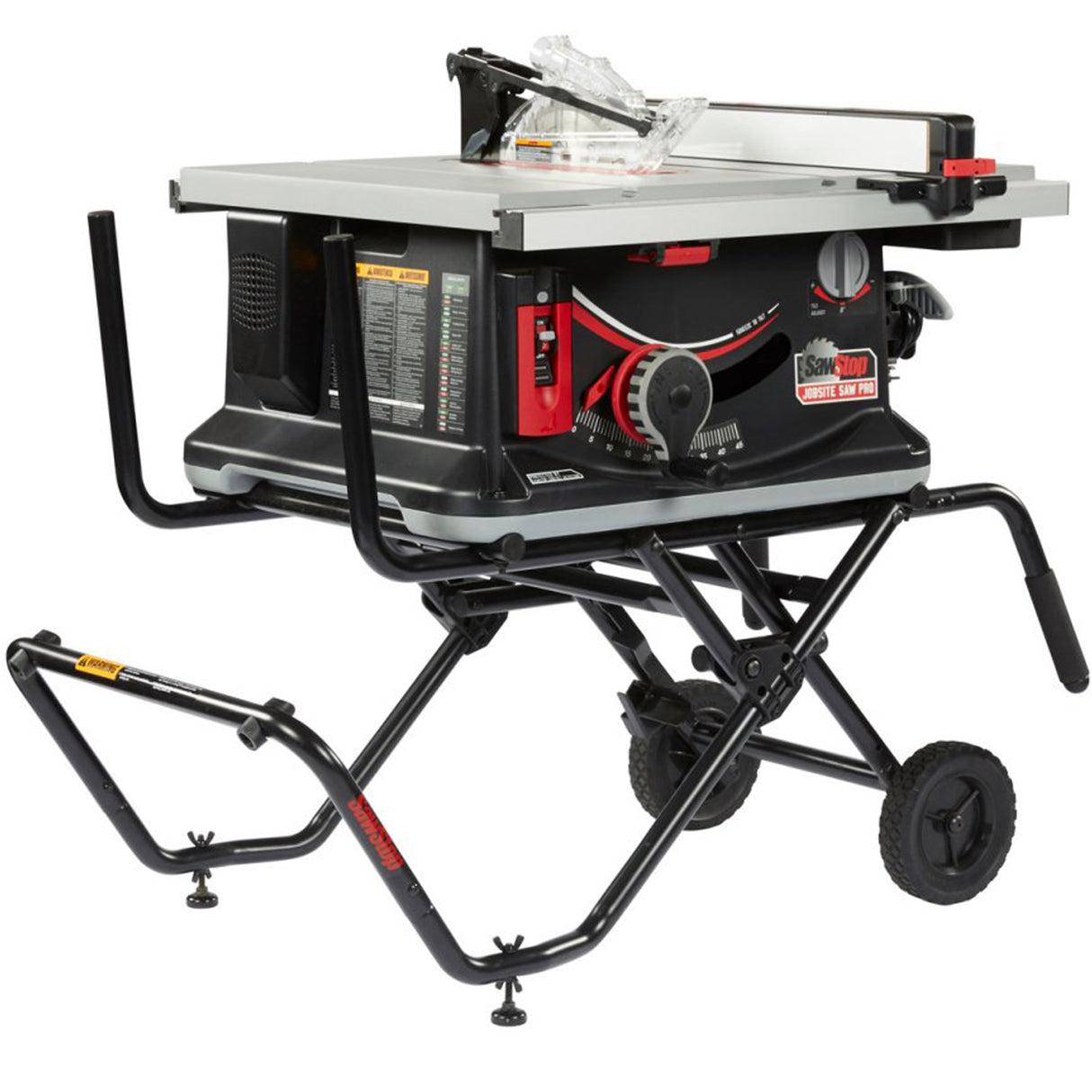

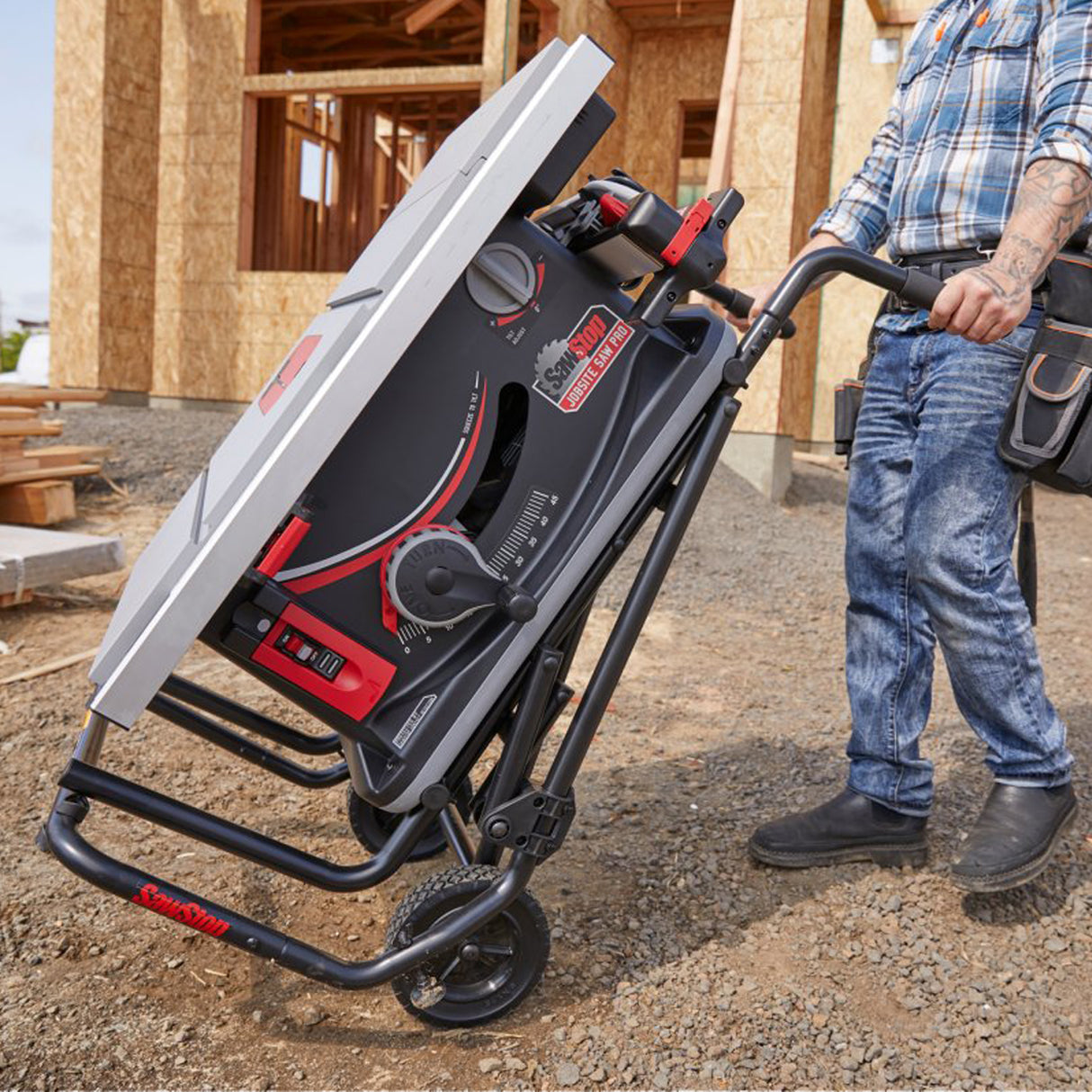

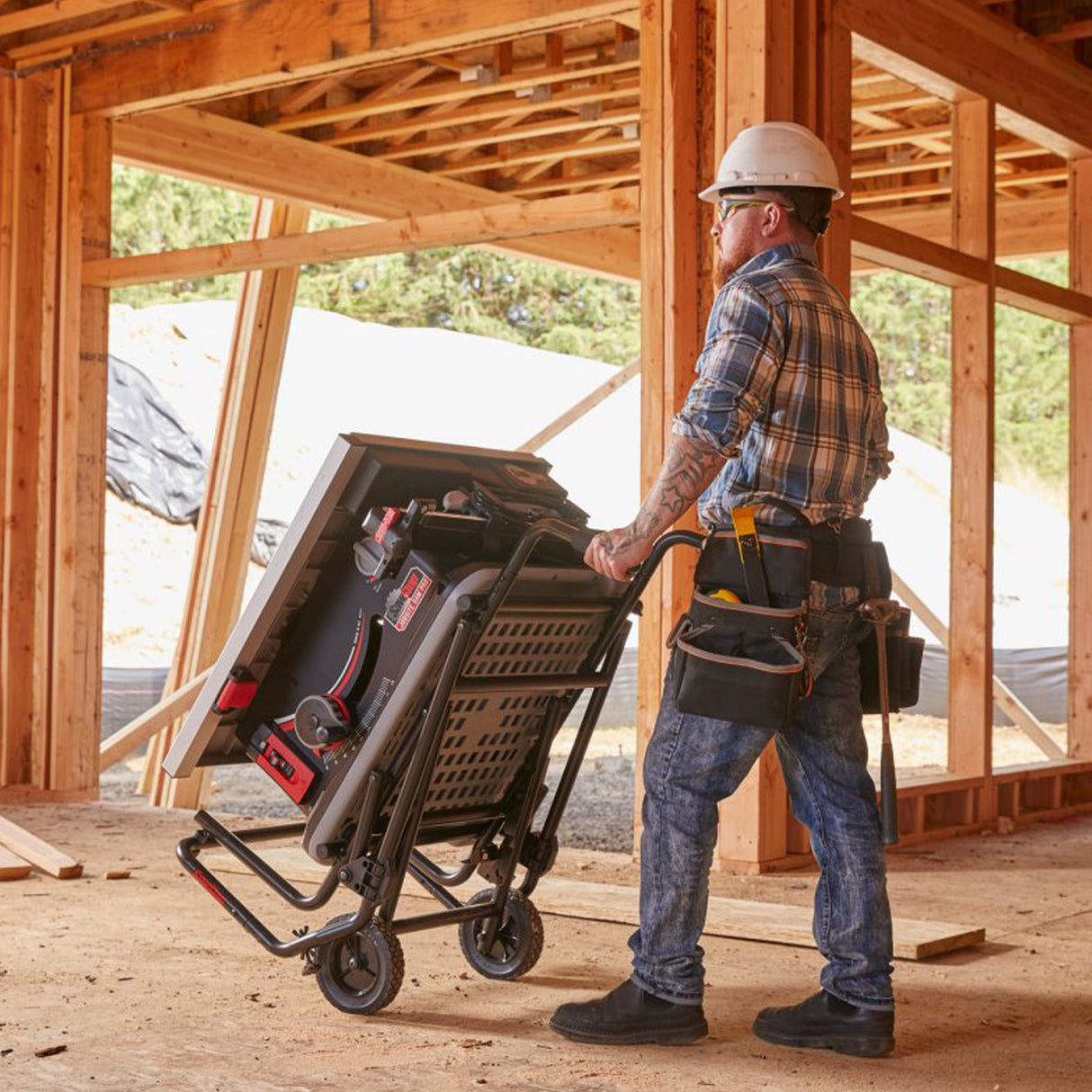

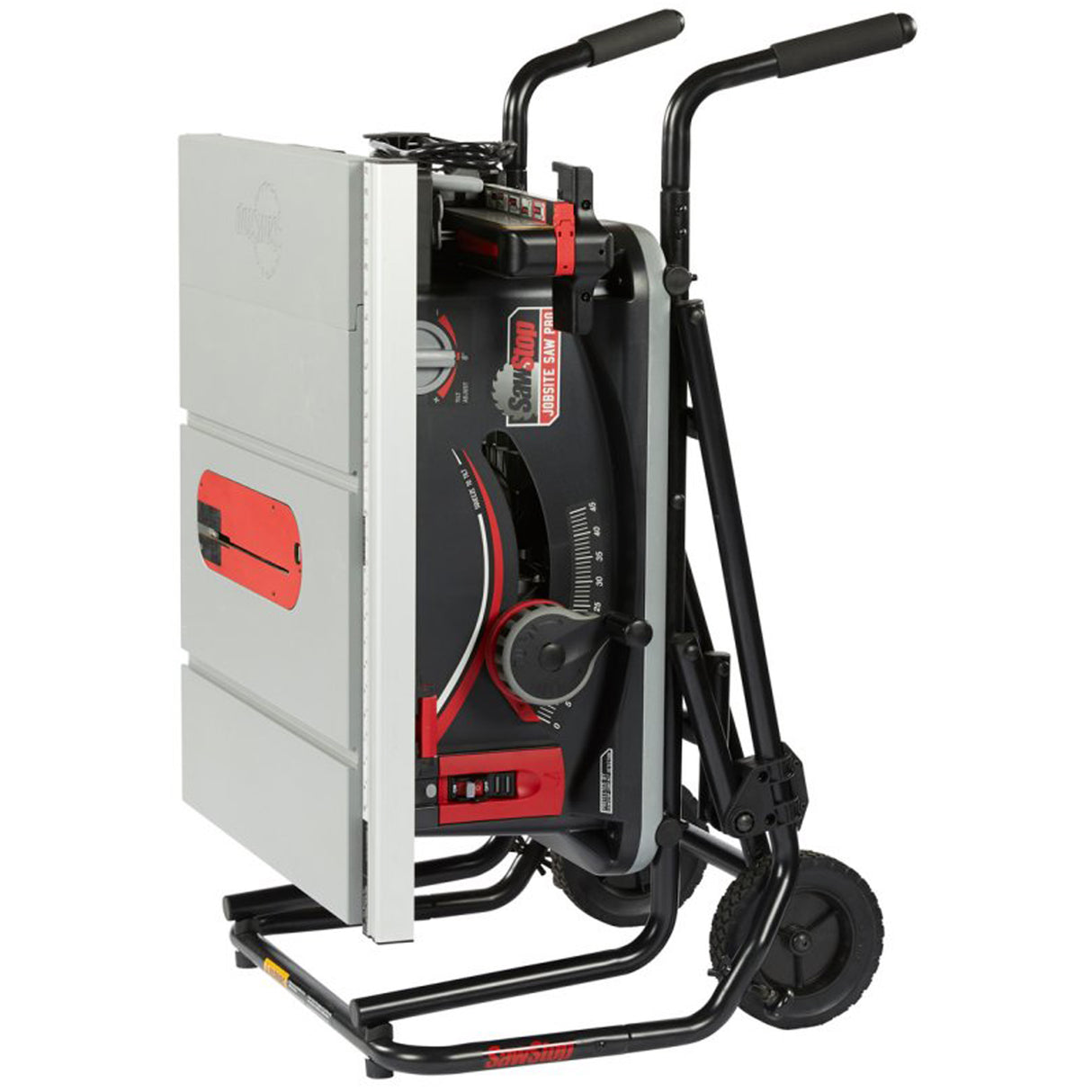

Simple intuitive action extends the cart for using the saw, or collapses the cart to allow for transport on large
wheels that allow easy navigation on variable terrain.

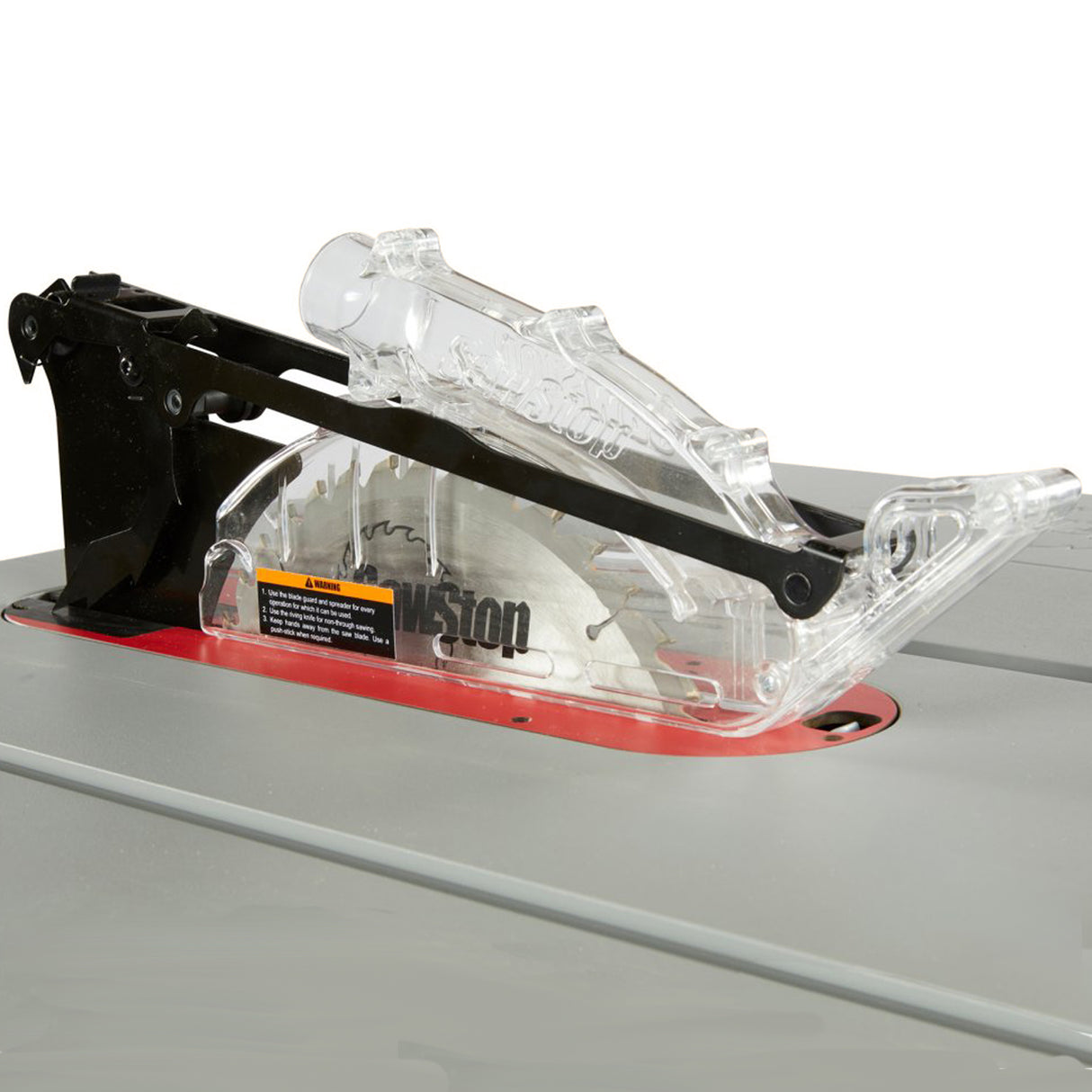

Advanced under-table blade shrouding maximizes dust collection when attached to your shop-vac. The low profile
blade guard increases visibility and helps protect against kickback, or easily switch to the included riving knife
with the flip of a lever.
Sawstop's 10 inch JobSite Pro Saw table saw is the best choice for your portable tablesaw needs - you deserve the safety and performance of
the world's safest and best jobsite tablesaw on the market.
What's Included?
- JSS Pro JobSite Saw
- Collapsible Rolling Cart
- High/Low T-Style Fence w/Ergolock
- Miter Gauge
- JSS Active Dust Collection Blade Guard
- Riving Knife
- Blade Wrenches
- Push Stick
- 10" 40-tooth Combination Blade
Additional Information
Using a SawStop with a dado? See our Advice on selecting dados for SawStop saws.
