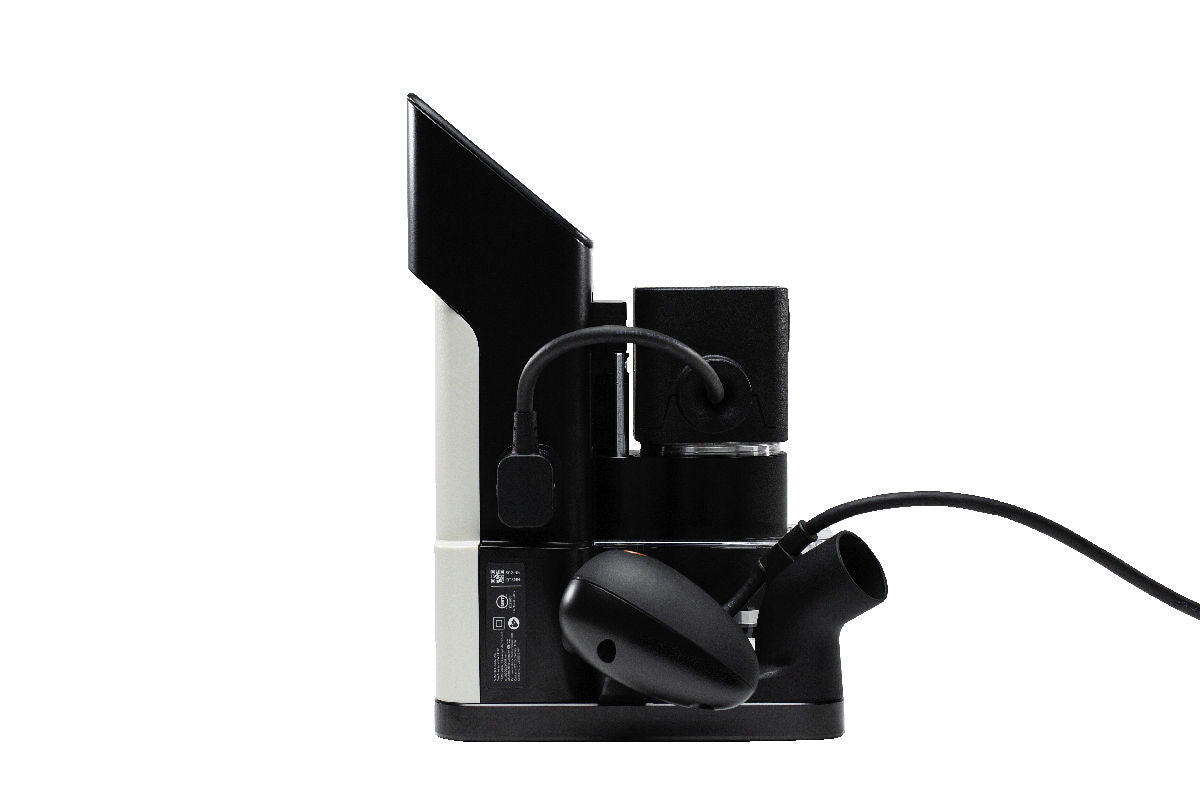

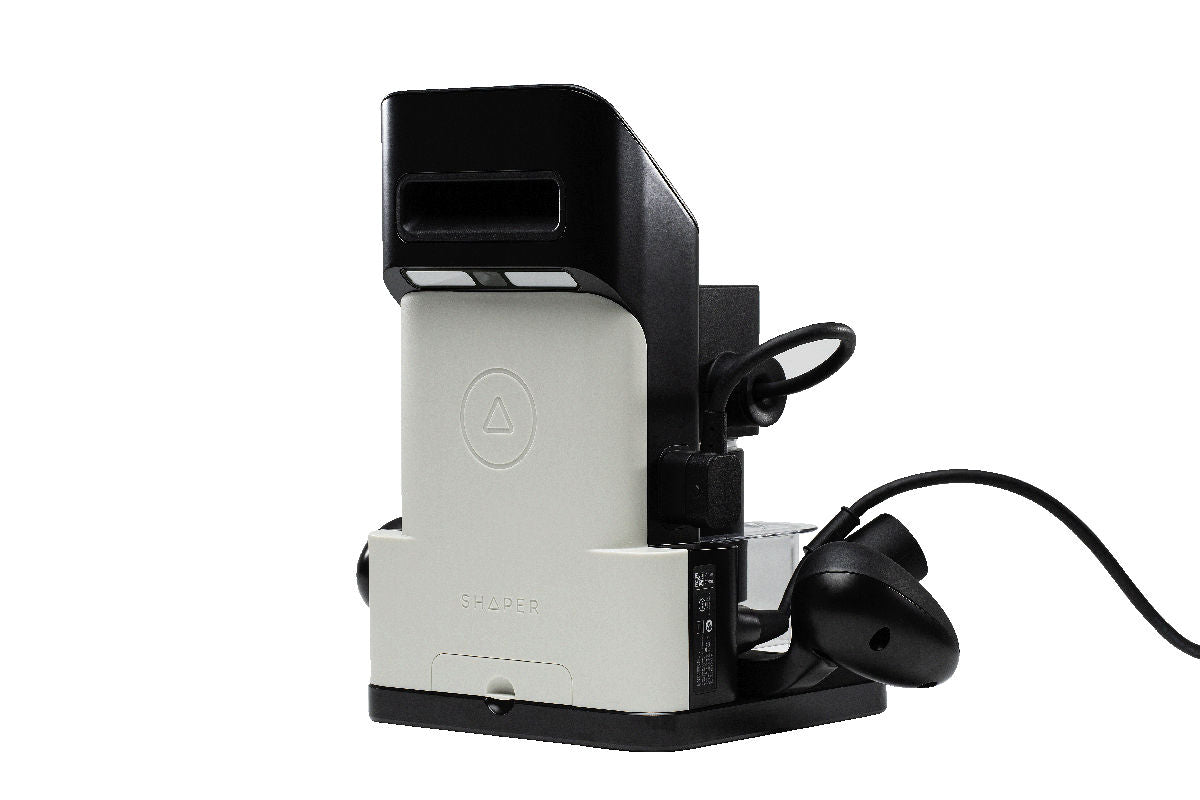

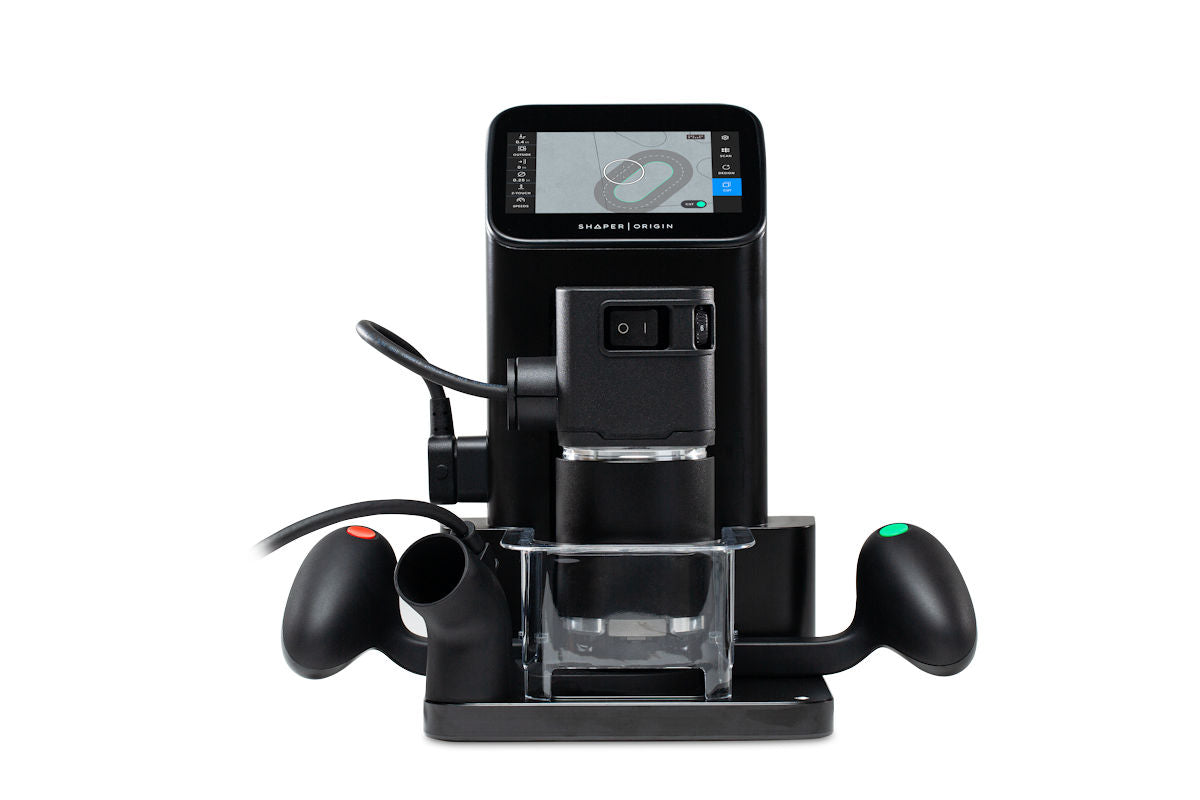

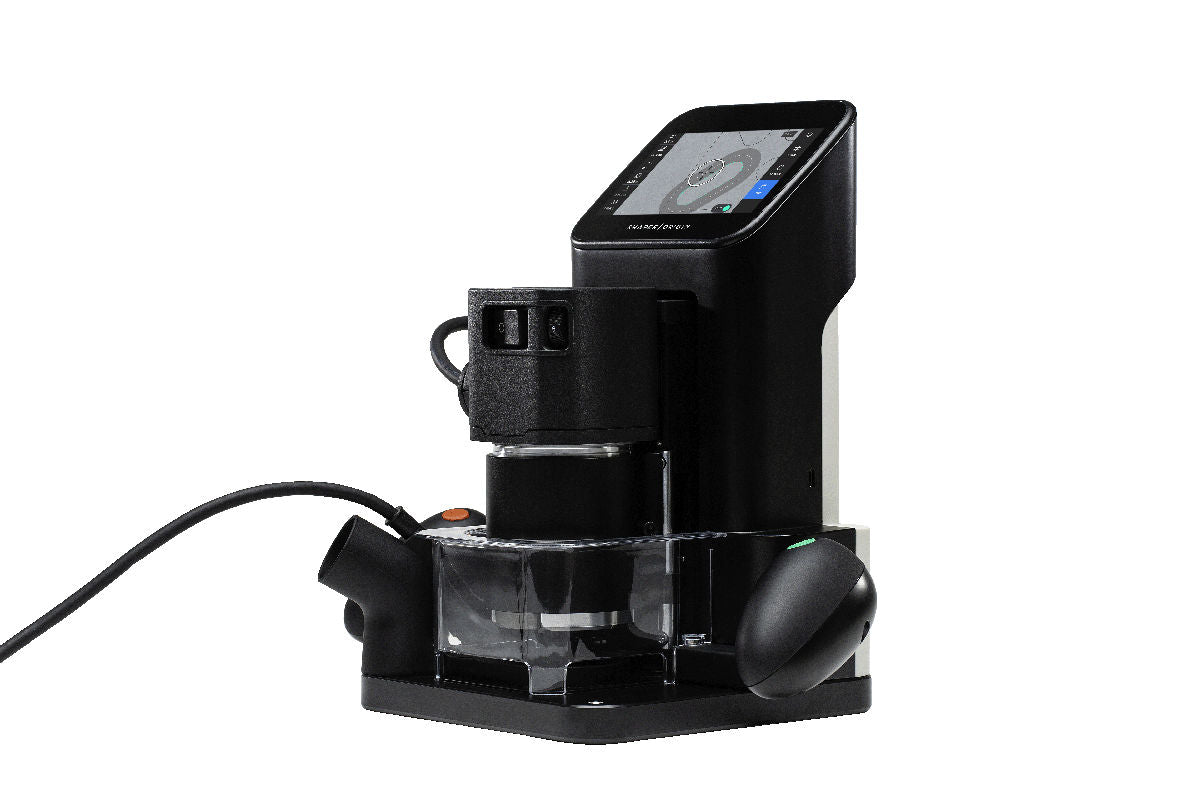

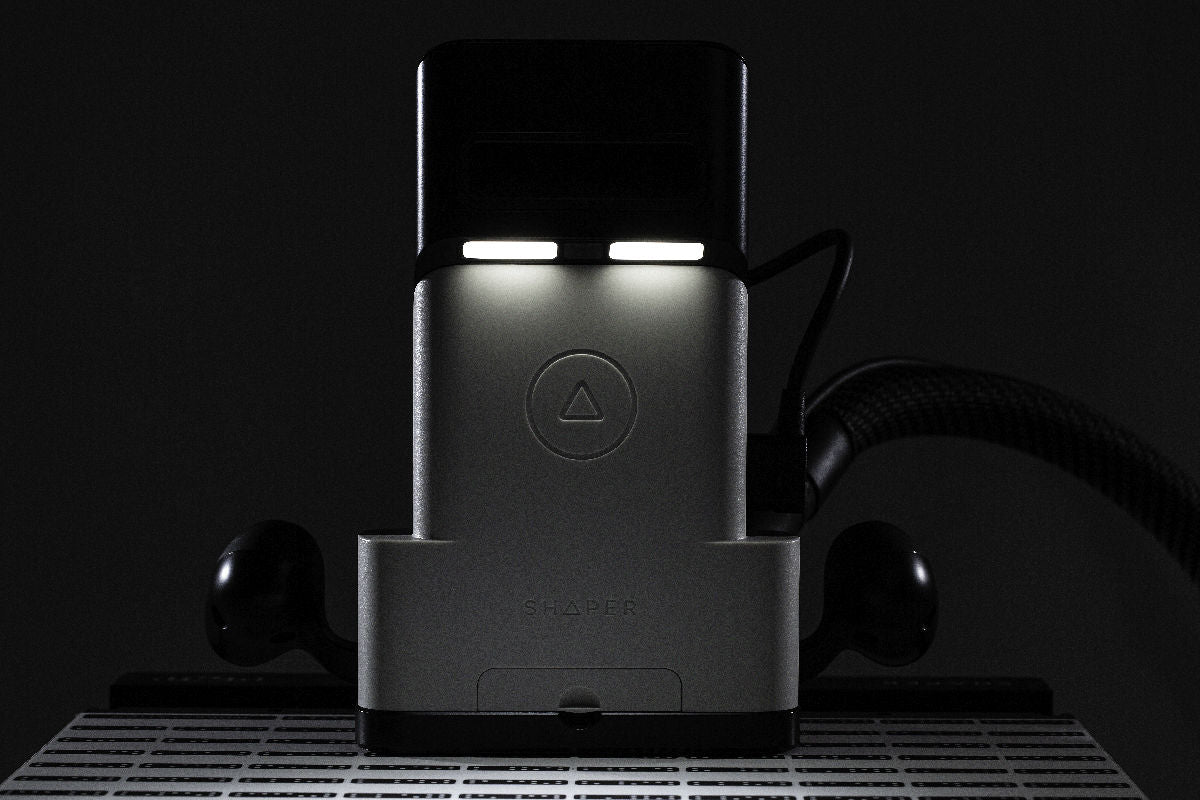

Shaper Origin Handheld CNC Router - Generation 2

What's New on Shaper Origin Gen2?

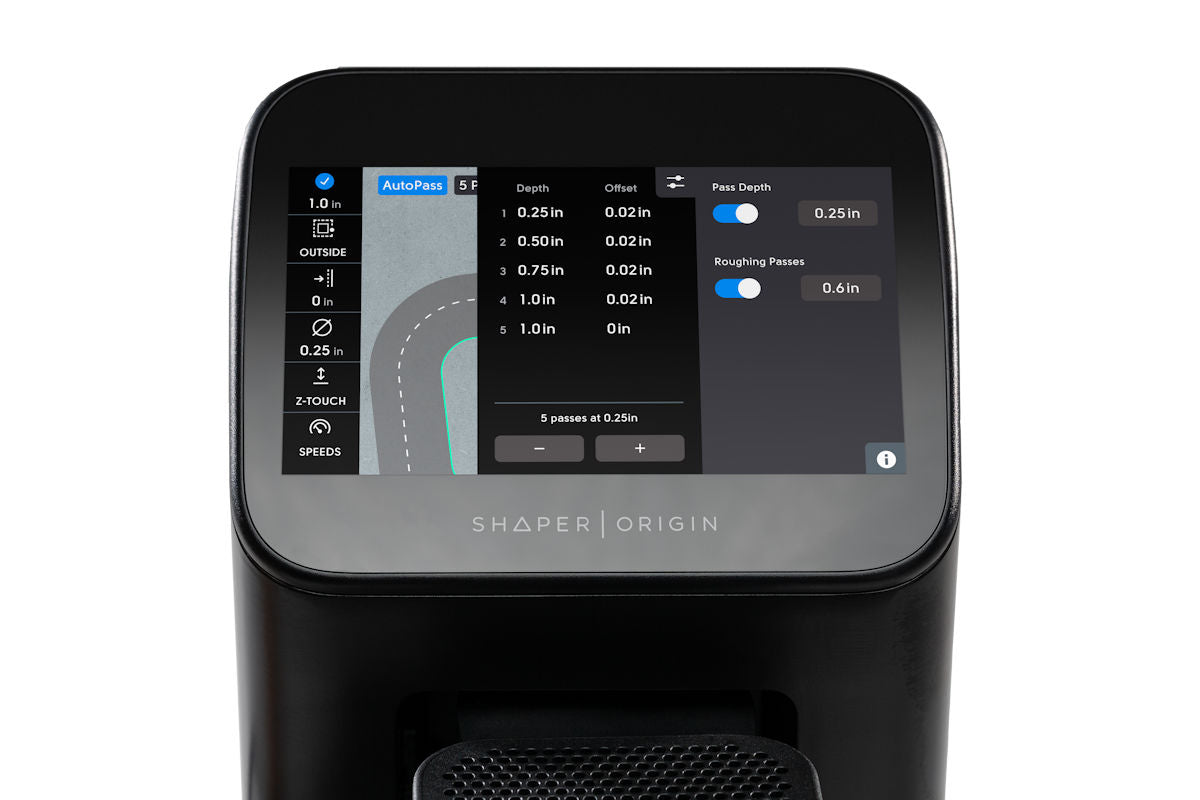

  • 25% larger screen & 2.4x resolution compared to Gen1
  • Aluminum Unibody
  • Improved Scanning Peformance with Gen2 Vision System

Shaper Origin is a tool like you've never seen. It performs many of the tasks of an ordinary router, but with more precision. It performs many of the tasks of a CNC router, but easier and with fewer restrictions. Origin locates itself in your workspace and makes continuous adjustments while cutting so you get the best result possible. Once you set up, select or upload your pattern, route following the path displayed on the screen. Origin will adjust to keep the cut in the right place. If you veer off too far, it will automatically raise the cutter out of the workpiece.

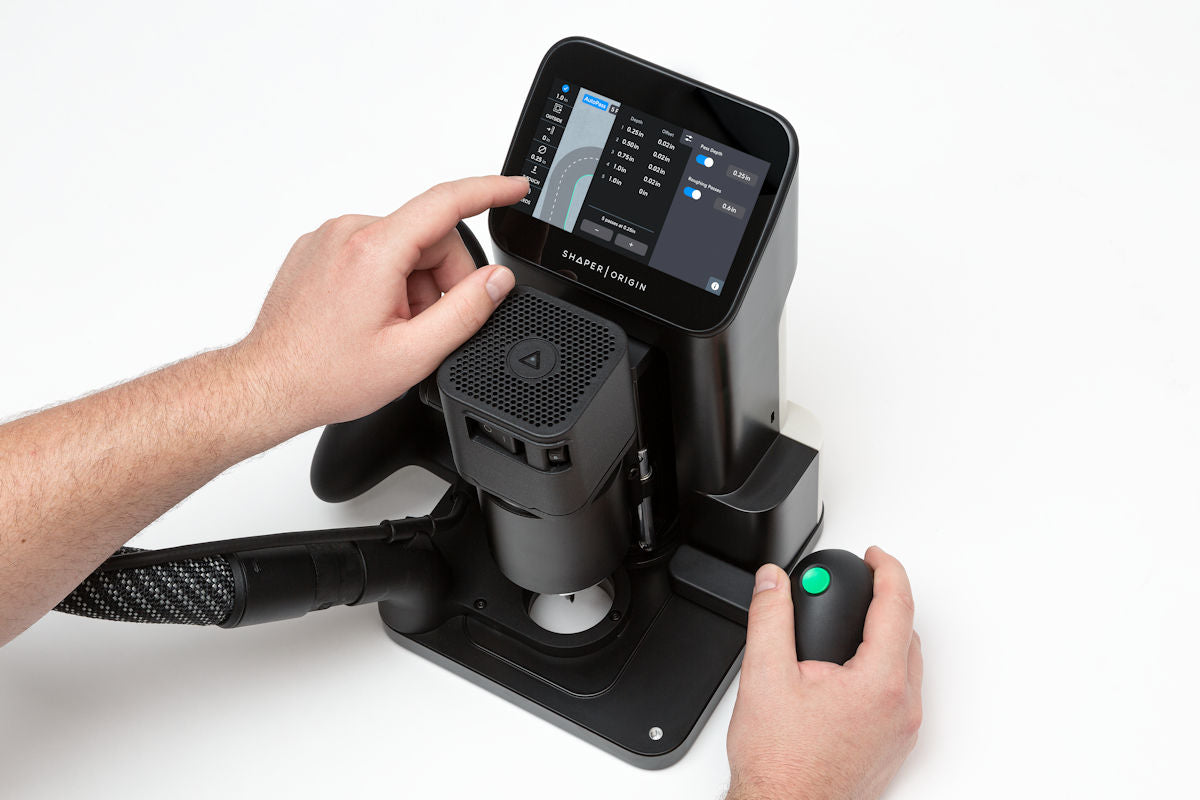

Origin doesn't require a computer to run. You can design on-tool or transfer design files from the ShaperHub online library. If you prefer to make detailed designs on your computer, Origin can handle that, too. Origin's control unit has a capactive full color touch screen and WiFi to transfer design files and softare updates. No WiFi? You can load design files through the USB port. Origin uses standard vector files (.SVG).

The Shaper SM-1 Spindle Motor was designed in cooperation with Festool, who makes it to their usual high standards. It has load-compensating speed control, soft start and safety cutoff for overload and overheating.

Origin's dust port accepts standard 27mm & 36mm dust hoses (like Fein & Festool). It also comes with a 6.5ft adapting hose that fits most common shop vacuums.

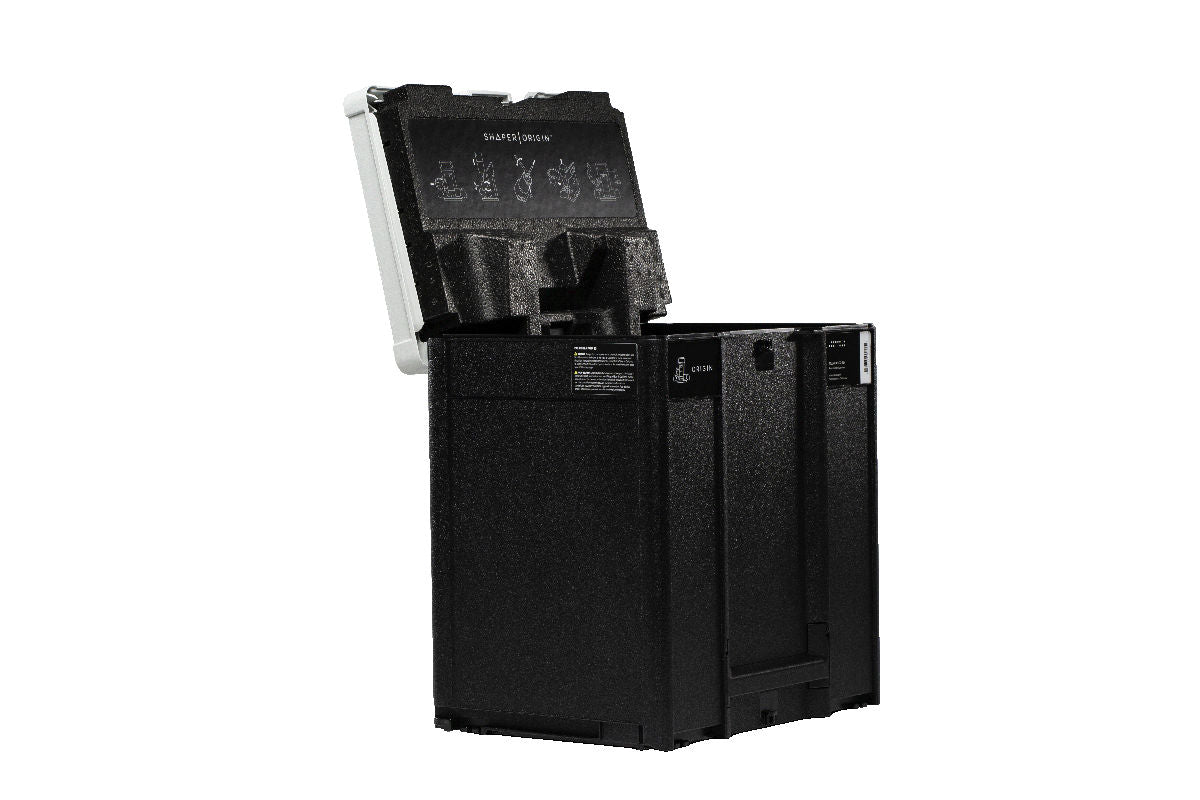

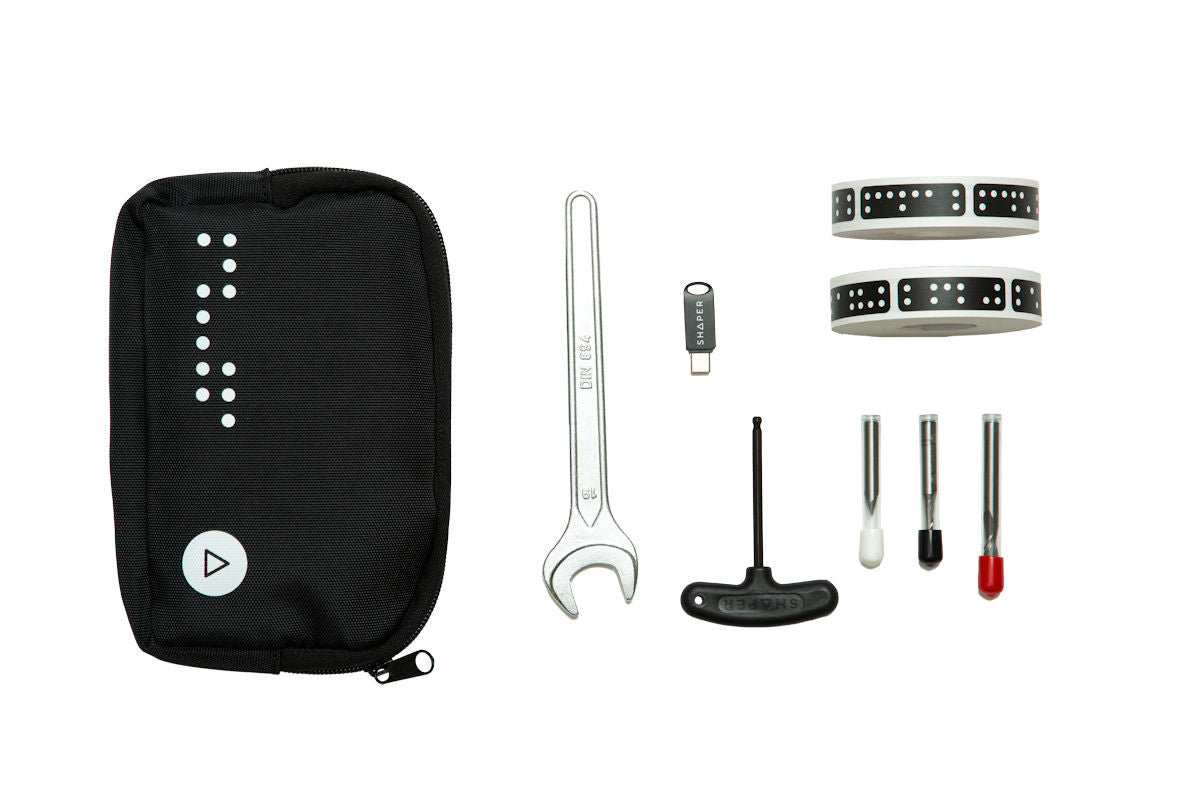

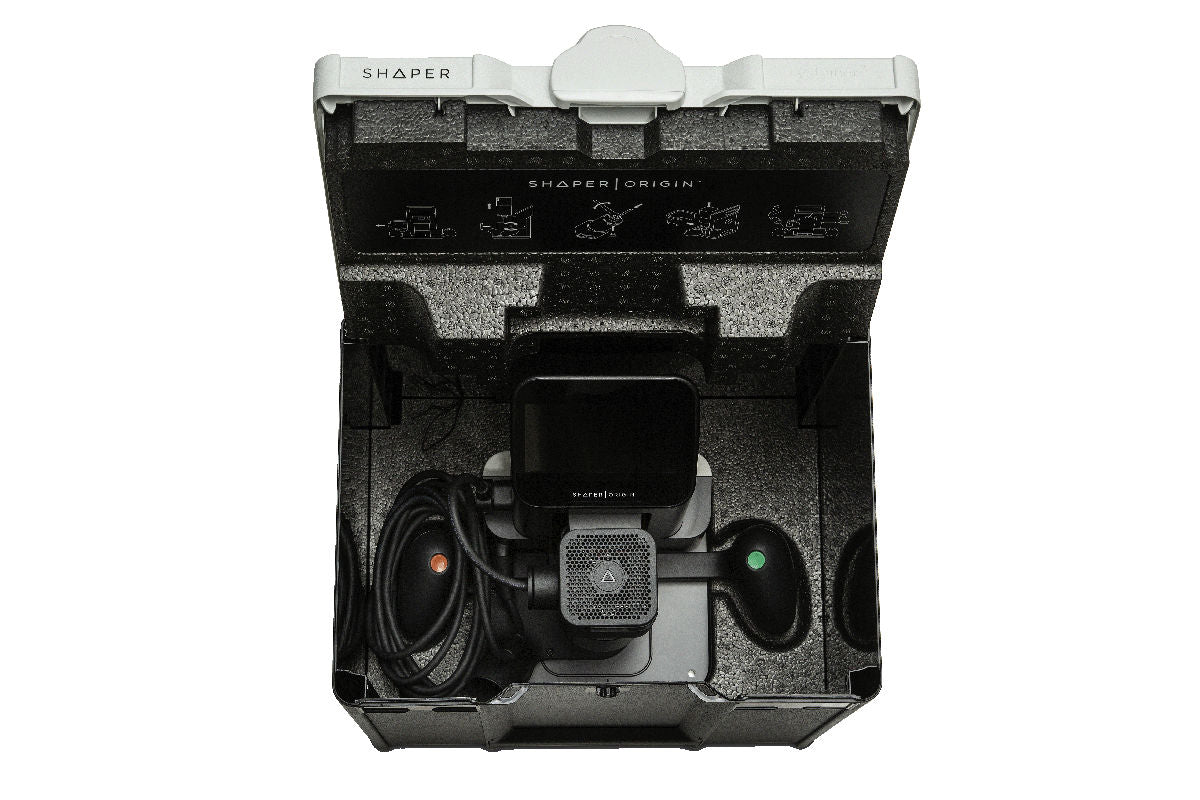

The Shaper Origin comes with everything you need to get started right out of the box: the three most popular cutters, two rolls of ShaperTape and all required accessories. Everything is stored in a custom Tanos T-Loc Systainer 5.

Shaper Pro Care

Shaper Pro Care is designed with the professional Origin owner in mind. Enhanced support and Hot Swap repairs reduce the possibility of project delays and help ensure that you meet your deadlines

  • Rapid replacement - in the event of a failure, a replacement will be shipped immediately, without waiting for return of the problem tool.
  • Enhanced support — live support over the phone Monday - Friday 9am-5pm Pacific time. Phone support only available in English at this time.

  • PLEASE NOTE: Shaper Pro Care must be purchased with the tool and cannot be added later.

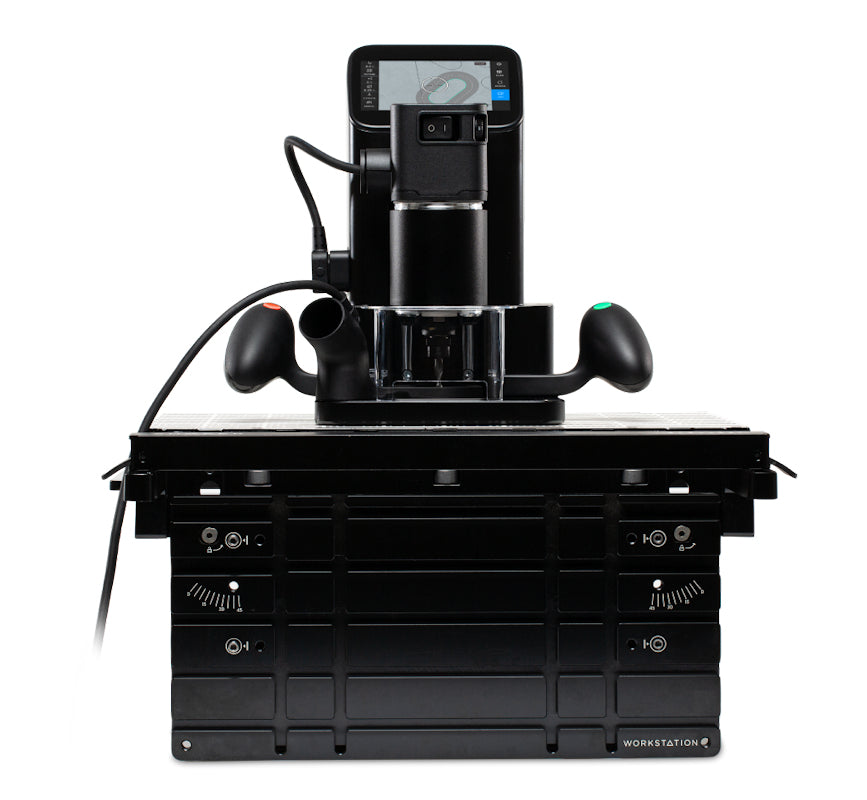

Shaper Workstation

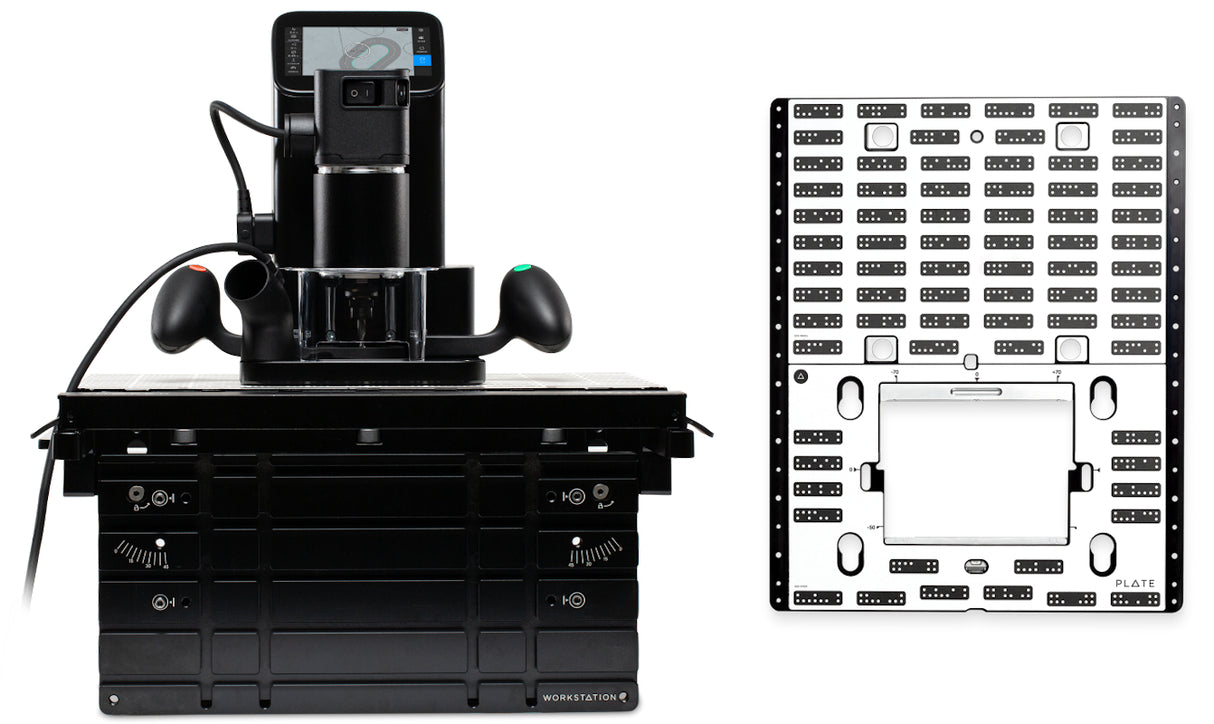

When you order the Shaper Origin packaged with the Shaper Workstation, you'll save $100.

30 Day Risk-free Trial

You have 30 days to decide if Origin is right for you. If not, return the tool in its original packaging for a complete refund — just pay shipping!

Specifications
  • Input Power — 120VAC, 60Hz. 7A
  • Spindle Motor Power — 720 watt
  • Spindle Motor Speed — 10,000-26,000 RPM
    with load compensating speed control
  • Depth Control — 43mm (1.7") total z-axis travel
  • Weight — 14.5 lbs
  • Dimensions — 13-3/4" wide (handle-to-handle) x 7-3/4" deep x 11-3/4" high
  • Dust Port — 34mm (1-5/16") ID, 39mm (1-9/16") OD —Accepts standard 27mm & 36mm dust hoses (Festool & Fein type)
Included



When using the Shaper Origin, many projects will require the use of double stick tape to hold you workpiece in place. We've been carrying the tape that Shaper recommends for years. It's strong enough to hold turning projects on the lathe so it should hold your Shaper projects securely. We suggest that you order the 1-1/2" or 3" tape. The last thing you want is your workpeice coming loose while you're routing.

Due to Shaper policy, Highland Woodworking cannot ship Shaper products outside the U.S. Any Shaper order that we ship requires a U.S. shipping address.
