Earlex Tip and Needle Kit for Pro-8 Spray Guns
Backorder Item
This item is currently on backorder. We are accepting orders and will ship as soon as stock is replenished.
Satisfaction Guarantee
Satisfaction Guarantee
If for any reason you are not satisfied with any stock item purchased from Highland Woodworking, return it to us within 60 days of receipt (30 days for Festool tools) and we will promptly replace it or refund the purchase price of that item, according to your preference.
Click for more information.
Shipping & Delivery
Shipping & Delivery
Orders are processed soon after receipt and are usually shipped within 2 business days via FedEx ground or US Mail, depending on location and weight.
We do not ship combustible materials by air.
If we are out of stock on an item, we will either back order or cancel that item according to any special instructions entered with your order or our ability to source the product.
Visit our complete Shipping Information Page for more detailed information.
California Customers - Prop 65 Warning
California Customers - Prop 65 Warning
This product may expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, see www.P65Warnings.ca.gov.
Did you find an error on this page?
Did you find an error on this page?
We have made every effort to ensure our product pages are accurate and fully functioning. However, even we may miss something! If you see an error, please email us at feedback@highlandwoodworking.com. Include a link to the page, or the SKU number of the product, and short description of what’s wrong and we will address it. Thank you!
Earlex Pro-8 Spray Gun
In order to achieve maximum finish quality when spraying with the Earlex Pro-8 Spray Gun , you need to match the needle, fluid tip and air cap to the finish and job. The needle and fluid tips are matched and must be used together (only use the 1.3mm needle with the 1.3mm fluid tip and so on.) The air caps can be used with a range of different needle/fluid tip sizes depending on whether you are spraying light or heavy coats. See the chart below for needle/fluid tip/air cap compatibility and selection.

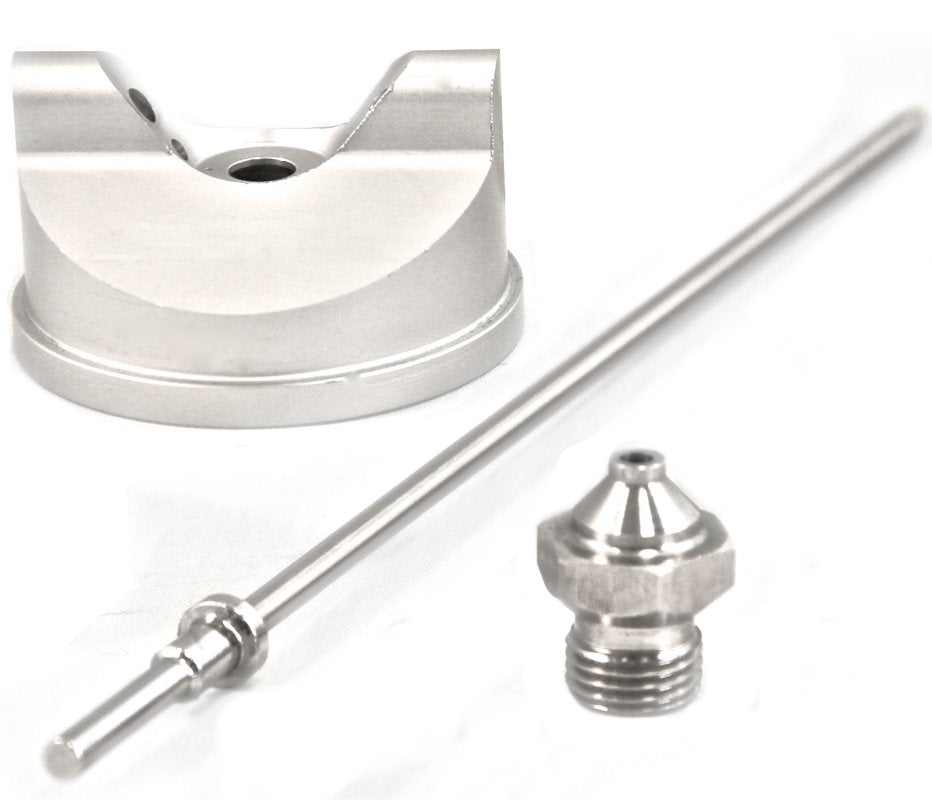

Each kit includes one needle with fluid tip and the standard size air cap for that needle. All three components are stainless steel.
|
Needle &
Tip Size |
Air Cap
Size |
Use | HW # | Earlex # | ||
|---|---|---|---|---|---|---|
|
0.8mm
0.031" |
0.8 - 1.0mm |
extremely fine atomization
dye, thinned water based finish (detailing, extreme control) |
192969 | PACC08 | ||
|
1.0mm
0.039" |
1.0 - 1.5mm |
very, very fine atomization
water based finish, thinned lacquer lacquer automotive finish (high gloss finish) |
192970 | PACC10 | ||
|
1.3mm
0.051" |
1.3 - 2.0mm |
very fine atomization
water based finish, lacquer, thinned shellac, thinned poly, stain (furniture/cabinet finish) |
192971 | PACC13 ♦ | ||
|
1.5mm
0.059" |
1.3 - 2.0mm |
fine atomization
water based finish, lacquer, shellac poly, stain (furniture, cabinet, trim finish) |
192972 | PACC15 | ||
|
1.8mm
0.071" |
1.5 - 2.5mm |
medium atomization
water based finish, poly, thinned oil & latex paint(furniture, cabinet, trim finish) |
192973 | PACC18 | ||
|
2.0mm
0.078" |
1.5 - 2.5mm |
coarse atomization
varnish, poly, oil & latex paint (trim, outdoor furniture finish) |
192974 | PACC20 | ||
|
2.5mm
0.098" |
2.5mm (wide) |
very coarse atomization
thick latex paint (walls, deck, fence finish) |
192975 | PACC25 ♦ | ||
| ♦ The 1.3mm needle & tip comes standard in the Earlex Pro-8 Gun (both gravity and pressure versions). | ||||||
| ♦ The 2.5mm needle & tip performs best when used with a 3-stage turbine. | ||||||
