ECE 600mm Frame Saw

From $109.00
Shipping calculated at checkout.
Saw

Satisfaction Guarantee

If for any reason you are not satisfied with any stock item purchased from Highland Woodworking, return it to us within 60 days of receipt (30 days for Festool tools) and we will promptly replace it or refund the purchase price of that item, according to your preference.

Click for more information.

Shipping & Delivery

Orders are processed soon after receipt and are usually shipped within 2 business days via FedEx ground or US Mail, depending on location and weight.

We do not ship combustible materials by air.

If we are out of stock on an item, we will either back order or cancel that item according to any special instructions entered with your order or our ability to source the product.

Visit our complete Shipping Information Page for more detailed information.

California Customers - Prop 65 Warning

This product may expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, see www.P65Warnings.ca.gov.

Did you find an error on this page?

We have made every effort to ensure our product pages are accurate and fully functioning. However, even we may miss something! If you see an error, please email us at feedback@highlandwoodworking.com. Include a link to the page, or the SKU number of the product, and short description of what’s wrong and we will address it. Thank you!

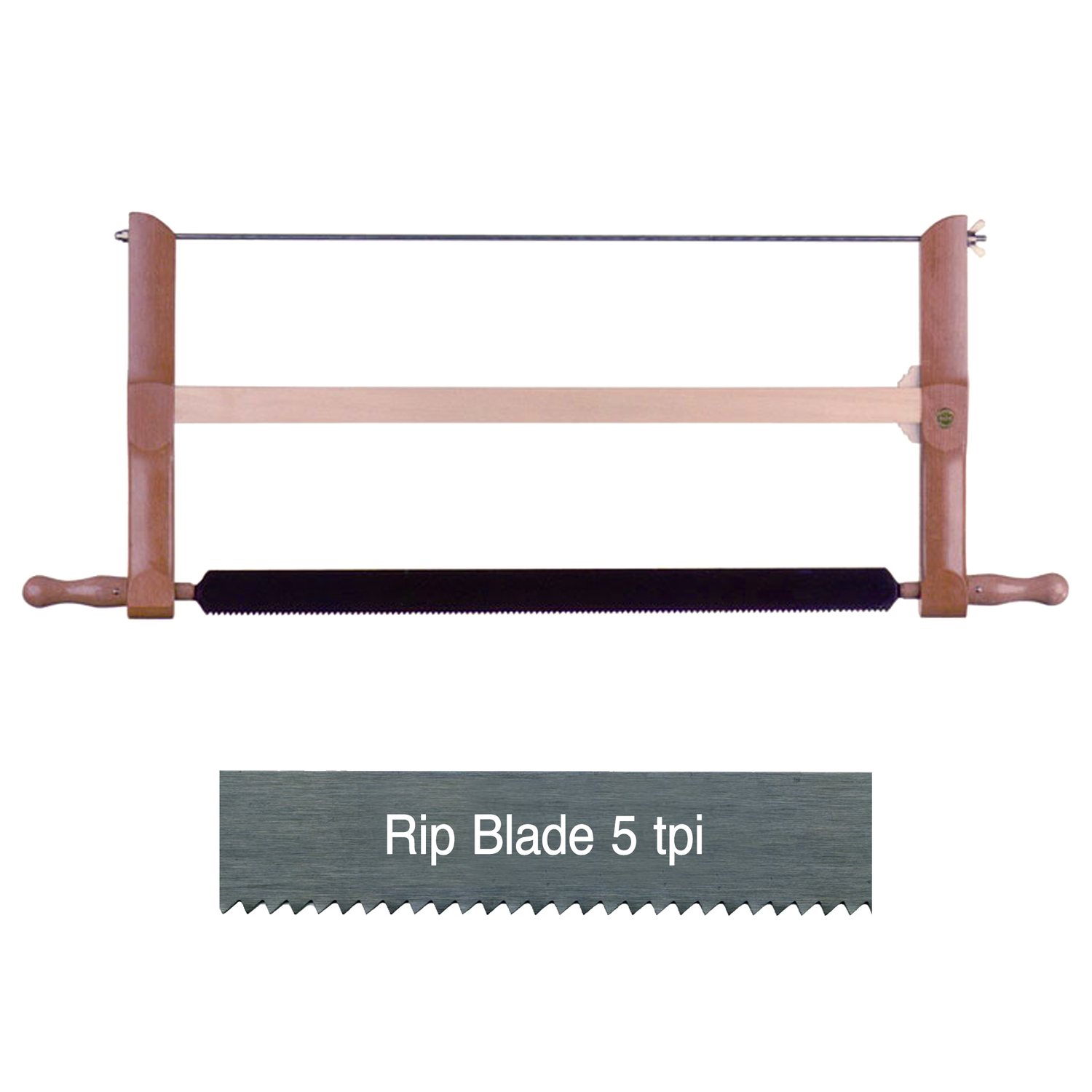

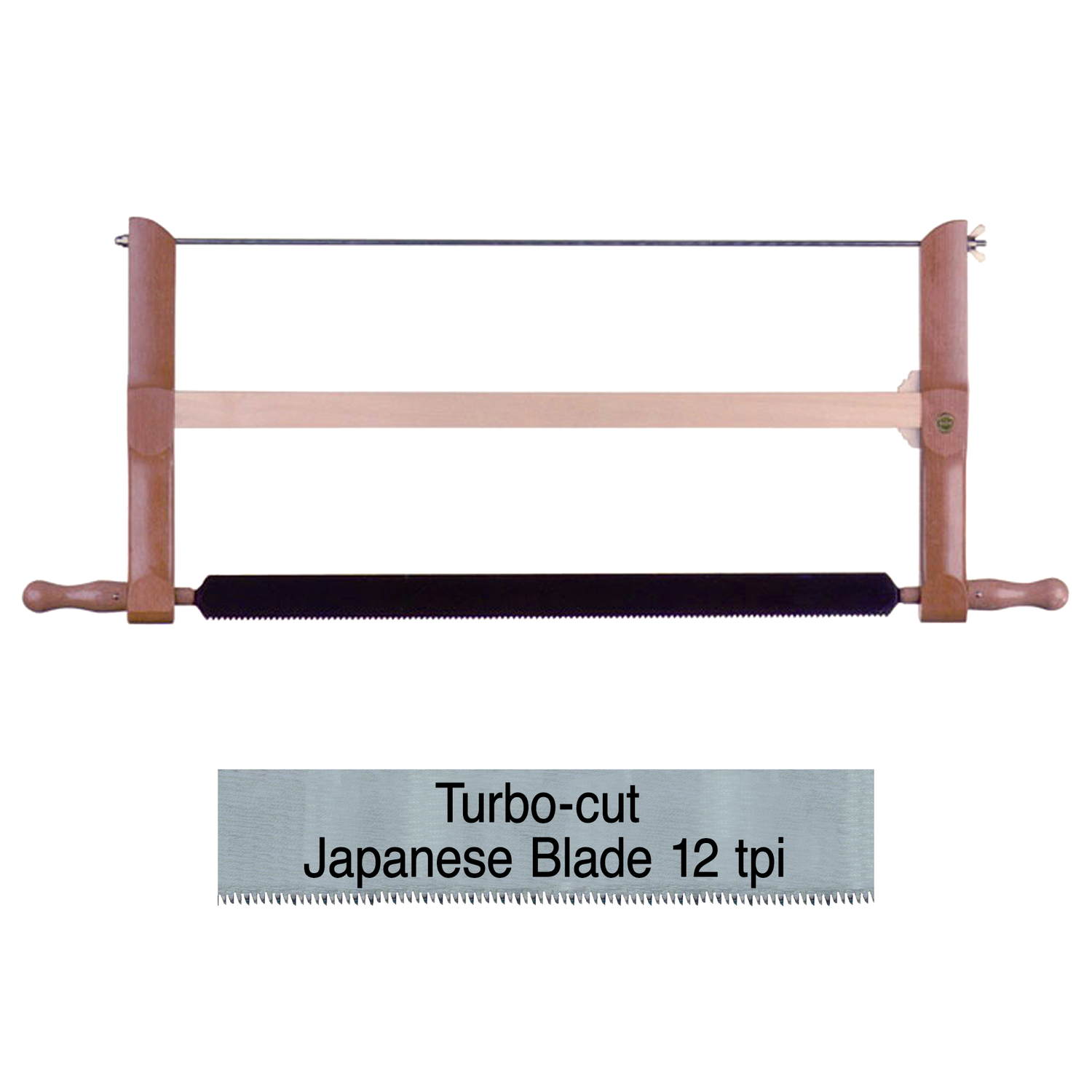

This frame saw has European hardwood vertical arms and handles with a pine horizontal stretcher to save weight. Tension is applied via a wing nut at one end of a tensioning rod that links the vertical arms. The blade can be rotated through 360° for better cutting angles or to store the blade with the teeth in. Comes with a 5 tpi rip blade or 12 tpi Turbo-Cut Japanese Blade.

This saw is the same as our ECE 700 mm Frame Saw in all aspects except length and weight. This saw is a little lighter and a little shorter making it easier to manuever. (It also has a five optional blades, while the 700 mm saw only offers three.)

We offer a range of optional blades to fit this saw.

Made in Germany by E. C. Emmerich.

Specfications
  • Overall blade length - 600 mm (23-5/8")
  • Hole-to-hole Blade length - 577 mm (22-3/4")
  • Blade width (5 tpi rip) - 40 mm (1-9/16")
  • Blade thickness - 0.75 m (.030")
  • Kerf - 1.5 mm (.060")
  • Maximum cut depth - 150 mm (6")
    (With blade in straight position)
  • Stretcher to blade centerline - 130 mm (5-1/8")
  • Outer dimensions - 345 x 895 mm (13-1/2" x 35-1/4")
  • Weight - 1.04 kg (2.3 lb)
Features
  • Beech cheeks and handles
  • Pine stretcher
  • Zinc plated solid tension rod with wing nut
  • Re-sharpenable blade
