Record Power SC1 and SC2 Lathe Chuck Jaws

From $39.99
Shipping calculated at checkout.
Type

Satisfaction Guarantee

If for any reason you are not satisfied with any stock item purchased from Highland Woodworking, return it to us within 60 days of receipt (30 days for Festool tools) and we will promptly replace it or refund the purchase price of that item, according to your preference.

Click for more information.

Shipping & Delivery

Orders are processed soon after receipt and are usually shipped within 2 business days via FedEx ground or US Mail, depending on location and weight.

We do not ship combustible materials by air.

If we are out of stock on an item, we will either back order or cancel that item according to any special instructions entered with your order or our ability to source the product.

Visit our complete Shipping Information Page for more detailed information.

California Customers - Prop 65 Warning

This product may expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, see www.P65Warnings.ca.gov.

Did you find an error on this page?

We have made every effort to ensure our product pages are accurate and fully functioning. However, even we may miss something! If you see an error, please email us at feedback@highlandwoodworking.com. Include a link to the page, or the SKU number of the product, and short description of what’s wrong and we will address it. Thank you!

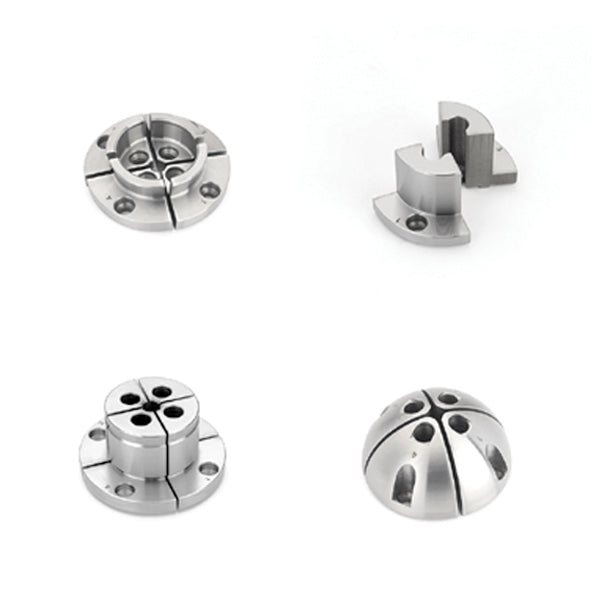

Record Power offers a four sets of jaws to grip which go on their SC1 & SC2 . The Record Power jaws offer the ability to rough turn a bowl, re-chuck a bowl to finish turn the outside, turn a box, drill a pen blank and many other operations.

See detailed grip size specifications below.

40mm Standard Jaws

Featuring a specialised dovetail profile in expansion and the superb grip of the hawk beak design on contraction, these versatile jaws are a great all-round set, ideal for small bowl work and also spigot turning. They are supplied as standard with the SC1 and SC2 chucks.

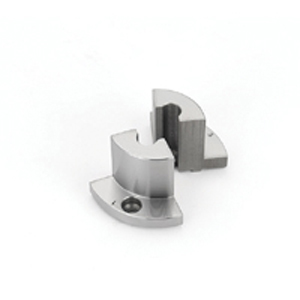

Pen Jaws

These jaws are perfect for drilling pen blanks, eliminating the need for a drill press and offering much more accurate results because the deep grip to all four sides ensures excellent holding power. Drilling on the lathe means the feed speed of the drill bit is under complete control, so a superior finish can be achieved on a wide range of materials. These jaws are also useful for working on small finials and similar projects, as in addition to their strong grip, the work piece is moved forward from the chuck to allow greater access.

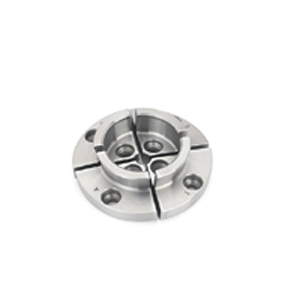

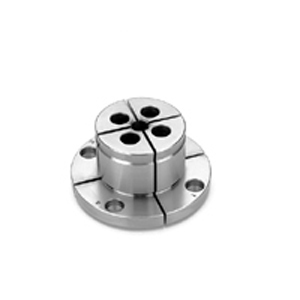

Pin Jaws

We have set the range of these bodies to be compatible with most tea light holder designs (on either body) as well as many salt or pepper pot designs and these offer an excellent expansion grip for many projects. The end of the jawis dovetailed so can be used on its own as a delicate grip – or the jaw can be inserted full length using the back jaw face as a register and providing wall support to prevent the workpiece being knocked from a dovetail only grip. The dovetail at the end provides additional security in expansion mode.

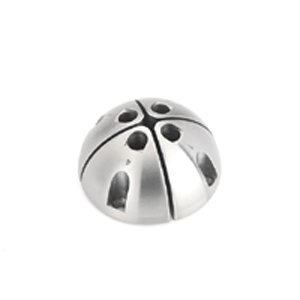

Dome Jaws

These jaws are able to hold the smallest work pieces. The convex internal radius on each jaw is designed to avoid damage to small and fragile work. It allows the user to get very close to support thin work as safely as possible. It also allows good access to work close to the base of a work piece without the tool fouling on the jaws. For maximum support always ensure the workpiece features a spigot long enough to be supported along the full length of the jaws’ internal surface.

SC1 Chuck SC2 Chuck
Type Int Grip Ext Grip
Round		 Ext Grip
Square		 Int Grip Ext Grip
Round		 Ext Grip
Square
62303

Std Jaws

1 -9/16" - 1 -15/16"

(39-49.5mm)

1 -1/8" - 1 -9/16"

(29-39mm)

13/16" - 1 -5/16"

(21-33mm)

1 -9/16" - 2 -1/2"

(39-63mm)

1 -1/8" - 2"

(29-51mm)

13/16" - 1 -13/16"

(21-46.5mm)
62305

Pen Jaws		 n/a

9/16" - 13/16"

(14-20mm)

9/16" - 15/16"

(14-24.5mm)

 n/a

9/16" - 13/16"

(14-20mm)

9/16" - 1"

(14-26mm)
62302

Pin Jaws

1 -9/16" - 1 -7/8"

(39-47.5mm)

1/4" - 9/16"

(6-14.5mm)

3/16" - 1/2"

(4.5-12mm)

1 -9/16" - 2 -3/8"

(39.5-60mm)

1/4" - 1 -1/16"

(6-26mm)

3/16" - 1"

(4.5-25mm)
62301

Dome Jaws		 n/a

3/16" - 7/16"

(4-11.5mm)

3/16" - 7/16"

(4-11.5mm)

 n/a

3/16" - 1"

(4-25.5mm)

3/16" - 1"

(4-25.5mm)
