Record Power SC1 Mini Geared Scroll Chuck
Backorder Item
This item is currently on backorder. We are accepting orders and will ship as soon as stock is replenished.
Satisfaction Guarantee
Satisfaction Guarantee
If for any reason you are not satisfied with any stock item purchased from Highland Woodworking, return it to us within 60 days of receipt (30 days for Festool tools) and we will promptly replace it or refund the purchase price of that item, according to your preference.
Click for more information.
Shipping & Delivery
Shipping & Delivery
Orders are processed soon after receipt and are usually shipped within 2 business days via FedEx ground or US Mail, depending on location and weight.
We do not ship combustible materials by air.
If we are out of stock on an item, we will either back order or cancel that item according to any special instructions entered with your order or our ability to source the product.
Visit our complete Shipping Information Page for more detailed information.
California Customers - Prop 65 Warning
California Customers - Prop 65 Warning
This product may expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, see www.P65Warnings.ca.gov.
Did you find an error on this page?
Did you find an error on this page?
We have made every effort to ensure our product pages are accurate and fully functioning. However, even we may miss something! If you see an error, please email us at feedback@highlandwoodworking.com. Include a link to the page, or the SKU number of the product, and short description of what’s wrong and we will address it. Thank you!
The SC1 and SC2 are the first mini-chucks on the market to offer woodturners a premium-quality solution for those who regularly turn small, intricate items - bringing the world-renowned quality of the SC3 and SC4 to the mini-chuck market. The SC1 works in conjunction with a separately available insert, which means it can be used across a wide variety of lathes with different thread sizes, with a simple change of insert. It also makes a perfect partner to the SC4 chuck, as the inserts are a universal fit between both chucks. It also has a very compact 53.5 mm (2”) diameter body - giving easier access around the workpiece making it ideal for the turning of very small items.
Please choose the spindle size of your lathe above.

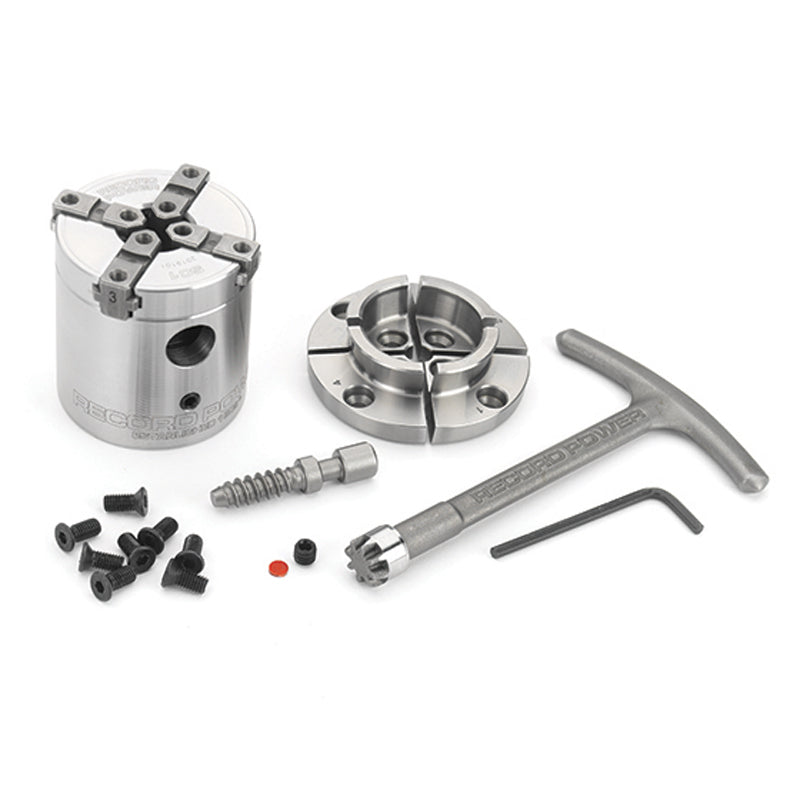

Includes:
- SC1 Chuck
- Compact 53.5 mm (2”) diameter body
- Ball-end Hex key
- Woodworm Screw — mounts in the jaws of the chuck converting it into a screw chuck with exceptional holding power.
- 40mm (1-1/2") Standard Jaws - External Gripping Capacity: 30 - 40 mm (1-3/16" - 1-1/2"). Internal Gripping Capacity: 40mm-50mm (1-1/2" - 2").
For all spindle sizes, a threaded insert is REQUIRED to adapt the chuck to fit your lathe.
See the chart below for the sizes available. If you do not see your size call us for assistance. Threaded Inserts are also sold separately, if you need a second one.
| Threaded Inserts | |
|---|---|
| Size | Lathes |
| 5/8" Smooth | Shopsmith |
| 3/4"-16tpi | Sears, Record, Rigid |
| 1"-8tpi | Some Delta, Jet, General, Rikon and many others |
| 1"-12tpi | Grizzly |
| 1-1/4"-8tpi | Some Delta, General, Powermatic, Jet, Rikon |
| 1-1/4"-8tpi | Nova |
| This is a general guide. If you are not certain which is the correct thread, check your lathe manual or call us. |
|
