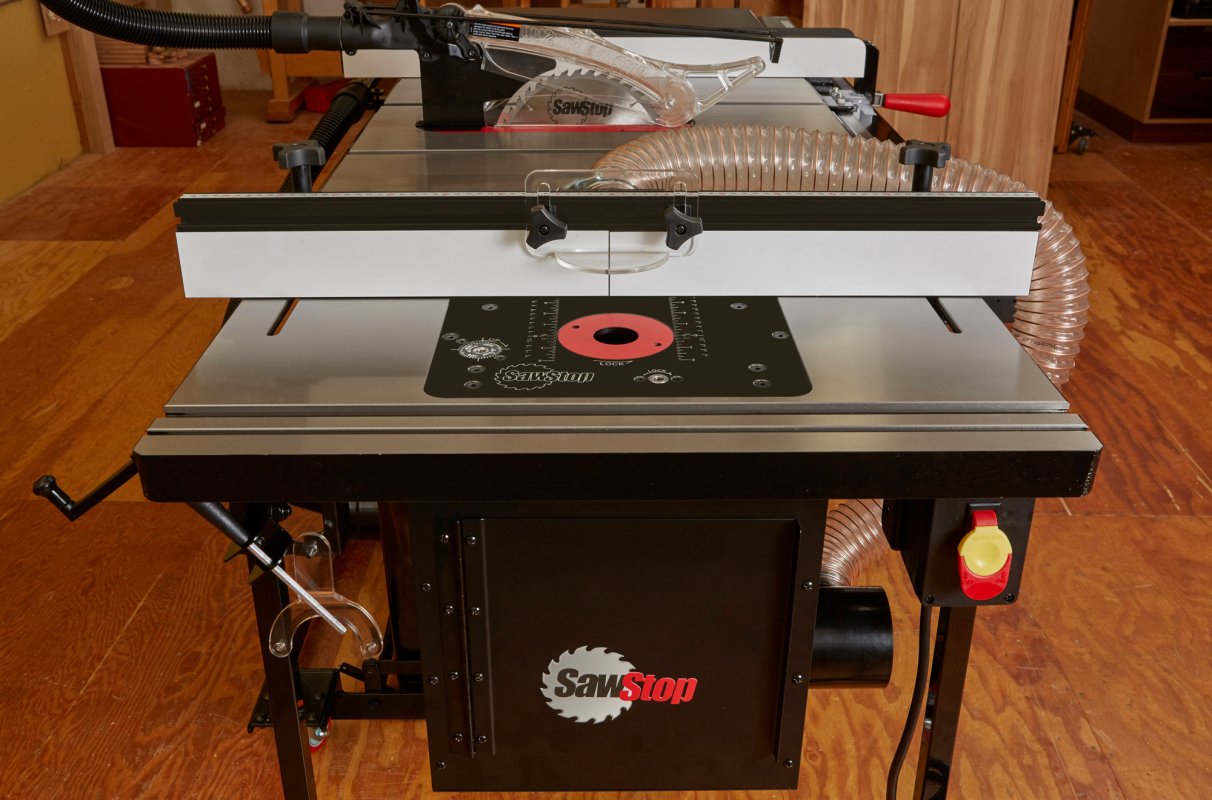

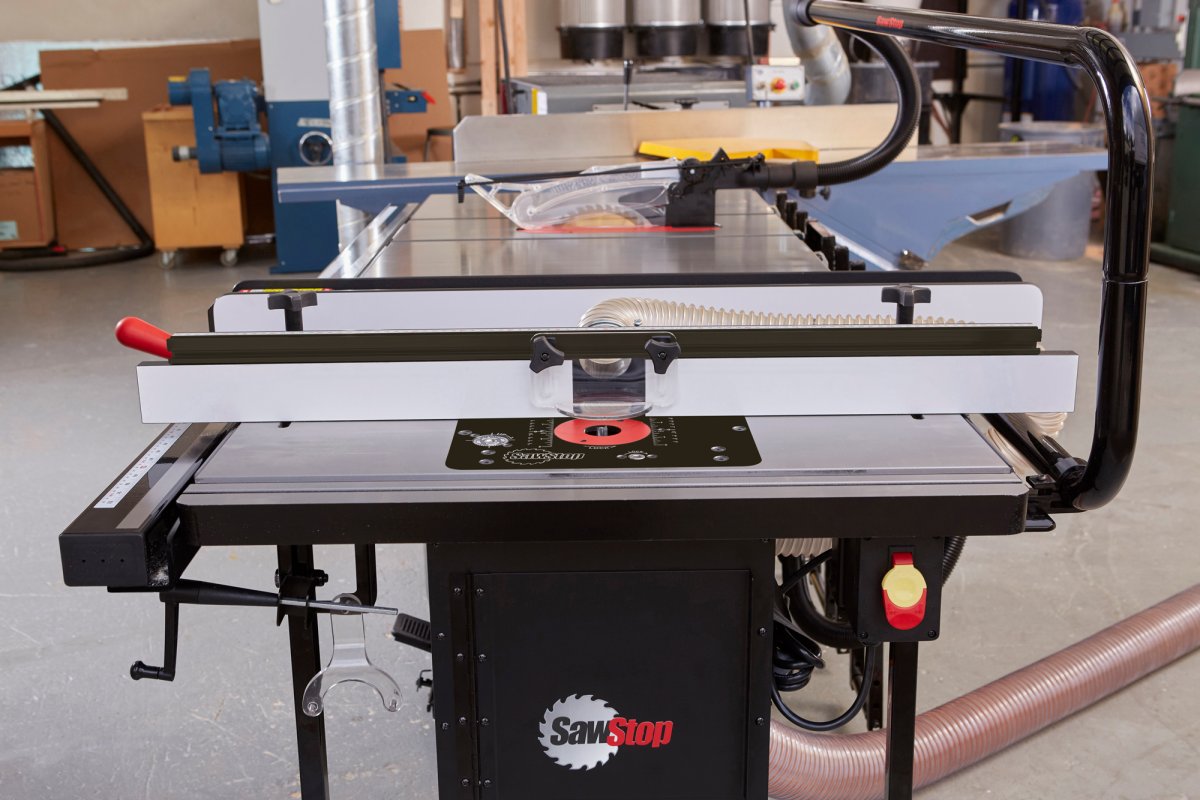

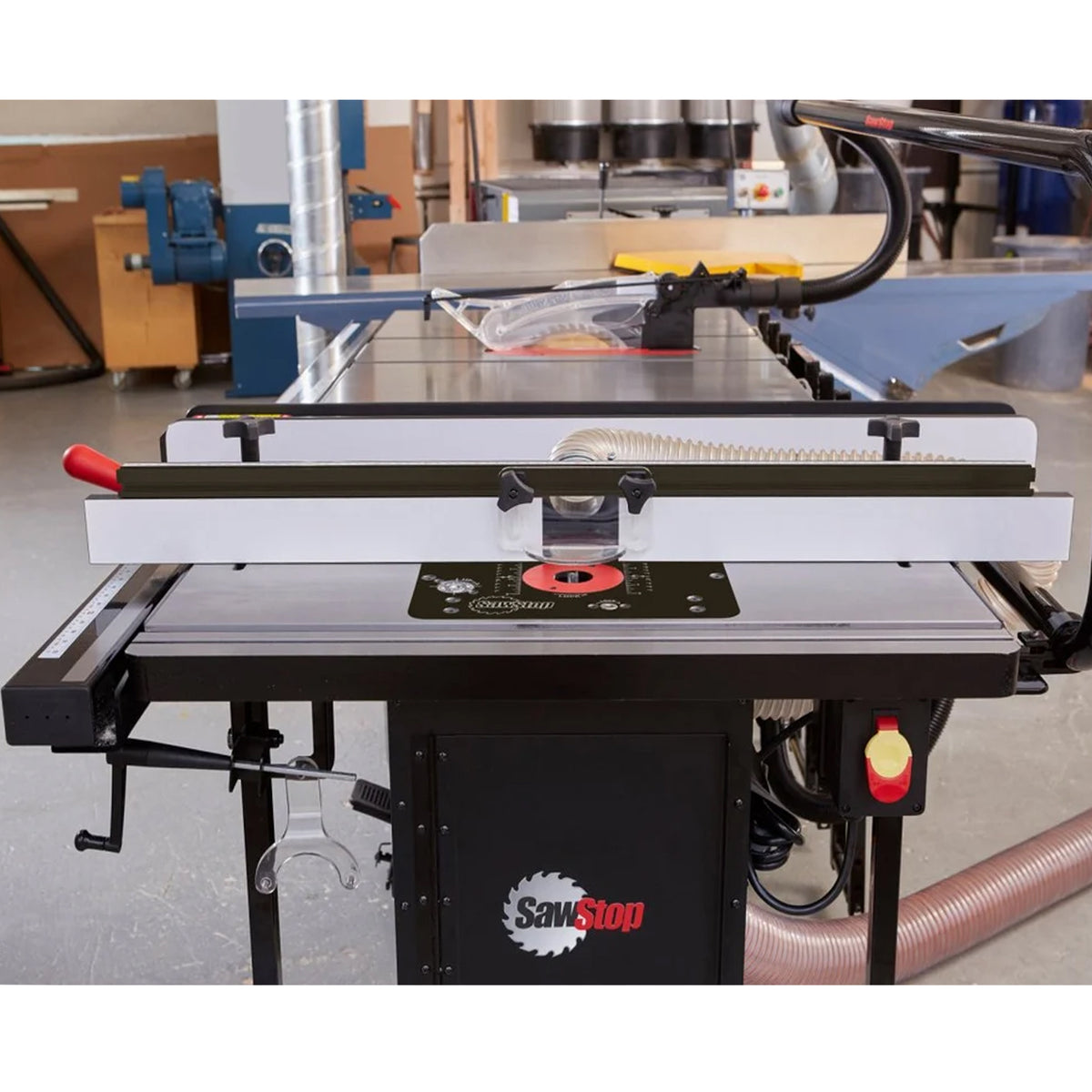

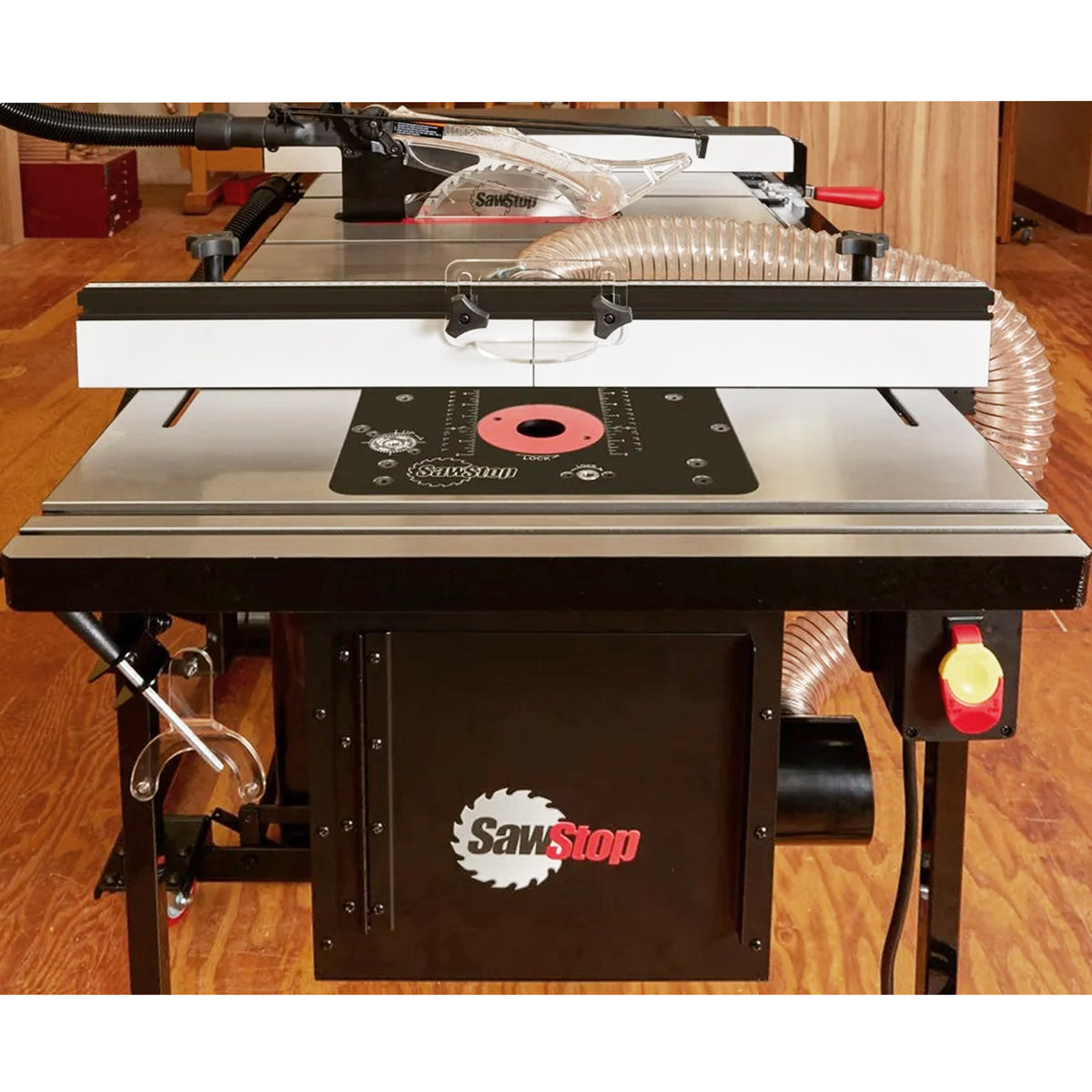

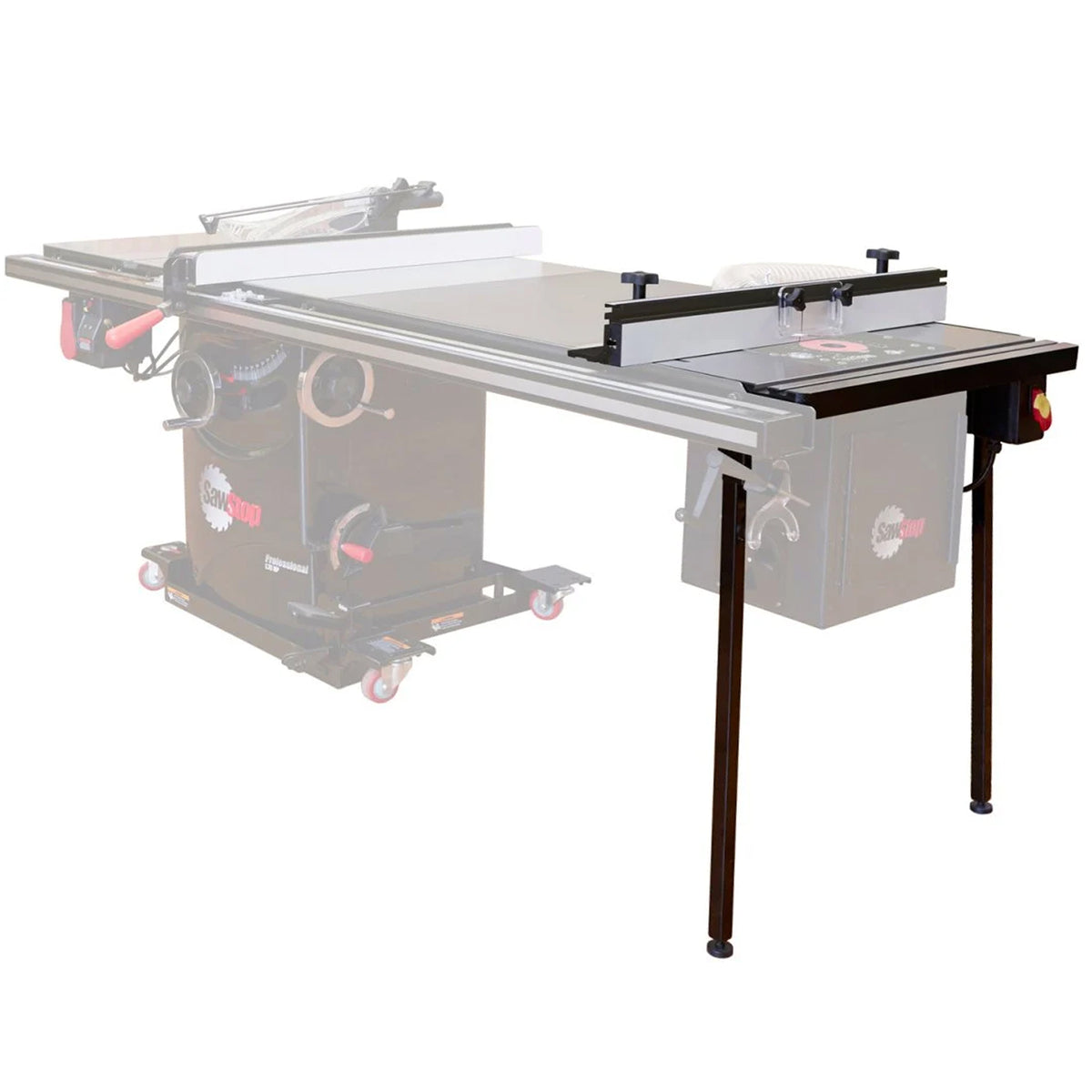

SawStop's In-Line Router Table Attachment gives you a complete elegant way to mount a router table on your SawStop table saw, giving you an excellent router table while saving space in your shop. All SawStop In-Line router tables feature hefty cast iron tops and large adjustable fences. The kits include mounting hardware and support legs for stability and a large switch so you can turn your router on and off easily.

Sizing

The Inline Router Table attachment for the Industrial Cabinet saw (ICS) is 30" deep. The Inline Router Table attachment for the Professional Cabinet saw (PCS) and Contractor's Saw (CNS)is 27" deep.

NOTE: SawStop's router tables DO NOT incorporate flesh-sensing safety technology. Be sure to read and follow safety instructions in the owner's manual for your router and use all standard shop safety precautions.

SawStop In-Line Router Table Attachment includes:

• Cast Iron Tabletop with 9-1/4" x 11-3/4" opening for router plate or router lift
• Fence Assembly
• External Power Switch for your router
• 2 Support Legs
• 2-1/4" Dust Port
• Adjustable Scales

Router Mount

The In-Line Router Table Attachment does not include a mount for your router. You'll need to purchase either an insert plate or a router lift in order to use the In-Line Router Table. SawStop offers a 4 Post Router Lift to fit their router tables, but any lift or plate that fits the 9-1/4" by 11-3/4" opening in the router table top will work. We offer the Kreg Precision Router Table Insert Plate , as well as the Kreg PRS5000 Precision Router Lift , which will fit the SawStop Router Table.

Table Saw Models

The In-Line Router Table Attachment fit requirements are precise and detailed. It can be confusing. If you need assistance, please call us at 1-800-241-6748.

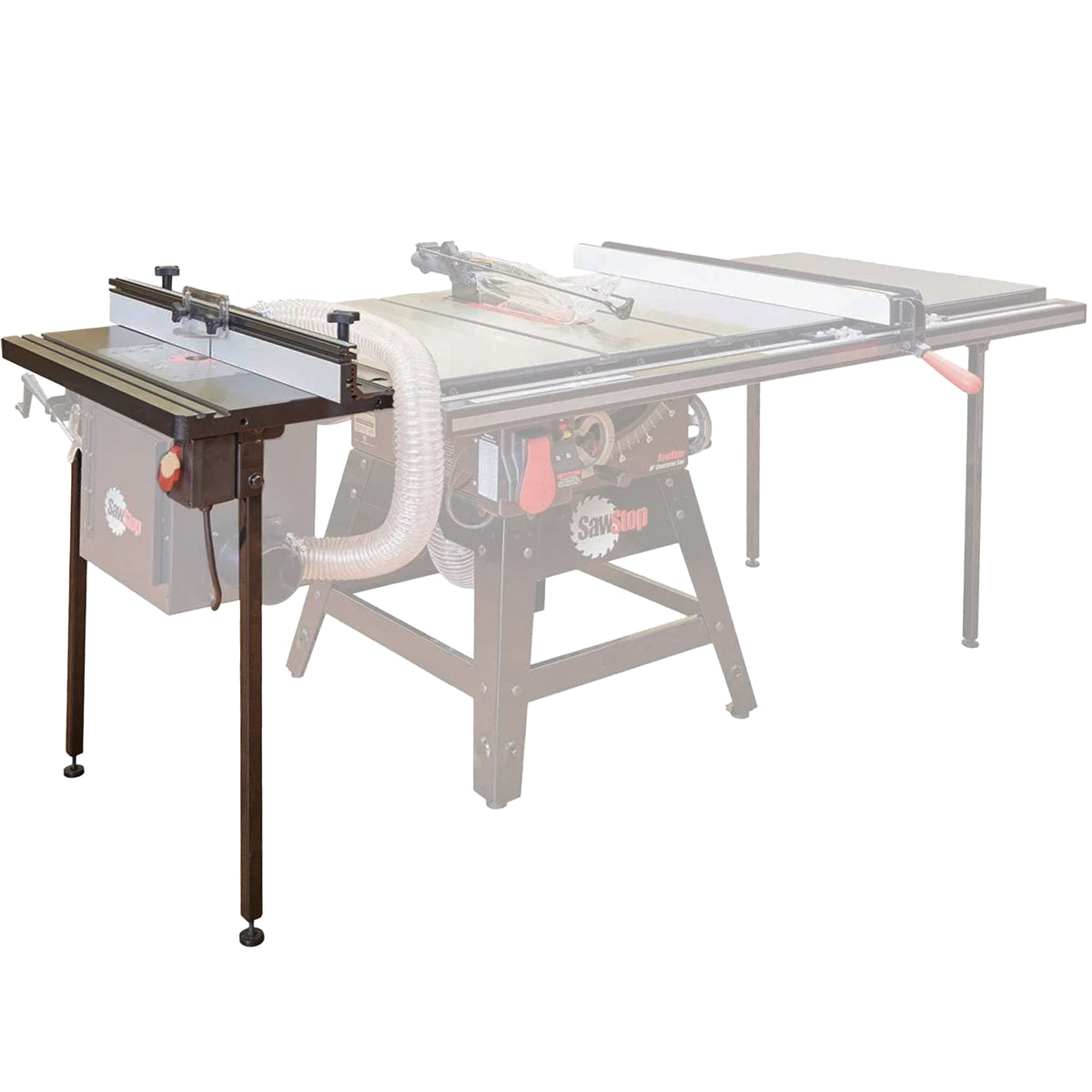

Contractor's Saw (CNS) & Professional Cabinet Saw (PCS)

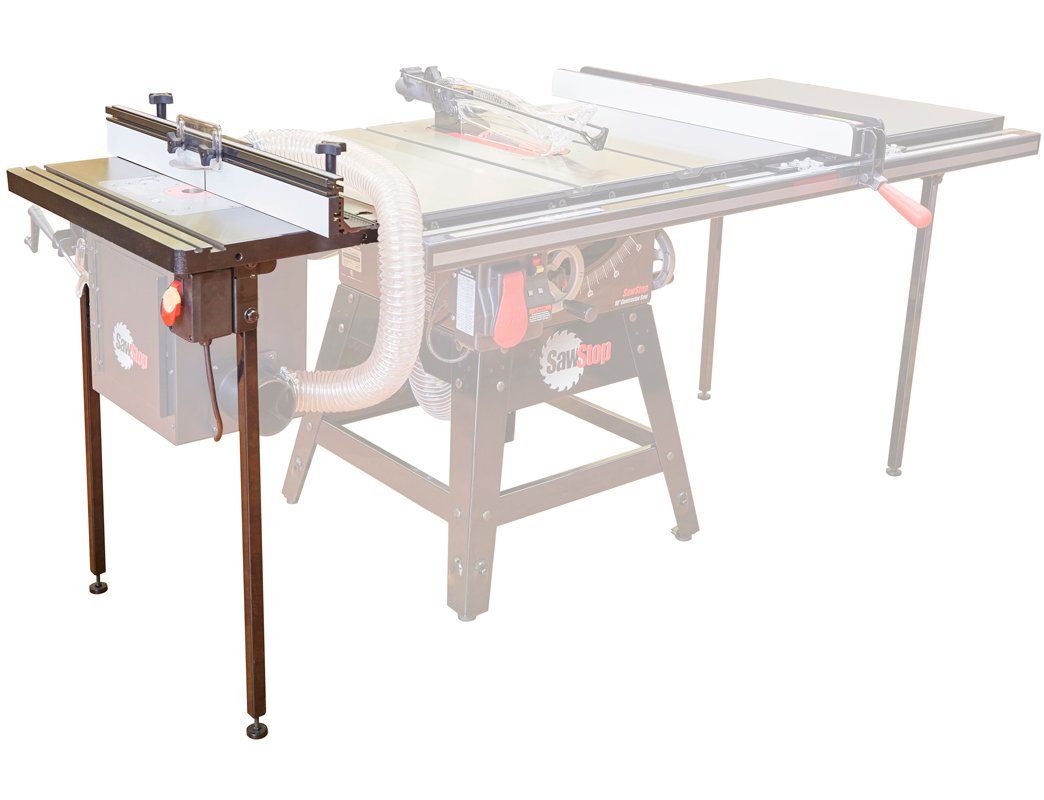

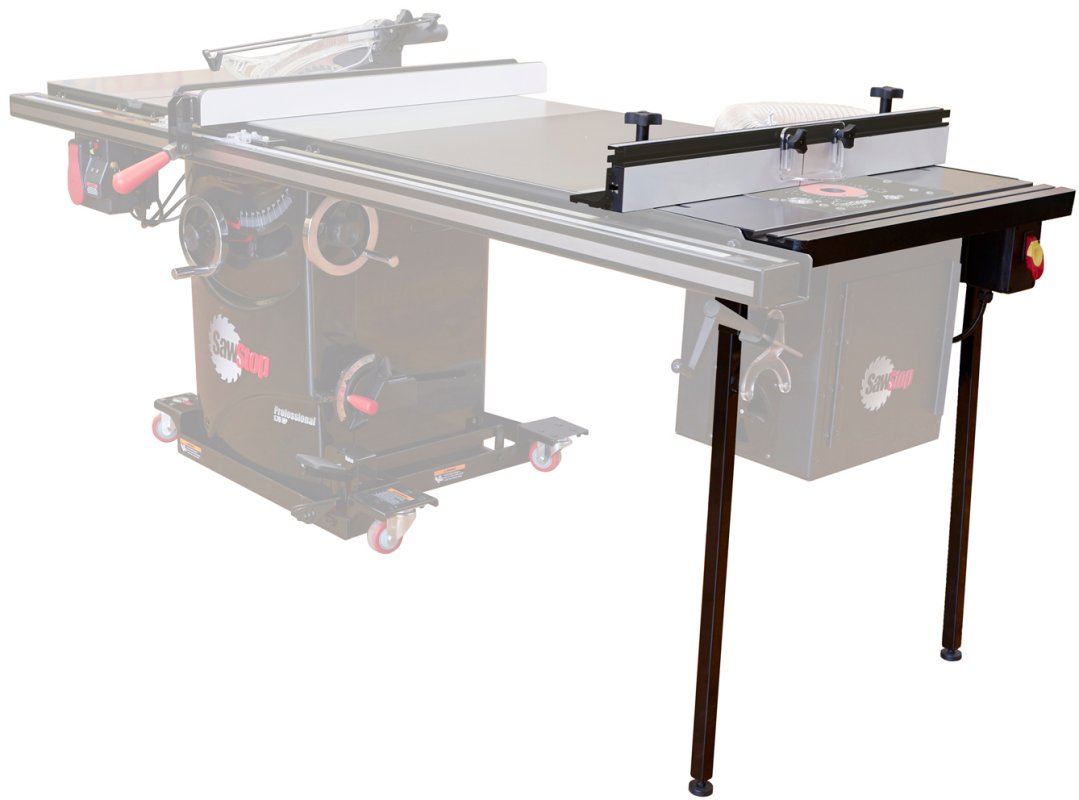

The CNS & PCS use SawStop's 27" In-Line Router Table Attachment. It mounts in between the fence rails of your saw. On the PCS, it can be mounted on either the right- or left-hand side of the saw. On the CNS, it can only be mounted on the left-hand side of the saw. There are a number of model-specific requirements for mounting the In-Line Router table on your saw. See the details below.

CNS In-Line Router Table Requirements

• The CNS must have cast iron wings .
• The CNS cannot have a mobile base or mobile cart .
• The CNS cannot have a Sliding Table Attachment .
• The In-Line Router Table Attachment must mount on the left hand side.

PCS In-Line Router Table Requirements

• The In-Line Router Table Attachment cannot be mounted on the left if the saw has a Sliding Table Attachment
• The In-Line Router Table Attachment cannot be mounted on the right if the saw has a Floating Dust Collection Guard
• For right mount of the In-Line Router Table Attachment, the PCS must have a T-Glide 2 Fence with Router Table Ready Rails .
• The In-Line Router Table Attachment can only be mounted on the left of a 30" Premium Fence equipped saw.
• The PCS cannot have an Integrated Mobile Base . (Only the Industrial Mobile Base is robust enough to carry the extra weight.)
• If the In-Line Router Table Attachment is mounted on the right side of the saw, you will require an Intermediate Table to close the gap between the saw table top and the router table top.

Specifications

• Cast Iron Table: 27" x 16"
• Router Plate Opening: 11.75" x 9.25"
• Max Fence Travel: 5.5"
• Front T-slot to Arbor Center: 6.5"
• Width of Front T-slot: 1"
• Rear T-slot to Arbor Center: 5"
• Width of Rear T-slot: 0.5"
• Fence Length: 30.75"
• Fence Height: 3.5"
• Fence Depth: 4"

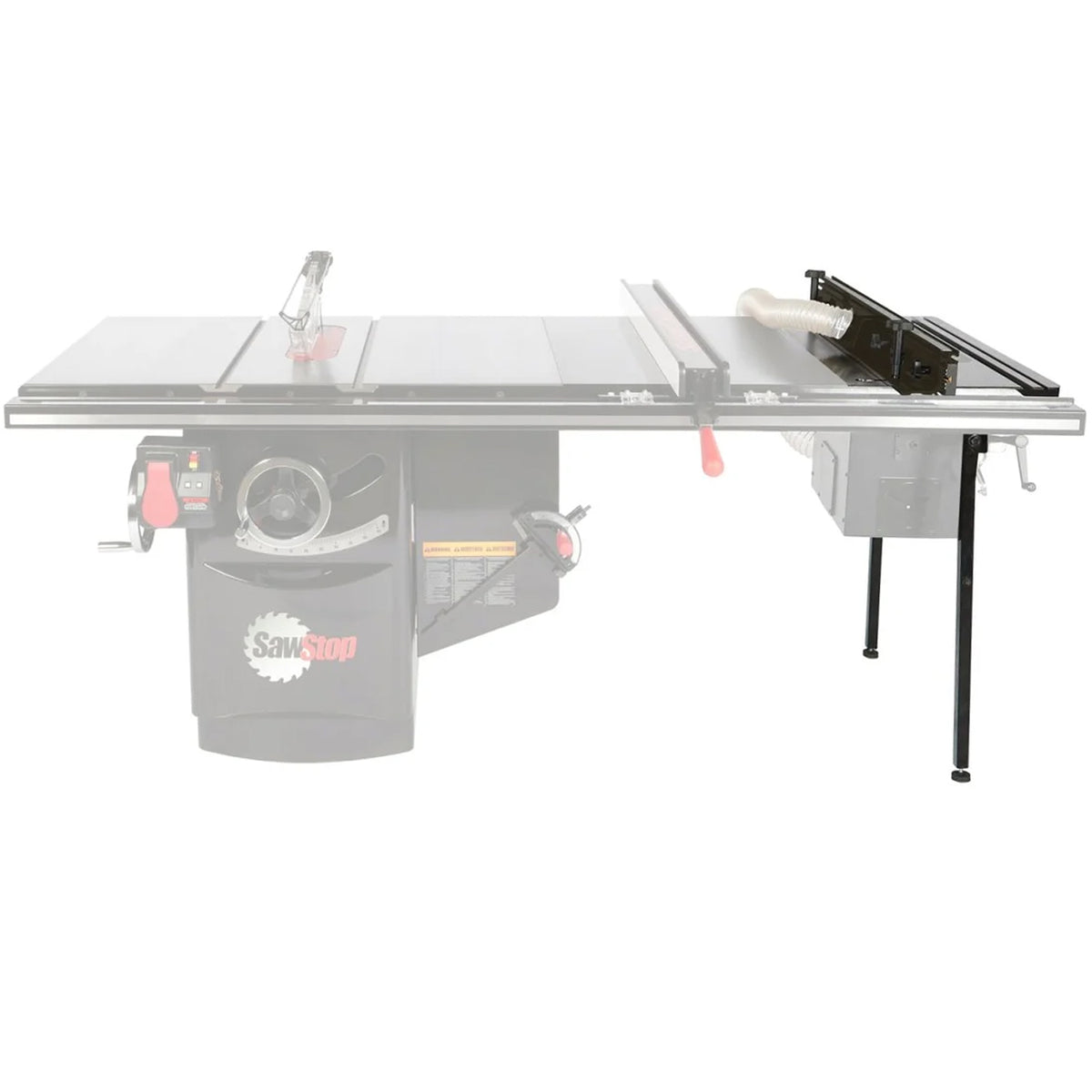

Industrial Cabinet Saw (ICS)

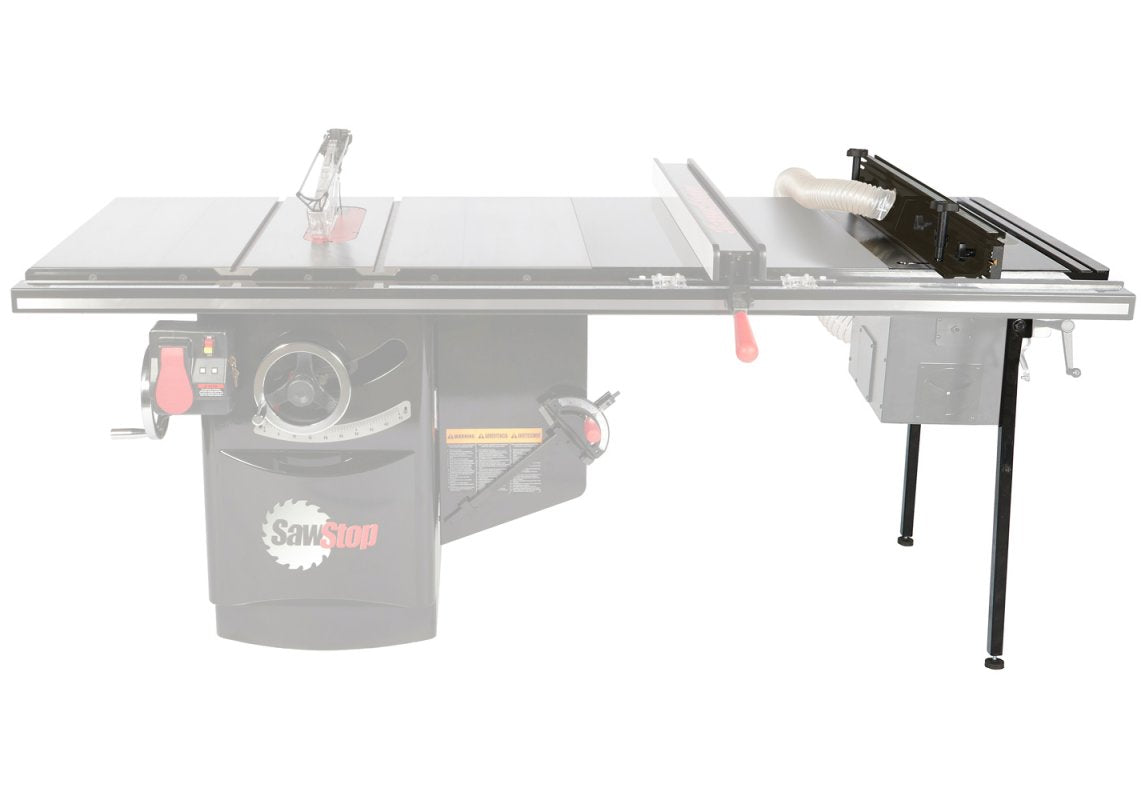

The ICS uses SawStop's 30" In-Line Router Table Attachment. It can be mounted on either the right- or left-hand side of the saw. There are a number of model-specific requirements for mounting the In-Line Router table on your saw. See the details below.

ICS In-Line Router Table Requirements

• The In-Line Router Table Attachment cannot be mounted on the left if the saw has a Sliding Table Attachment
• The In-Line Router Table Attachment cannot be mounted on the right if the saw has a Floating Dust Collection Guard
• For right mount of the In-Line Router Table Attachment, the PCS must have an Industrial Fence with Router Table Ready Rails .
• If the In-Line Router Table Attachment is mounted on the right side of the saw, you will require an Intermediate Table to close the gap between the saw table top and the router table top. You will have to supply this! SawStop does not sell or provide instructions for the construction of the Intermediate Table for the ICS table saw with the router table.

Specifications

• Cast Iron Table: 30" x 16"
• Router Plate Opening: 11.75" x 9.25"
• Max Fence Travel: 5.5"
• Front T-slot to Arbor Center: 6.5"
• Width of Front T-slot: 1"
• Rear T-slot to Arbor Center: 5"
• Width of Rear T-slot: 0.5"
• Fence Length: 35.75"
• Fence Height: 3.5"
• Fence Depth: 4"

NOTE: SawStop's router tables DO NOT incorporate flesh-sensing safety technology. Be sure to read and follow safety instructions in the owner's manual for your router and use all standard shop safety precautions.

Additional Information

Are your SawStop tablesaw rails Router Table Ready?
