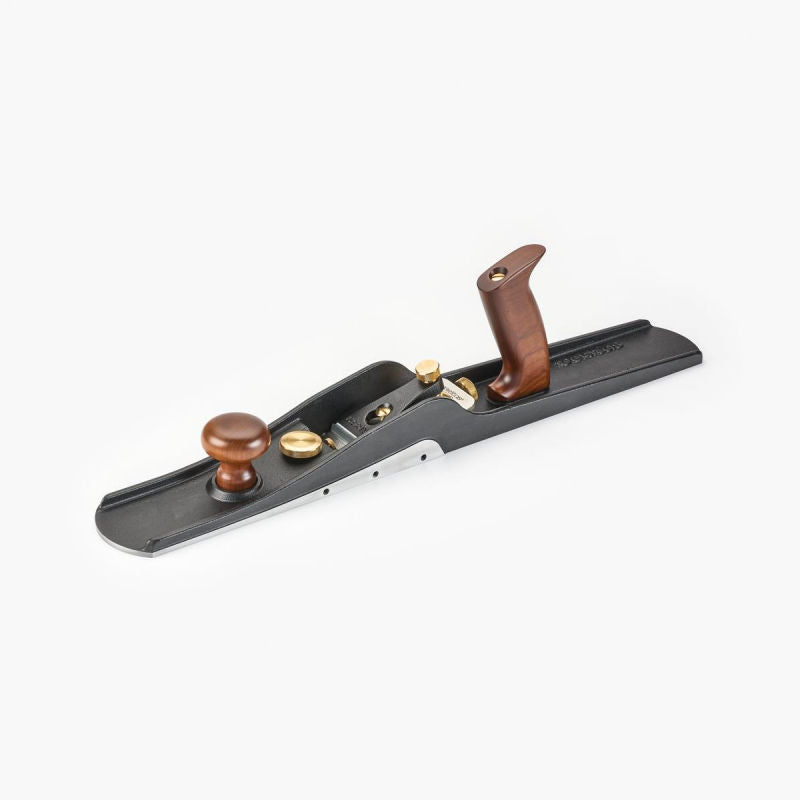

Veritas Bevel-up Jointer Plane
The Low Angle jointer is the largest member of the Veritas bevel-up bench plane family. At 22" x 2-7/8" and weighing 7 lb 8 oz, it is ideal for jointing edges and flattening large panels.
The body is fully stress-relieved ductile cast iron, with a sole that is flat and square to the sides. An adjustable throat plate allows a wide range of mouth adjustment. The unique stop-screw retains mouth settings while preventing blade damage when removing and replacing blades.
The bevel-up blade configuration results in a plane that is versatile and straightforward to use. The 12° bed angle, coupled with the 25° blade bevel, creates an effective cutting angle of 37°. Simply increasing the blade bevel results in higher cutting angles for improved performance in more difficult-grained woods.
Includes a lapped 3/16" (0.187") thick blade, 2-1/4" wide, in PM-V11 tool steel.
Made in Canada.
Specifications
- Stress-relieved, ductile Cast Iron Body
- 22" long x 2-7/8" wide
- Norris-type adjuster mechanism
- Adjustable mouth
- Hardwood tote and knob
- 12° bed angle
- 2-1/4" wide x 3/16" thick blade with 25° bevel
- PM-V11 blade
- 7-1/2 lbs
PM-V11 Steel
All of the Veritas bench, block and shoulder planes that we stock have PM-V11 steel blades. Veritas conducted extensive testing and determined that PM-V11 offers the best balance of hardness, edge retention and ease of sharpening in tool steels. It hones to a very fine edge and can easily be sharpened with commonly available sharpening abrasives.
From Veritas
PM-V11 is a powdered metal (PM) alloy. To form a PM alloy, constituent metals are melted and mixed together, then atomized, creating very small particles that cool and harden, forming a powder. This powder is screened to ensure consistent particle size, and then heated under pressure to form a billet. The billet is then rolled to the required thickness, ready to process as a conventionally smelted steel would be. The PM process yields a steel with a very fine grain structure that is uniform throughout.
