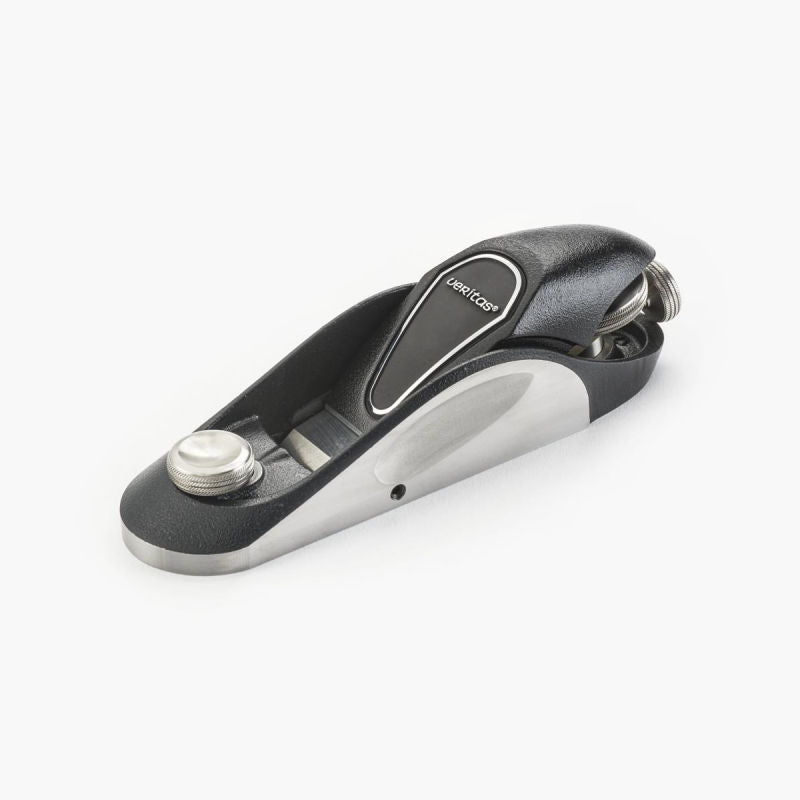

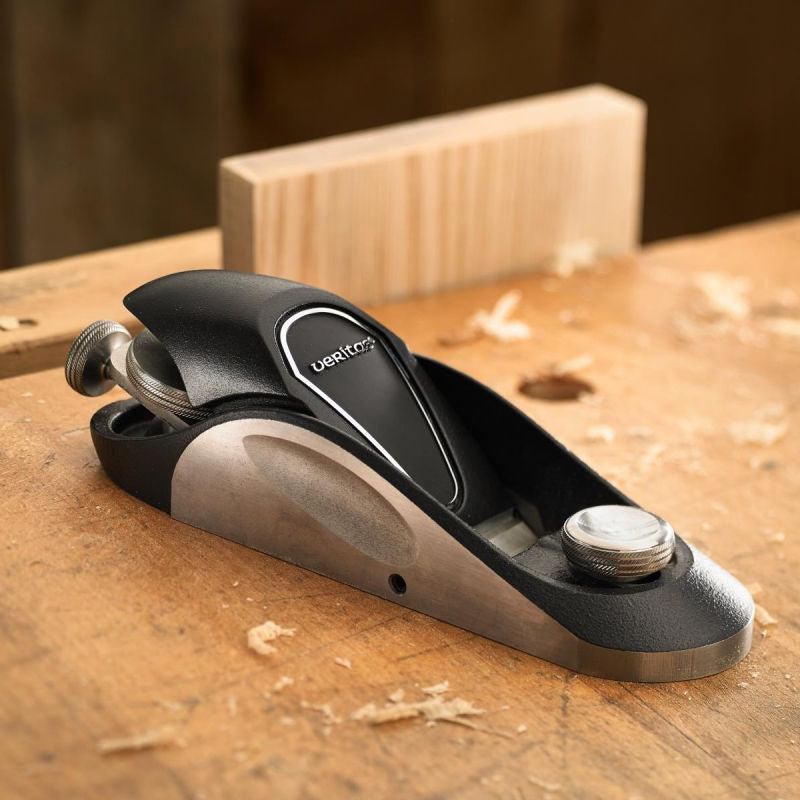

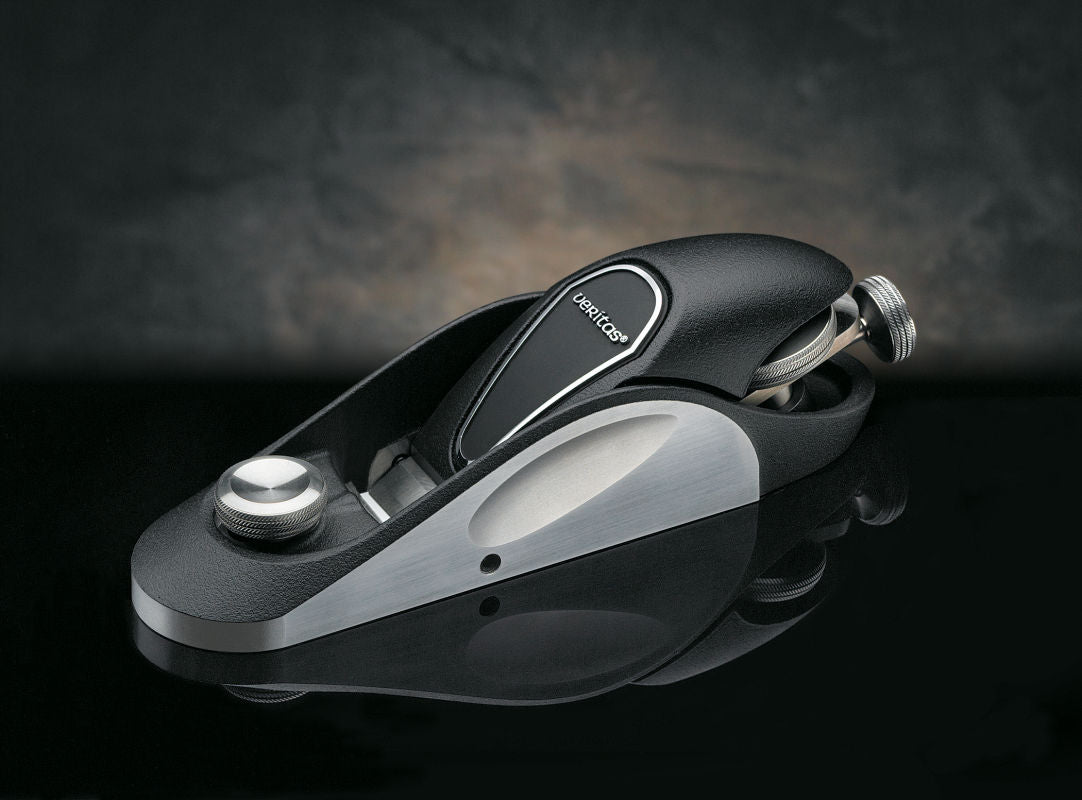

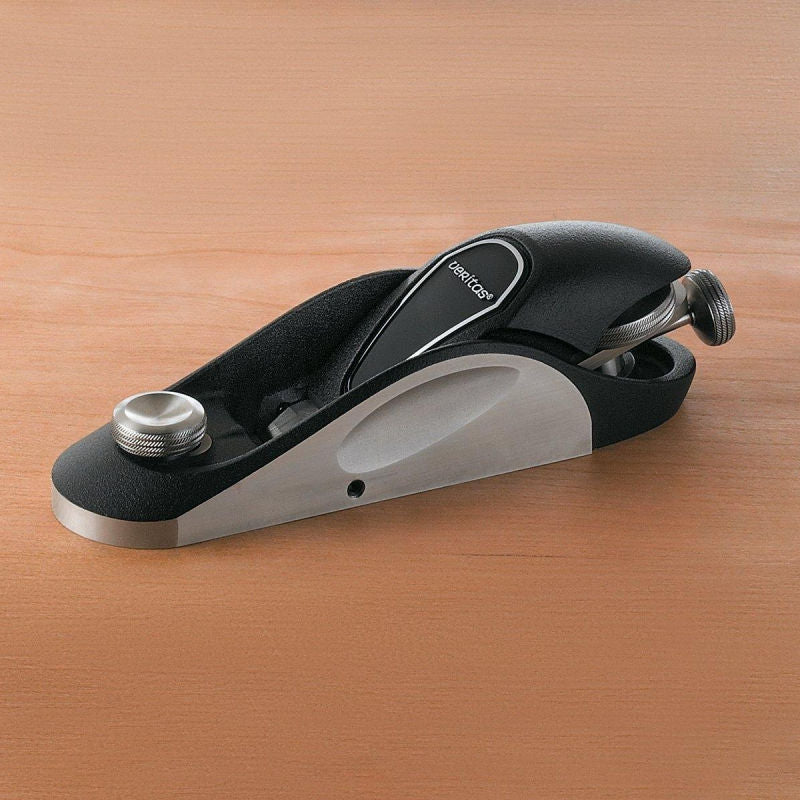

Veritas DX60 Block Plane
Made to exacting standards with refined stainless-steel hardware, this is one of the finest Veritas block planes.
The knobs and wheels have elegant elliptical knurled edges for a firm grip. The lever cap has been extensively redesigned to integrate cleanly with the plane body and provide an almost continuous hand-contact surface, with tactile cues for finger placement. The Norris-type adjuster mechanism combines feed and lateral adjustments, making blade setting accurate and easy. Close manufacturing tolerances reduce backlash to no more than 1/4 turn. The adjuster is locked to the body, and will not become inadvertently unseated.
Mouth adjustment is effected by loosening the stainless-steel locking knob. An unobtrusive set screw in the throat of the plane allows repeatable mouth positioning while at the same time preventing the moveable toe from contacting the blade. The toe is completely enclosed by the body casting.
Made from ductile iron, the contoured body is 6-5/8" long by 1-3/4" wide with a 12° bed angle, and is finished with a durable powder-coat polymer paint. It is machined and surface ground to half our normal flatness and surface finish specifications; the sole and sides are flat and square to within +0.000" and -0.0015" over the entire surface. It comes with a 9/64" (0.14") thick by 1-3/8" wide blade with a 25° primary bevel in PM-V11 tool steel. The back of the blade is lapped flat within ±0.0002" (two-tenths of a thousandth of an inch) in the working area of the blade. The lever cap is die cast.
Made in Canada.
Specifications
- Ductile Cast Iron Body
- 6-5/8" long x 1-3/4" wide
- 28 ounces
- Sole & sides are flat and square to within +0.000" and -0.0015" over entire surface
- Norris-type adjuster mechanism
- Stainless steel knobs
- 12° bed angle
- 1-3/8" wide x 0.140" (9/64") thick blade with 23° primary and 25° secondary bevels
- PM-V11 blade
PM-V11 Steel
All of the Veritas bench, block and shoulder planes that we stock have PM-V11 steel blades. Veritas conducted extensive testing and determined that PM-V11 offers the best balance of hardness, edge retention and ease of sharpening in tool steels. It hones to a very fine edge and can easily be sharpened with commonly available sharpening abrasives.
From Veritas
PM-V11 is a powdered metal (PM) alloy. To form a PM alloy, constituent metals are melted and mixed together, then atomized, creating very small particles that cool and harden, forming a powder. This powder is screened to ensure consistent particle size, and then heated under pressure to form a billet. The billet is then rolled to the required thickness, ready to process as a conventionally smelted steel would be. The PM process yields a steel with a very fine grain structure that is uniform throughout.
